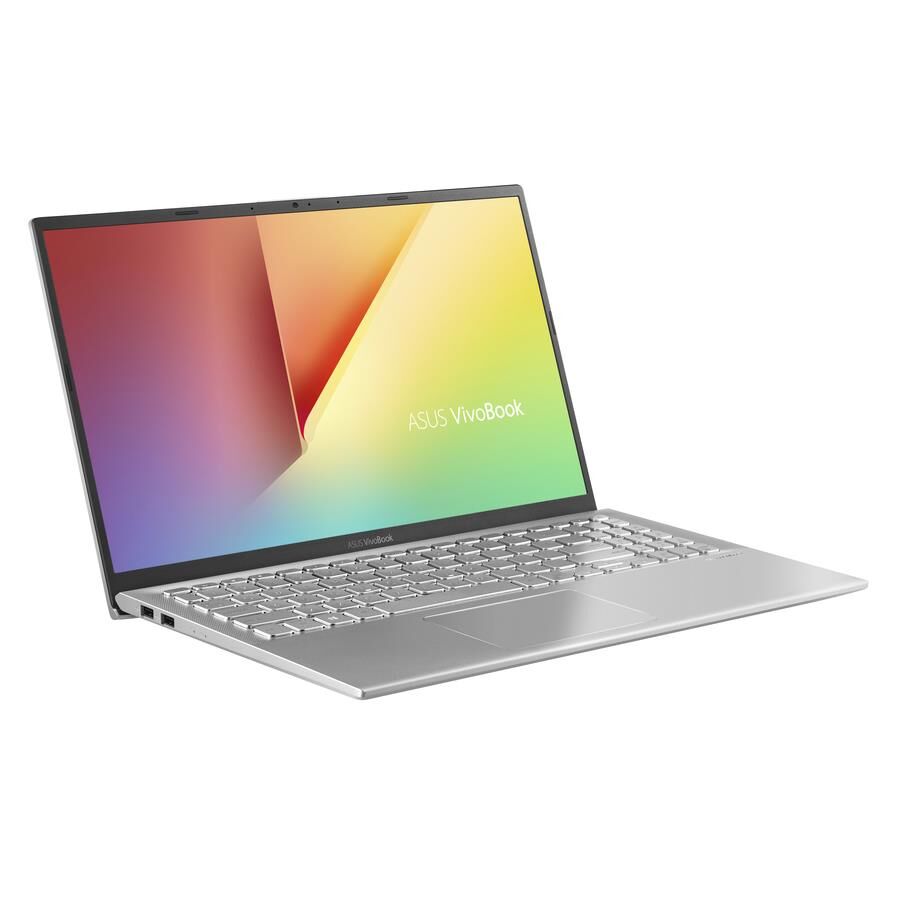

ASUS Vivobook S512FA-BR1604T RAM upgrade specifications

ASUS Vivobook S15 S512FA-BR1604T RAM upgrade specifications include one SO-DIMM slot compatible with DDR4-SDRAM memory operating at 2400 MHz. The laptop features on-board memory combined with expandable SO-DIMM capacity, supporting maximum RAM configuration of 12 GB. Upgrade specifications indicate DDR4-SDRAM modules are compatible for memory expansion through the available slot.

Additional Notes

• The ASUS Vivobook S512FA-BR1604T features 4 GB of soldered memory, which cannot be removed or replaced without specialized equipment and techniques that void manufacturer warranty.
• The single SO-DIMM slot accepts a maximum 8 GB module to reach the 12 GB system ceiling, preventing dual-channel operation across the full memory capacity.
• Memory operates in asymmetric dual-channel mode (also called flex mode) only for the first 8 GB, with any capacity above that threshold running in slower single-channel mode.
• The 2400 MHz specification operates at PC4-19200 bandwidth, delivering 19.2 GB/s theoretical throughput per channel when dual-channel operation is active.
• Installing modules rated above 2400 MHz will result in automatic downclocking to match the system's maximum supported frequency, negating any speed advantage of higher-rated RAM.
• The SO-DIMM form factor measures 67.6 mm in length, while standard DIMM modules (used in desktop systems) are physically incompatible with this laptop's memory slot.
• DDR3 and DDR5 modules are electrically incompatible due to different notch positions and voltage requirements, making only DDR4-type SO-DIMMs viable for this system.
• The onboard memory configuration eliminates one failure point but prevents complete memory replacement if the soldered chips develop defects.
• Systems with mixed memory capacities (4 GB onboard plus 8 GB module) may experience minor latency penalties during transitions between dual-channel and single-channel memory regions.
• Warranty-safe access to the SO-DIMM slot typically requires bottom panel removal, though specific disassembly steps vary by chassis revision.
