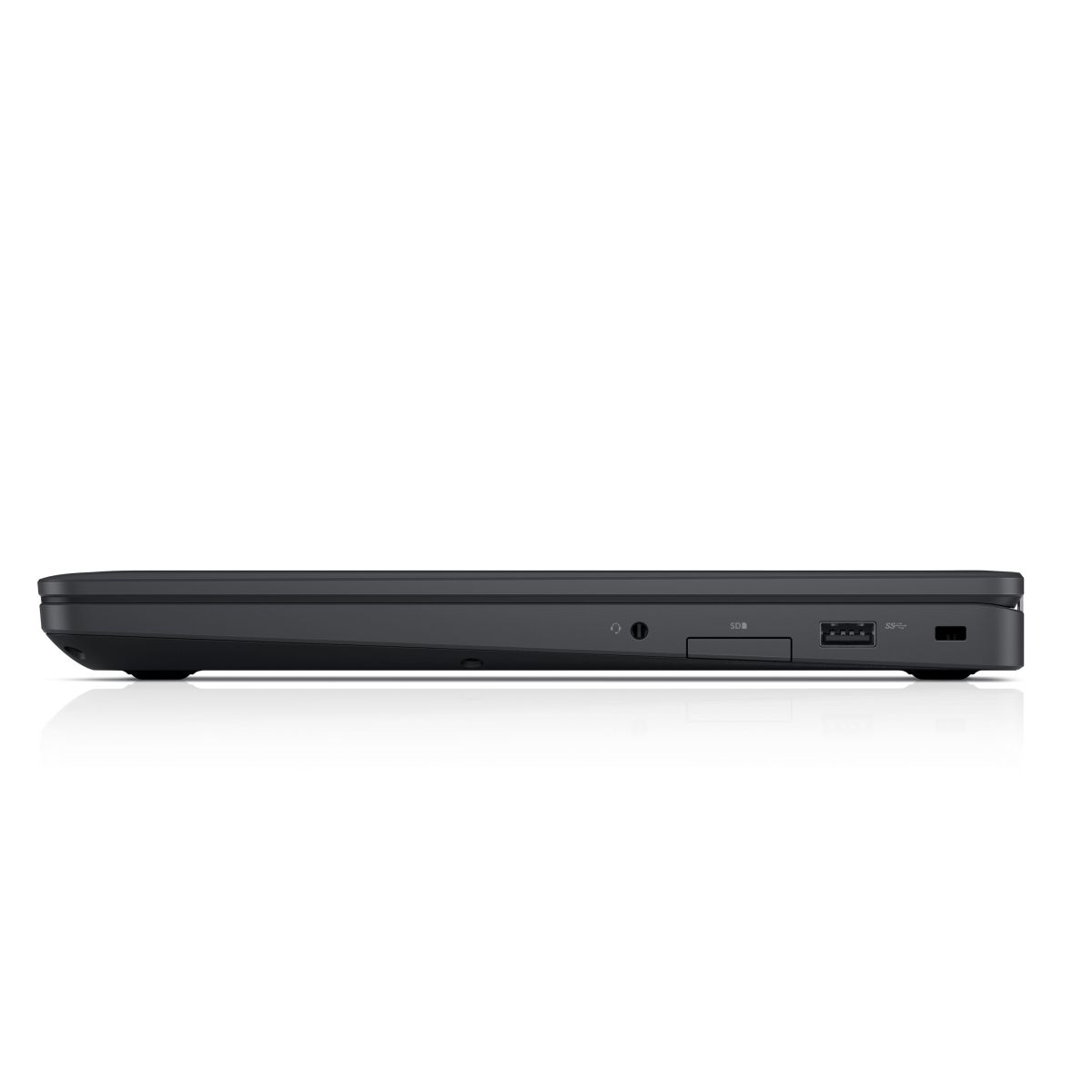

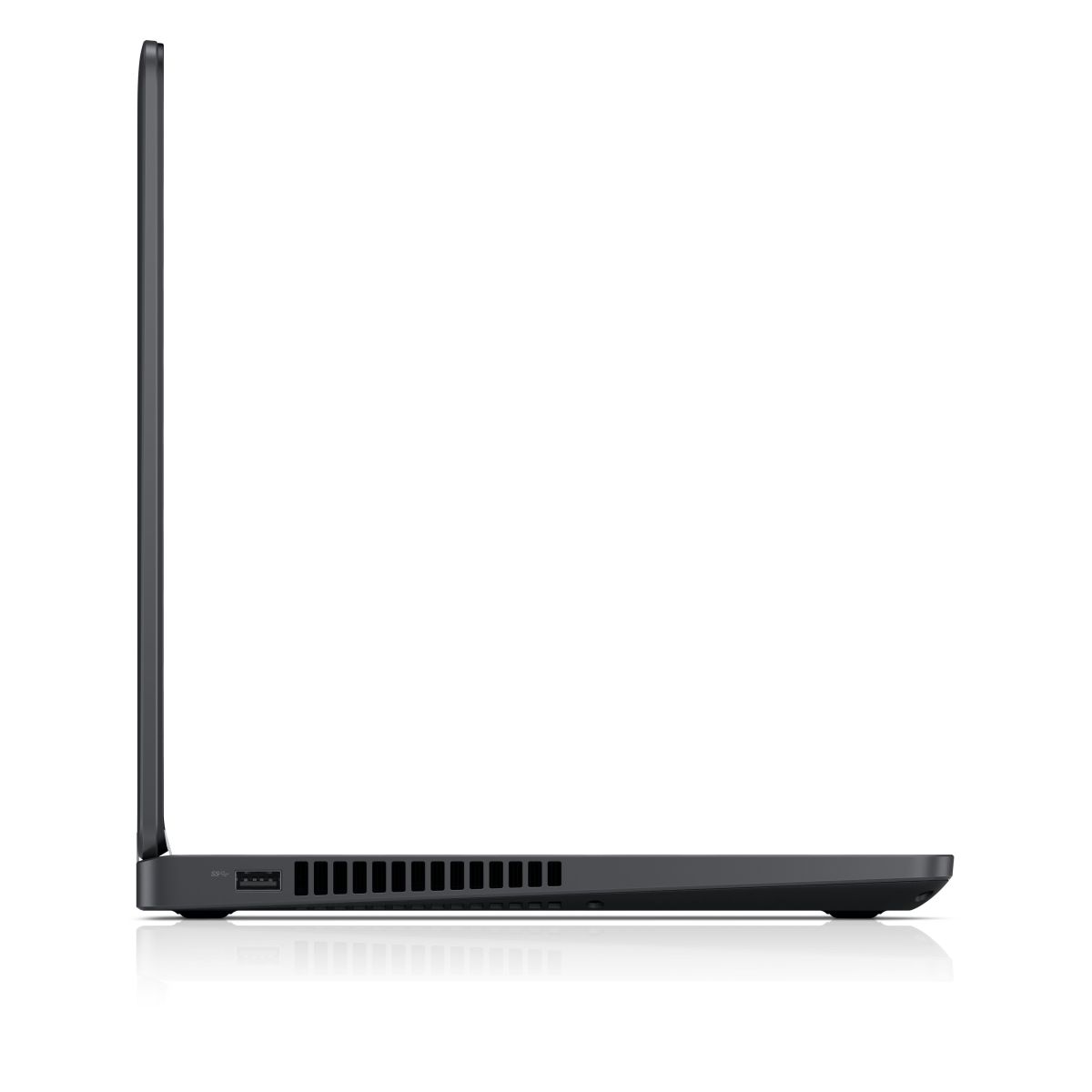

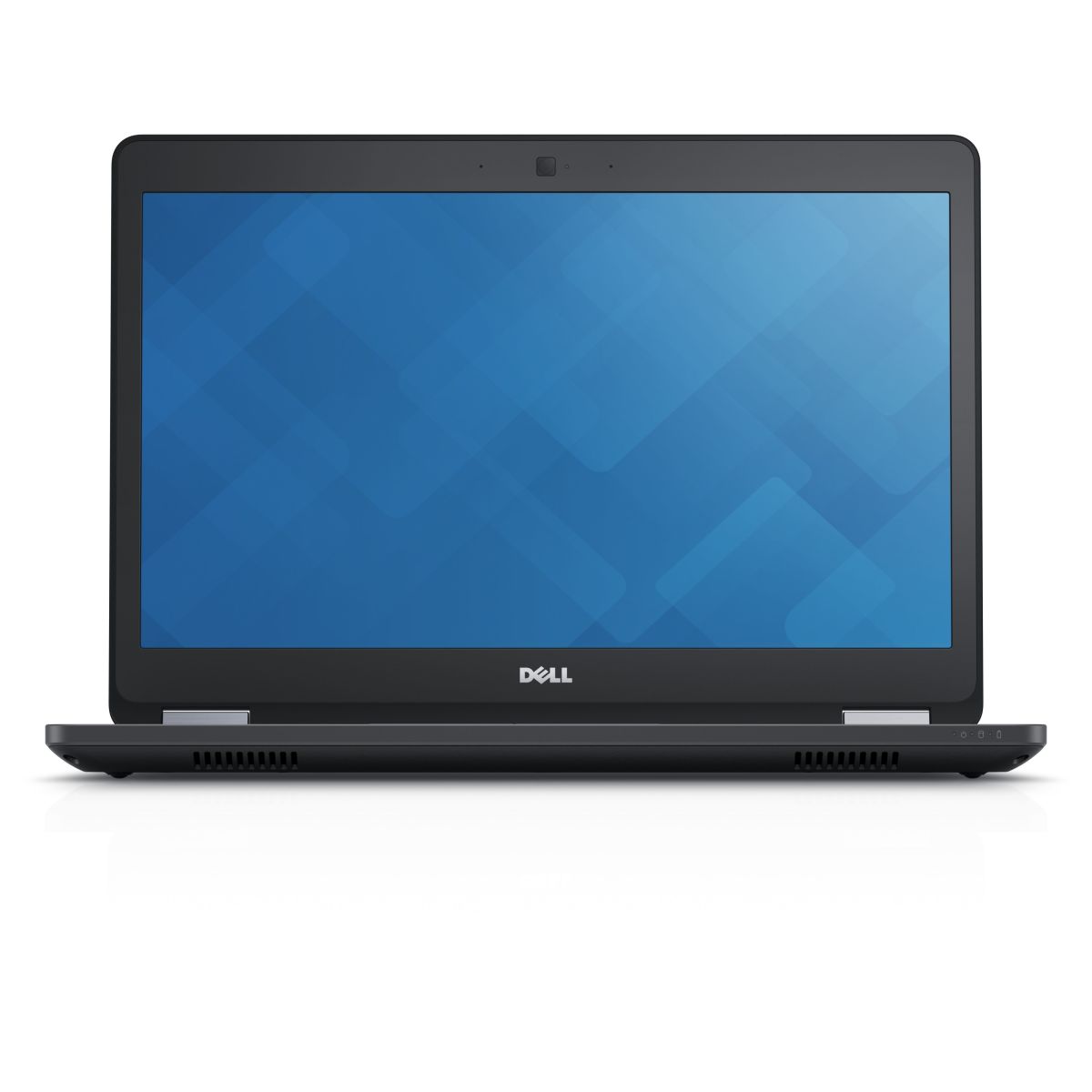

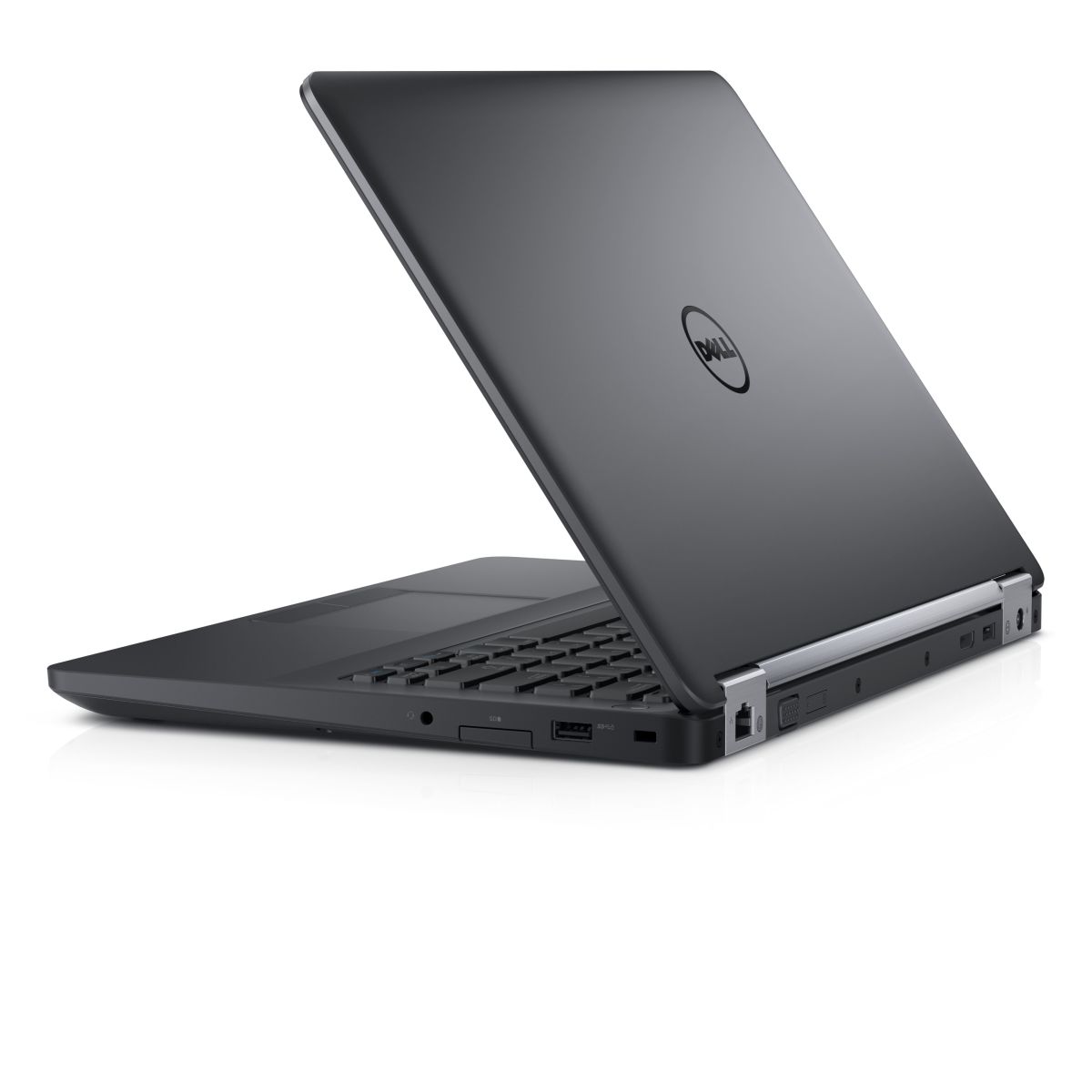

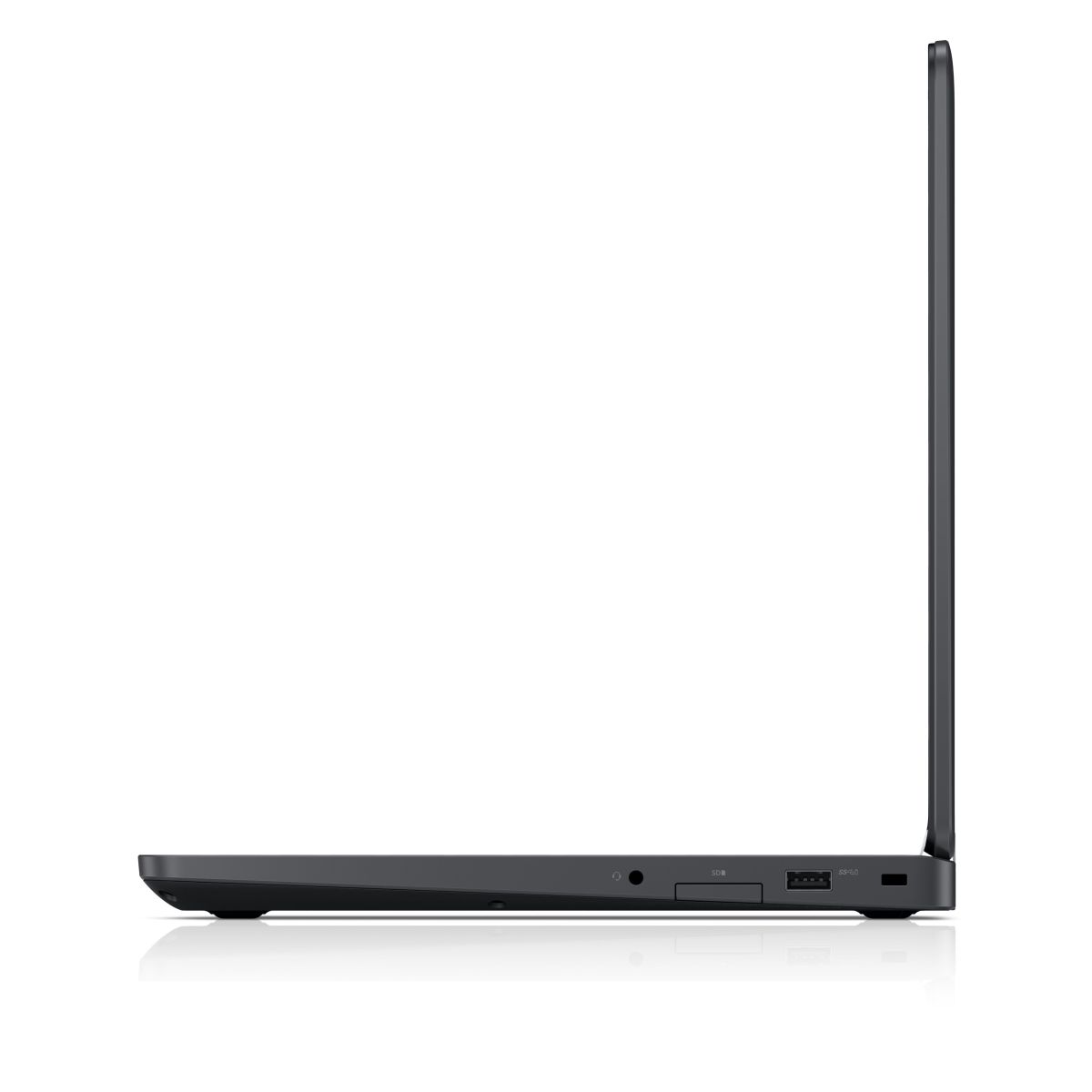

DELL Latitude E5470 RAM upgrade specifications

DELL Latitude 5000 Series E5470 laptop accommodates DDR4-SDRAM memory upgrades through 2x SO-DIMM slots. Maximum supported RAM capacity reaches 16 GB total. Memory operates at 2133 MHz frequency. Compatible memory modules feature SO-DIMM form factor specifications. Upgrade configurations available for enhanced multitasking and application performance on the E5470 model.

Additional Notes

• Dual channel mode is only achieved when 2 matched modules are installed, effectively doubling the peak memory bandwidth compared to 1 single stick configurations.
• The 2133 MHz frequency ceiling functions as a hardware throttle, meaning higher rated modules like 2400 MHz or 3200 MHz will downclock to match the system bus speed.
• The 16 GB maximum capacity dictates a per slot limit of 8 GB, rendering 16 GB single modules incompatible with the bios and chipset.
• SODIMM architecture necessitates non ECC unbuffered modules, as the Latitude 5000 mobile chipset lacks parity bit support for server grade memory.
• The presence of 2 dedicated slots allows for symmetrical memory pairing, which minimizes latency compared to systems using 1 soldered bank and 1 expansion slot.
• Accessing the memory slots requires removal of the entire base chassis cover, as this specific Latitude generation lacks a dedicated quick access hatch for components.
• The chipset voltage requirements for 2133 MHz DDR4 are strictly 1.2V, which prevents the usage of older 1.35V or 1.5V DDR3L modules despite physical similarities in socket layout.
• Upgrading to the 16 GB limit provides the necessary overhead for hardware virtualization (Hyper V) and multi thread heavy browser workloads that exceed the base 4 GB or 8 GB factory configurations.
