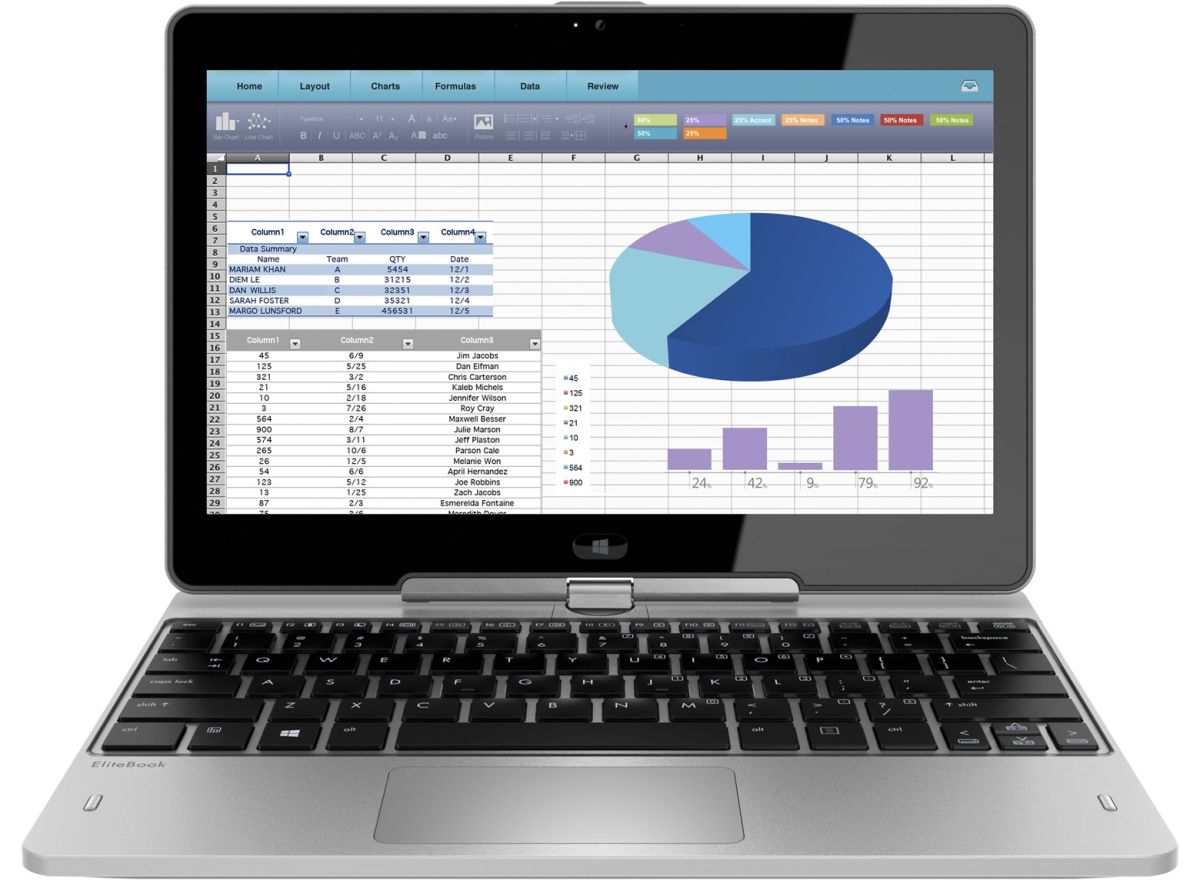

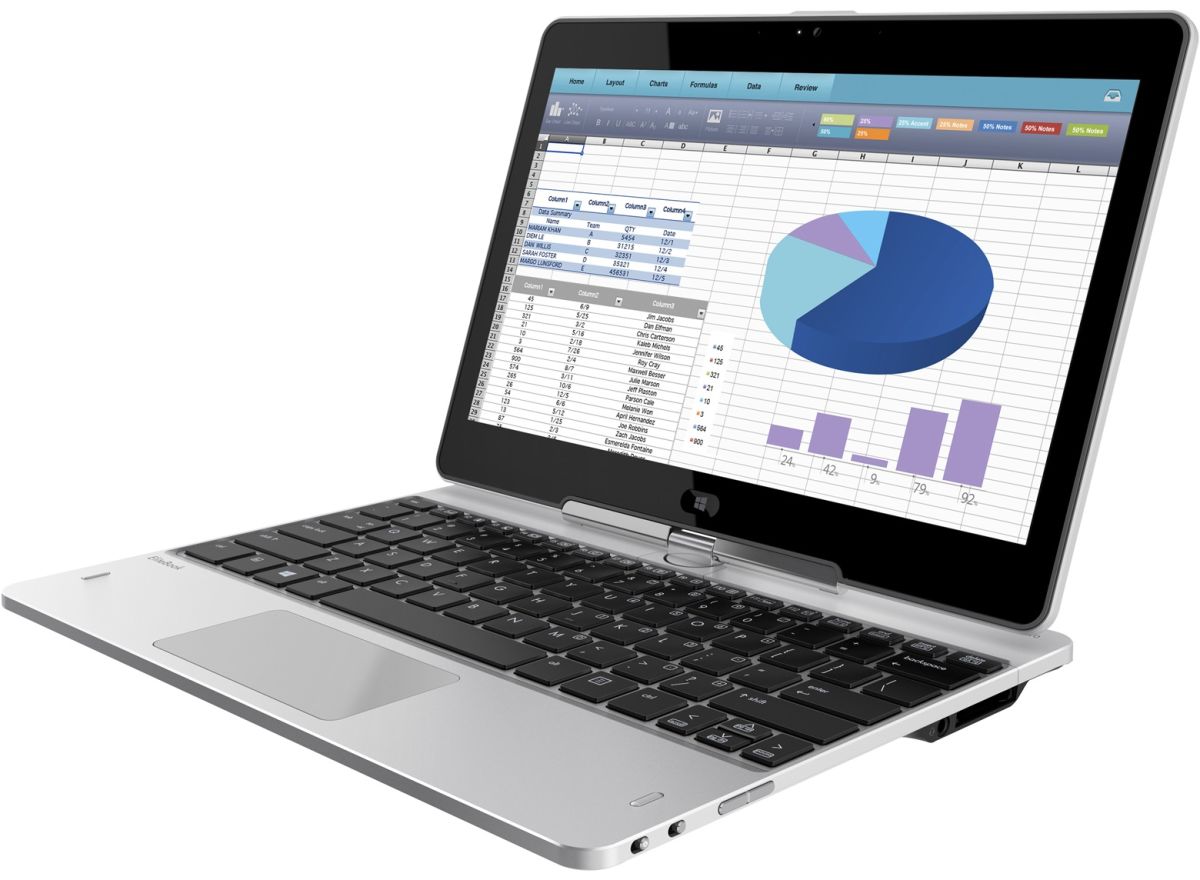

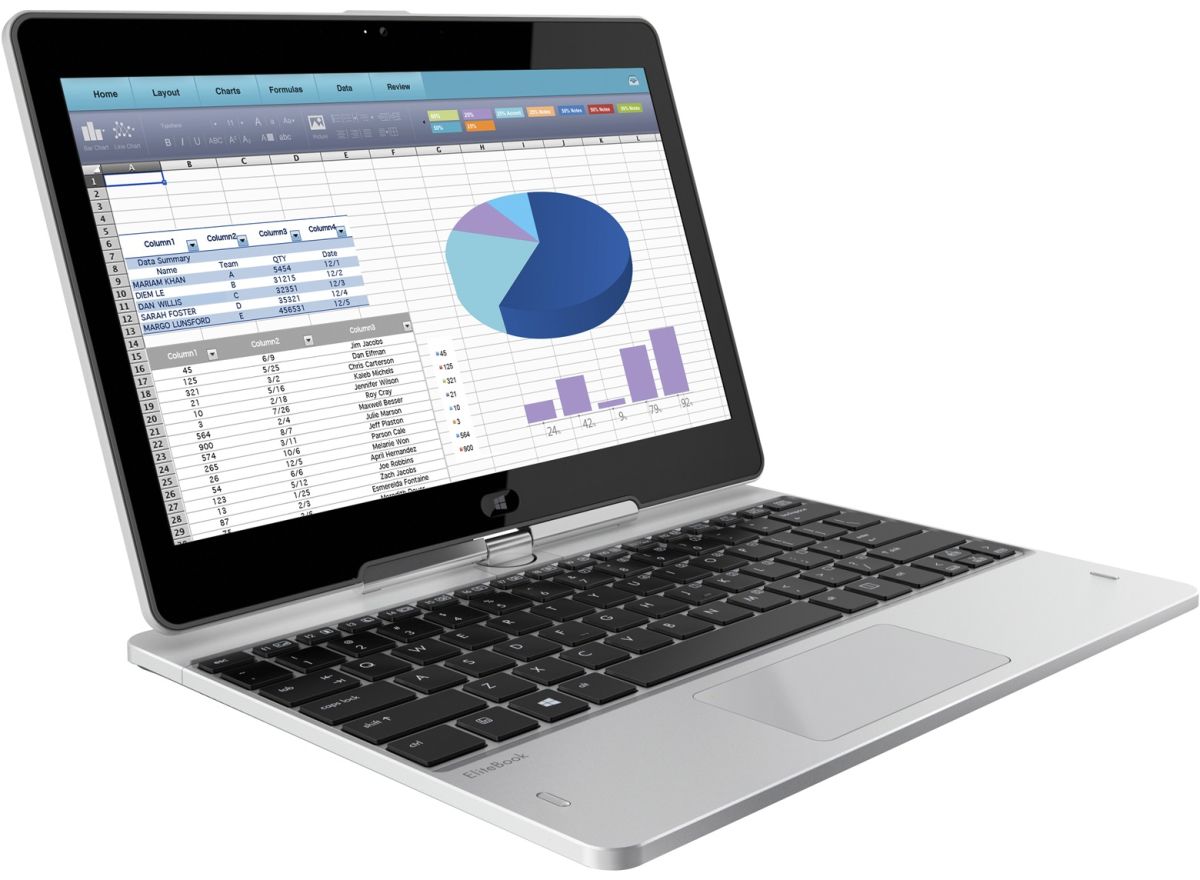

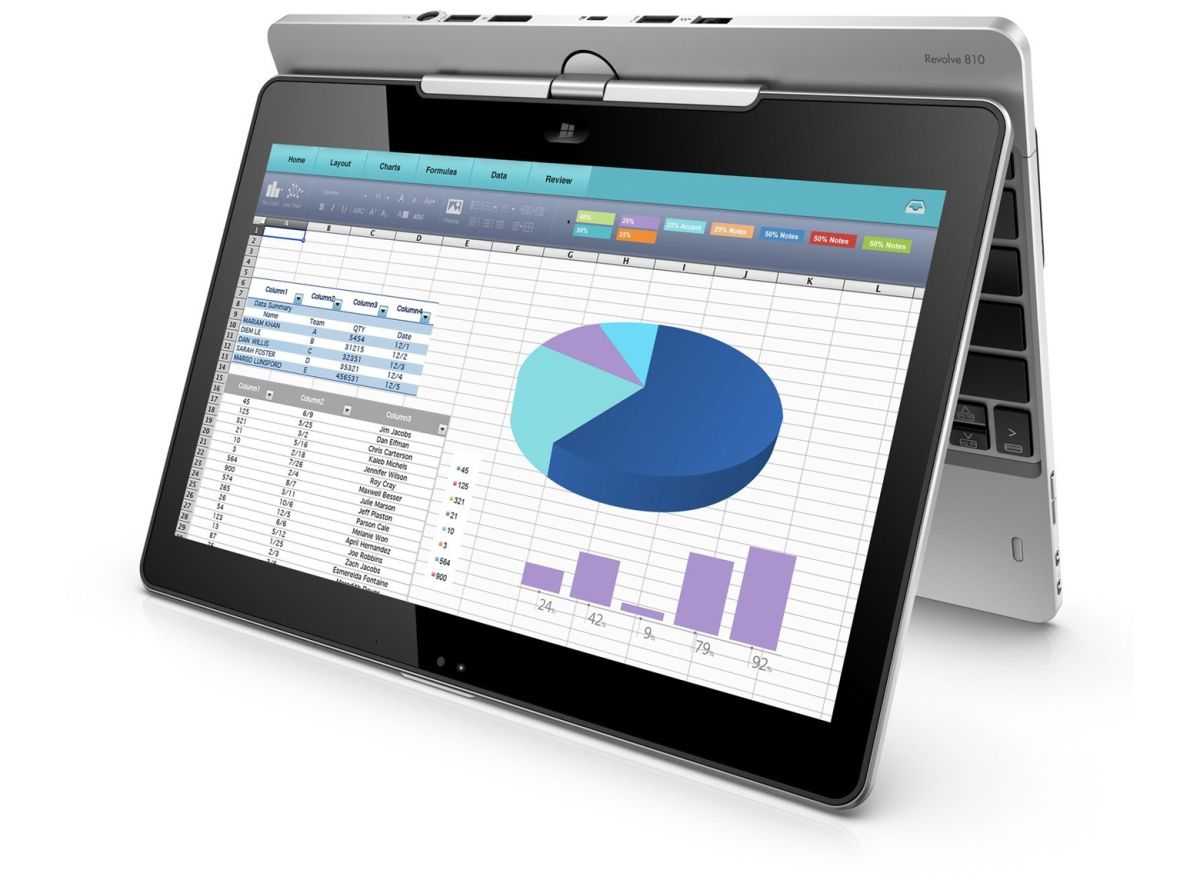

HP Elitebook Revolve 810 G3 RAM upgrade specifications
The HP Elitebook Revolve 810 G3 supports DDR3L-SDRAM memory upgrades with maximum RAM capacity of 12 GB. The laptop features 1 SO-DIMM slot for memory expansion, operating at 1600 MHz frequency. Compatible upgrades utilize DDR3L-SDRAM specifications. Memory configuration includes on-board RAM plus one SO-DIMM slot for maximum compatibility and performance specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR3L-SDRAM |
| Frequency | 1600 MHz |
| Maximum RAM | 12 GB |
| Voltage | 1.35V (Low Voltage) |
| Number of pins | 204-pin |
| Interface | PC3L |
| PC Speed Rating | PC3L-1600 (PC3L-12800) |
| Bandwidth | 12.8 GB/s |
| Laptop Release date | 02 May 2017 |
Additional Notes
- The presence of 4 GB of non-removable memory soldered to the motherboard dictates that total capacity increases rely entirely on a single expansion slot.
- Dual-channel memory performance is restricted to the capacity where the expansion module matches the integrated memory size, with any excess capacity operating in single-channel mode.
- The HP Elitebook Revolve 810 G3 requires low-voltage 1.35V modules to ensure system stability and prevent hardware damage since standard 1.5V DDR3 modules are electrically incompatible.
- Achieving the maximum supported volume necessitates the installation of one 8 GB module to complement the existing 4 GB soldered base.
- Physical access to the internal slot requires the removal of the bottom chassis plate, which may involve delicate plastic clips prone to fatigue during repeated maintenance.
- Data transfer rates are capped by the integrated controller 1600 MHz limit, meaning higher-rated modules will automatically downclock to synchronize with the soldered memory speed.
- Latency timings on the replacement module must align with the primary soldered chips to avoid boot failures or intermittent system crashes.
