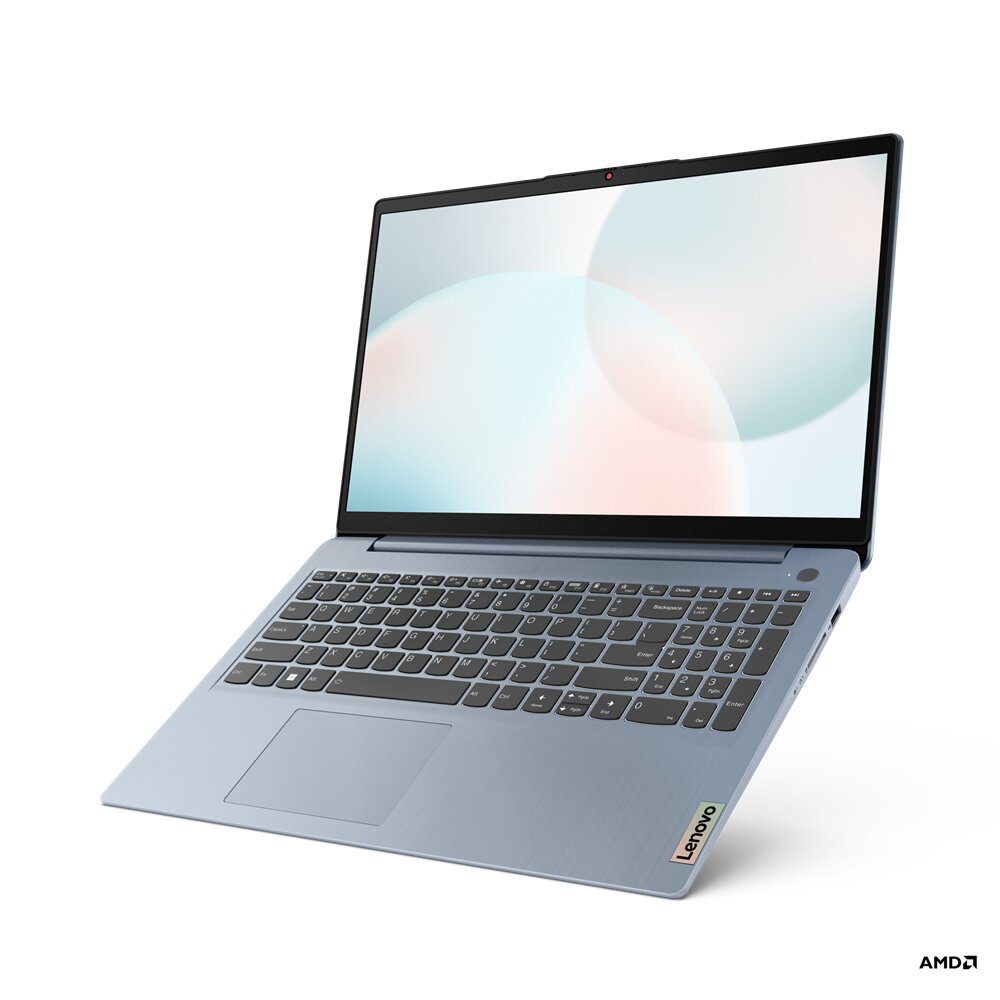

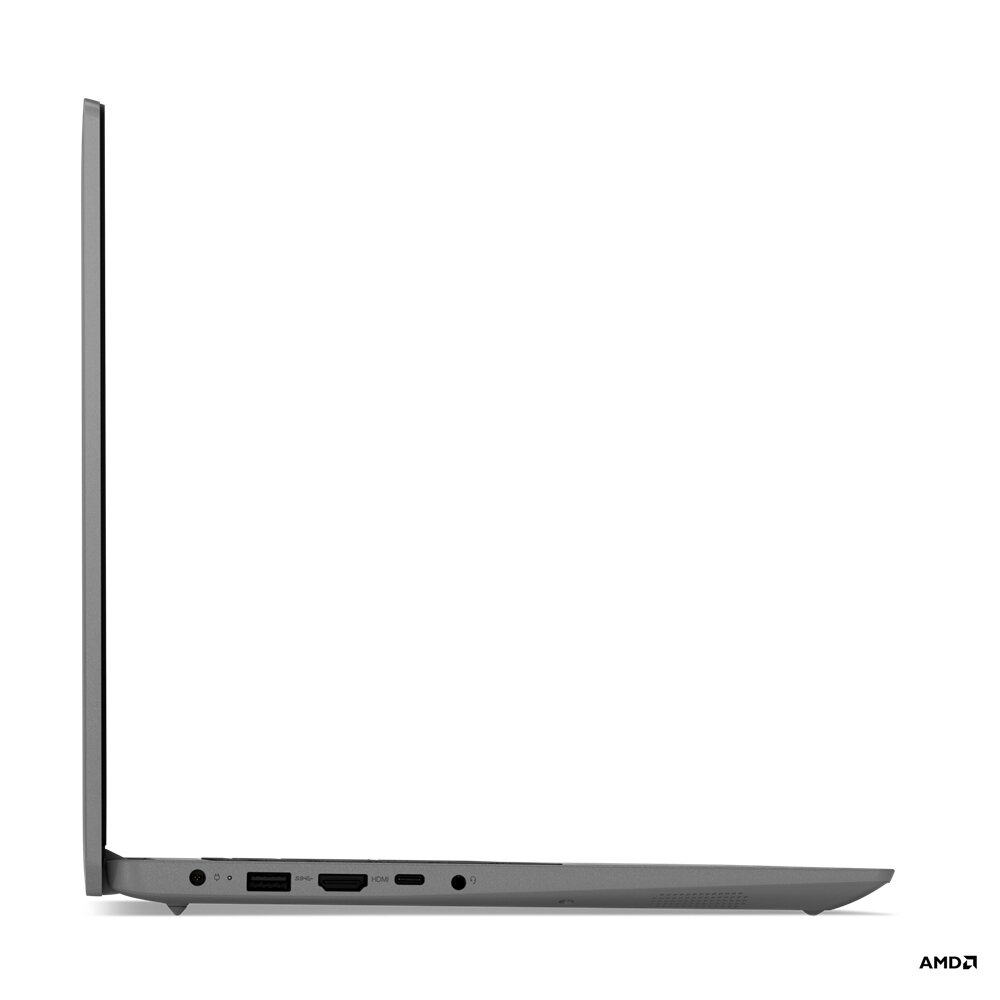

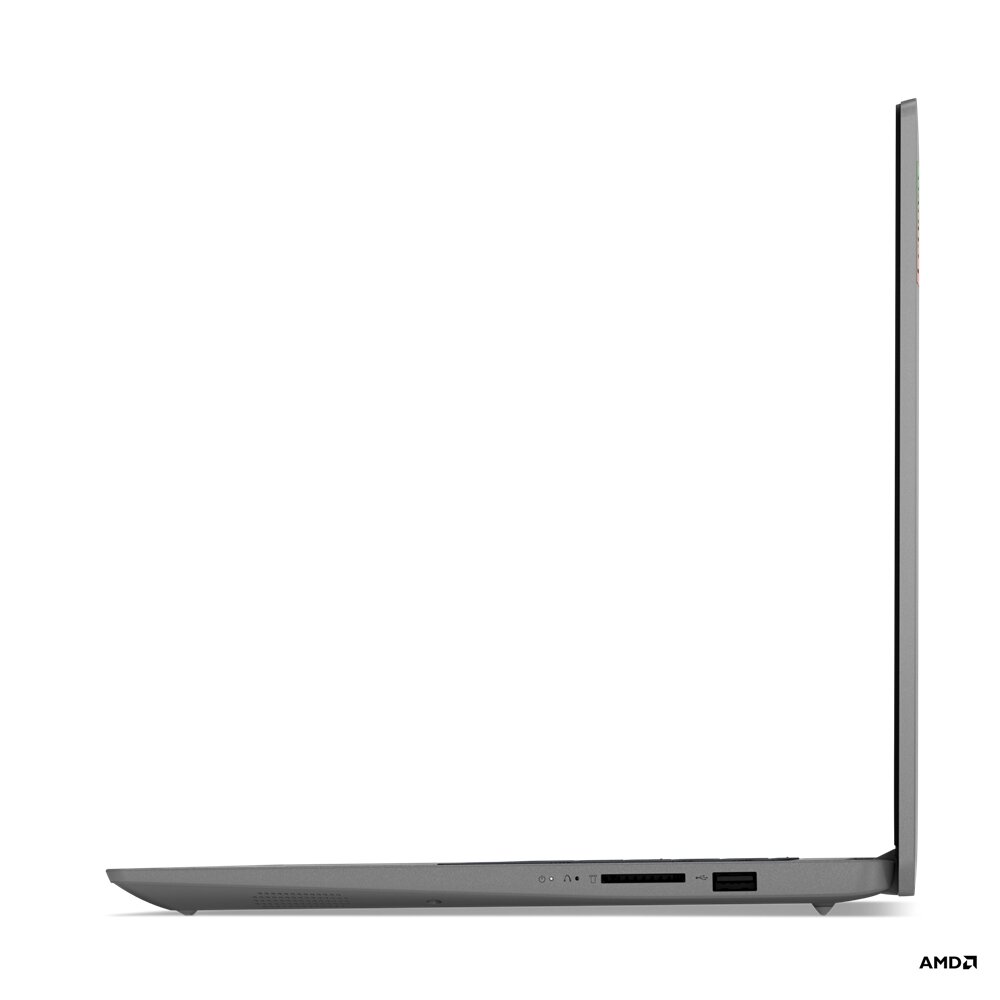

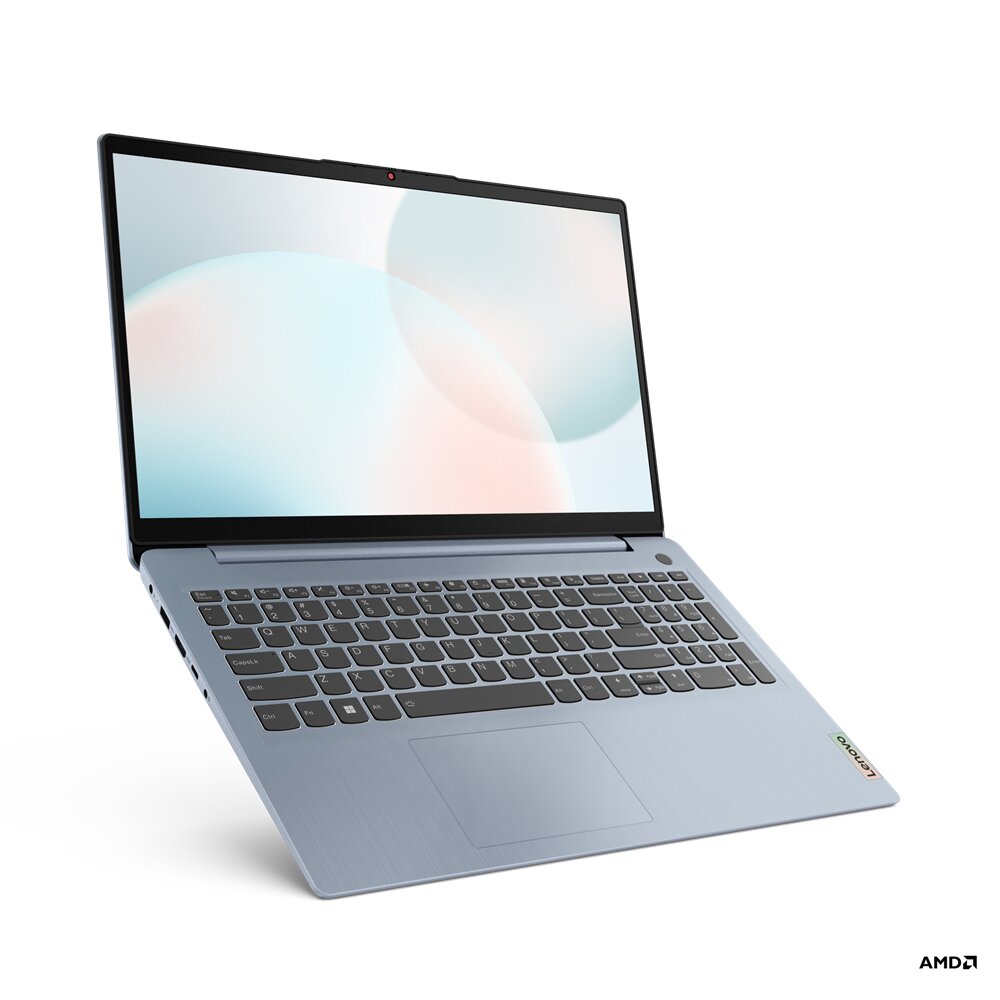

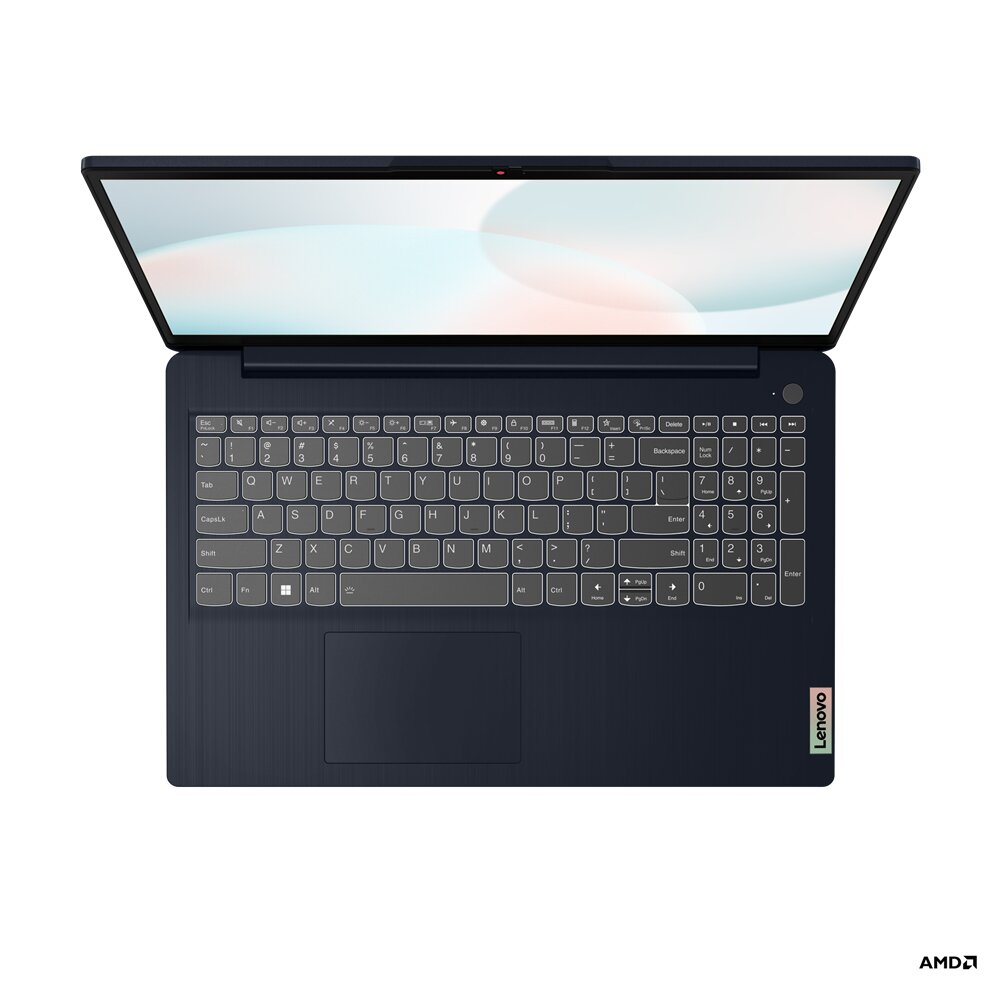

LENOVO IdeaPad IP3 15 R3 5425U 4GB 128GB BLUE RAM upgrade specifications

Lenovo IdeaPad 300 Series IP3 15 R3 5425U laptop features DDR4-SDRAM memory upgrade specifications with one SO-DIMM slot available for expansion. The system ships with 4GB integrated memory and supports maximum RAM capacity of 12GB through compatible SO-DIMM module installation. Memory operates at 3200MHz frequency. Upgrade slots accommodate single DDR4 modules to achieve maximum 12GB specifications on the IdeaPad 300 platform.

Additional Notes

• The Lenovo IdeaPad 3 15 R3 5425U features a hybrid memory architecture where part of the RAM is permanently soldered to the motherboard while a single SO-DIMM slot remains accessible for upgrades.
• The 12 GB maximum capacity ceiling indicates that 4 GB is soldered and cannot be removed, limiting the SO-DIMM slot to an 8 GB module as the highest viable upgrade.
• Installing a module with capacity exceeding 8 GB would fail to register fully due to the motherboard's total addressable memory limitation.
• Dual-channel memory operation requires matching the soldered 4 GB portion with an identical 4 GB SO-DIMM module, while asymmetric configurations like 4 GB soldered plus 8 GB SO-DIMM would force the system into flex mode or single-channel operation for the non-matched portion.
• The 3200 MHz specification represents the memory controller's native speed support, though actual operating frequency depends on both the installed module's rated speed and the Ryzen 3 5425U processor's memory controller capabilities.
• DDR4 SO-DIMM modules are physically incompatible with DDR3 or DDR5 slots due to different notch positions and pin configurations, preventing incorrect installation.
• The single accessible SO-DIMM slot requires removing the bottom chassis panel for physical access, which typically does not void manufacturer warranty when performed without causing damage.
• Memory bandwidth becomes a shared resource constraint when integrated graphics are active, as the Radeon Vega GPU allocates a portion of system RAM for video memory operations.
• Operating the system with only the soldered 4 GB permanently limits multitasking headroom and prevents recovery if the onboard memory develops faults, as no backup slot configuration exists.
• Module compatibility verification should confirm DDR4 SDRAM specification, 260-pin SO-DIMM form factor, and voltage rating of 1.2V standard for DDR4 to prevent POST failures.
