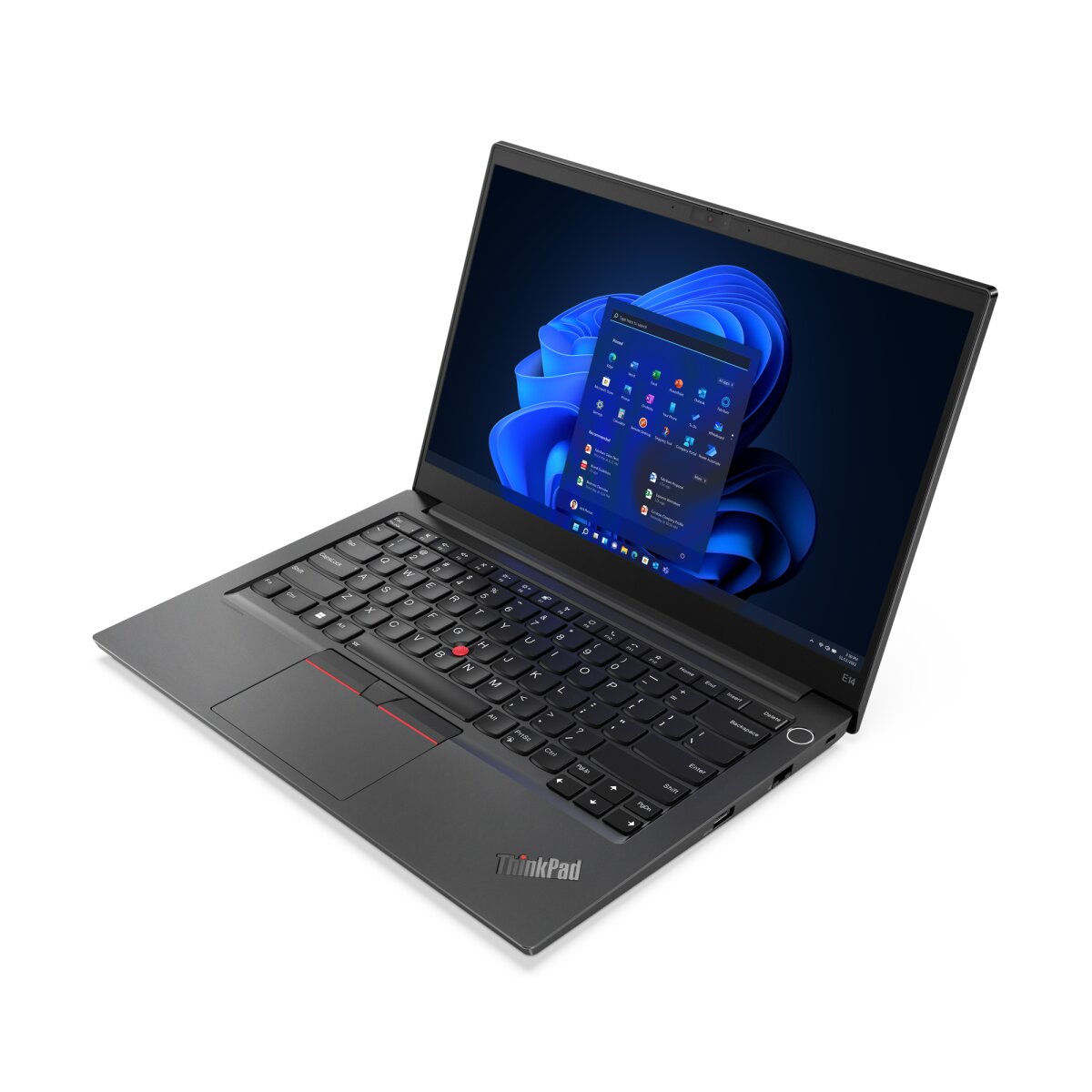

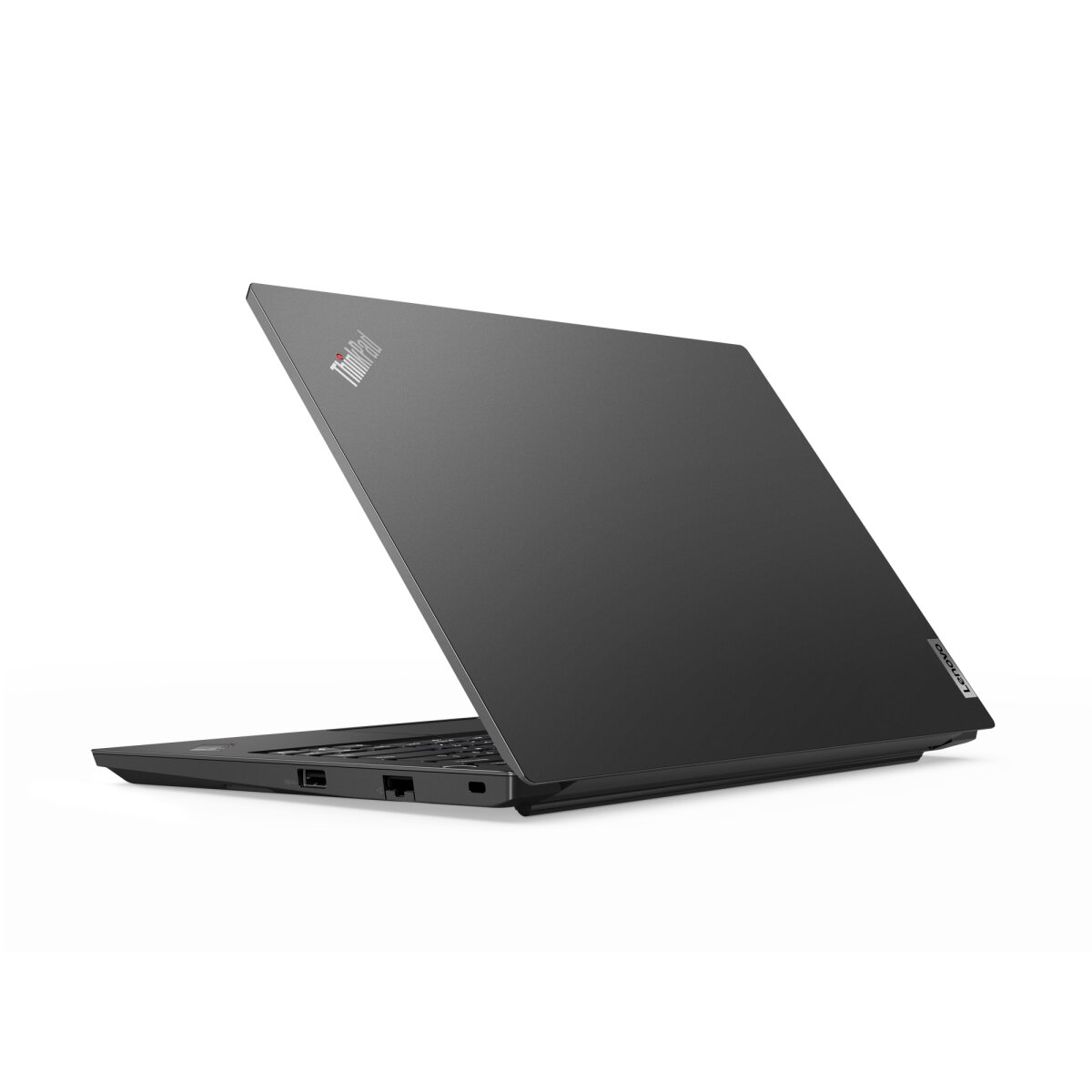

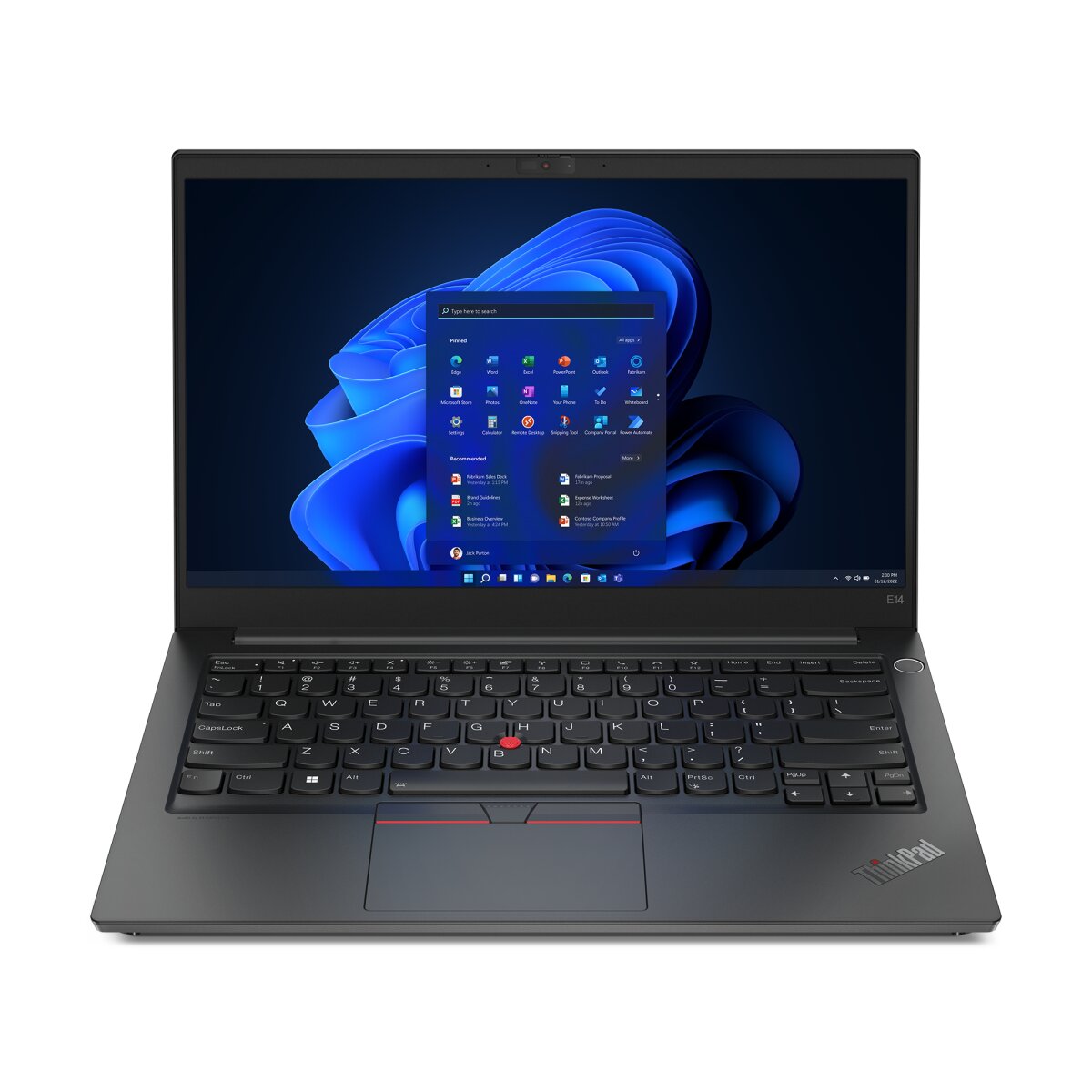

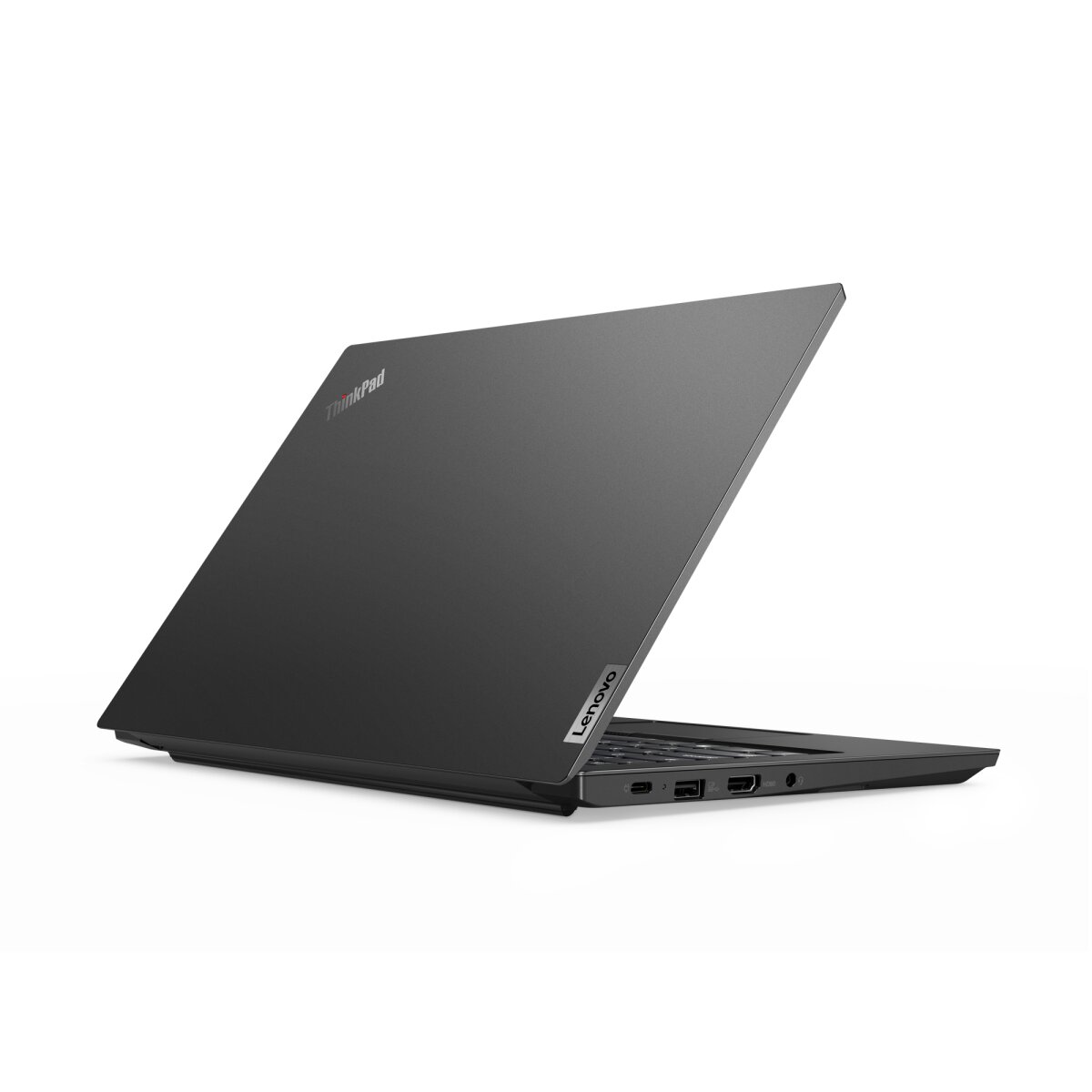

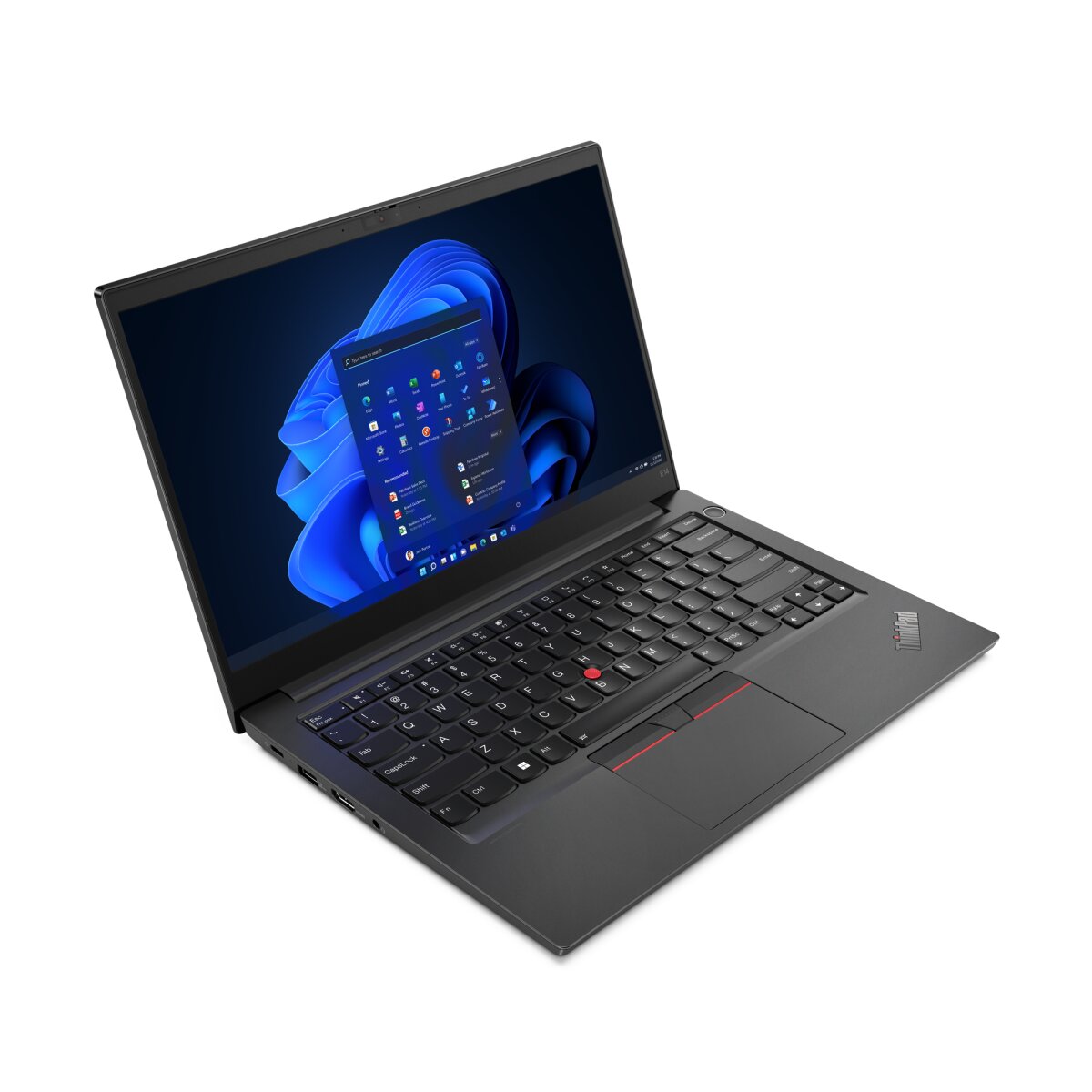

LENOVO ThinkPad E14 Gen 4 (AMD) RAM upgrade specifications

Lenovo ThinkPad E14 Gen 4 (AMD) memory upgrade specifications include DDR4-SDRAM compatibility at 3200 MHz frequency. The laptop features one SO-DIMM slot for RAM expansion, with on-board memory configuration. Maximum memory capacity reaches 40 GB total when slots are populated. Specifications indicate compatible upgrade options available for the E14 Gen 4 (AMD) model through the single expandable SO-DIMM slot configuration.

Additional Notes

• The presence of on board memory indicates that a portion of the system RAM is non removable and cannot be replaced in the event of hardware failure.
• Dual channel performance benefits only apply to the capacity where the SO-DIMM module matches the soldered on board memory amount.
• Total memory expansion is limited to the single available physical slot which necessitates replacing the existing module rather than adding a second one.
• The Lenovo ThinkPad E14 Gen 4 (AMD) utilizes a hybrid memory architecture where the maximum capacity is reached by installing a 32 GB module alongside an 8 GB soldered base.
• Installing a module with a frequency higher than 3200 MHz results in automatic downclocking to match the hardcoded speed of the soldered memory chips.
• Asymmetrical memory configurations exceeding the soldered capacity operate in flex mode which may impact integrated GPU bandwidth for graphics intensive tasks.
• Accessing the SO-DIMM slot requires the removal of the entire base cover assembly which involves releasing plastic internal clips sensitive to mechanical stress.
• Latency timings are governed by the slowest common denominator between the permanent on board chips and the user installed expansion card.
