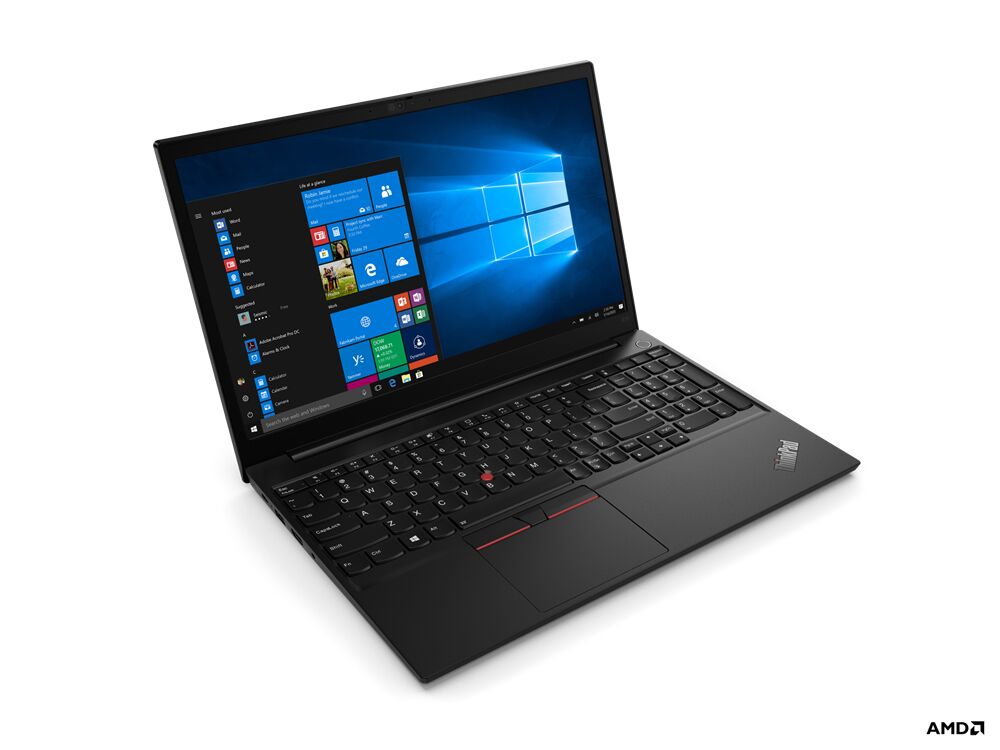

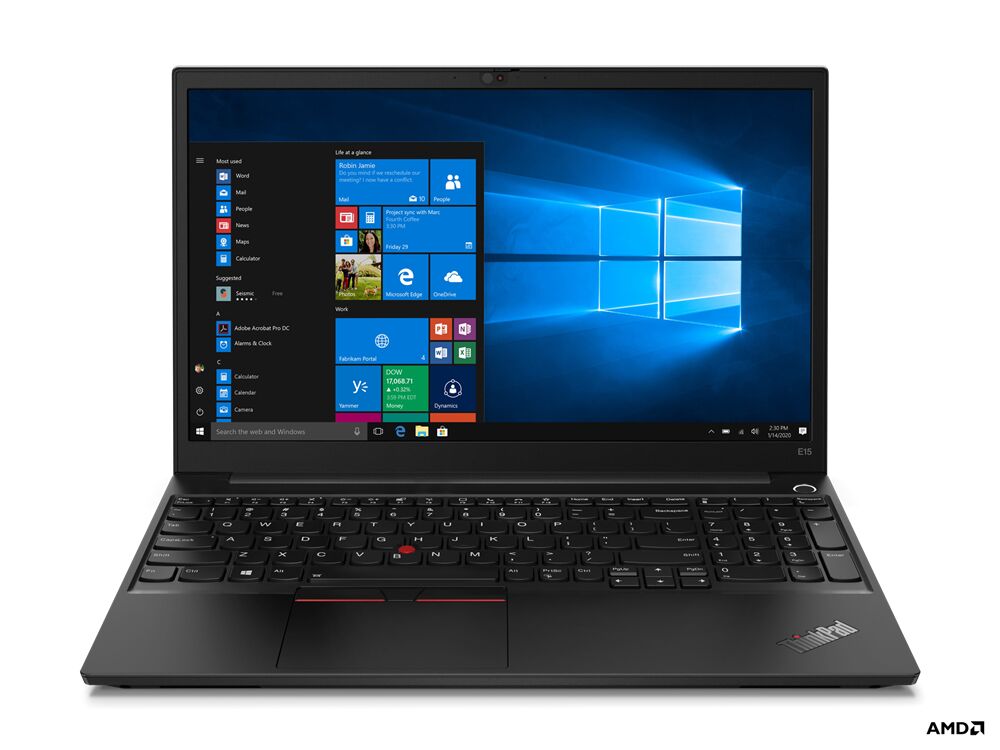

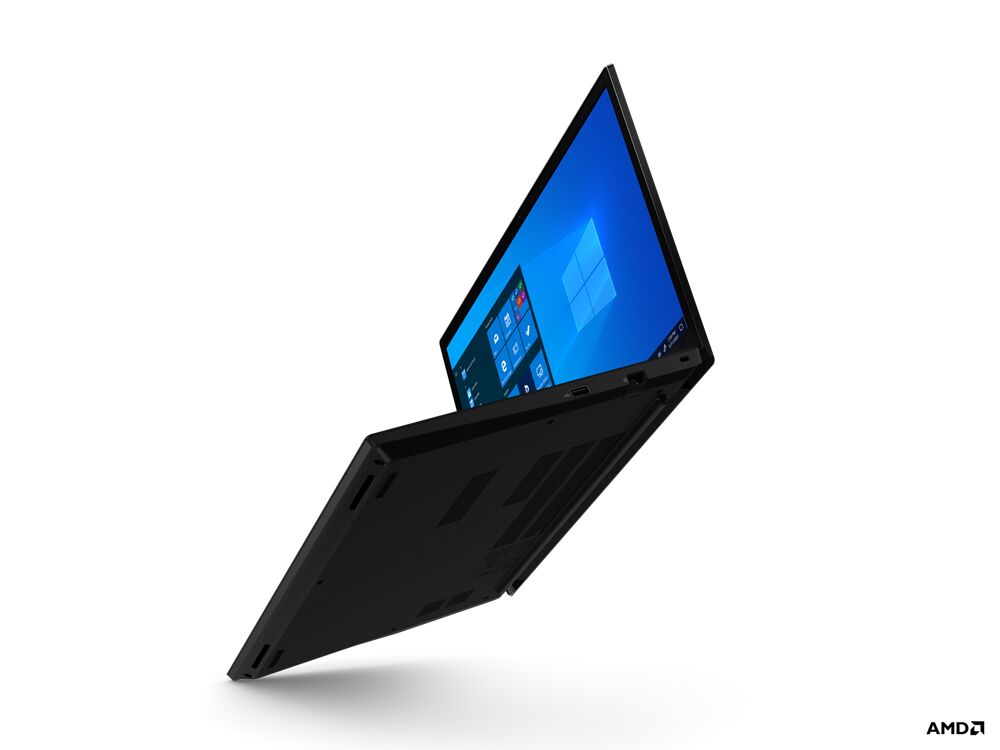

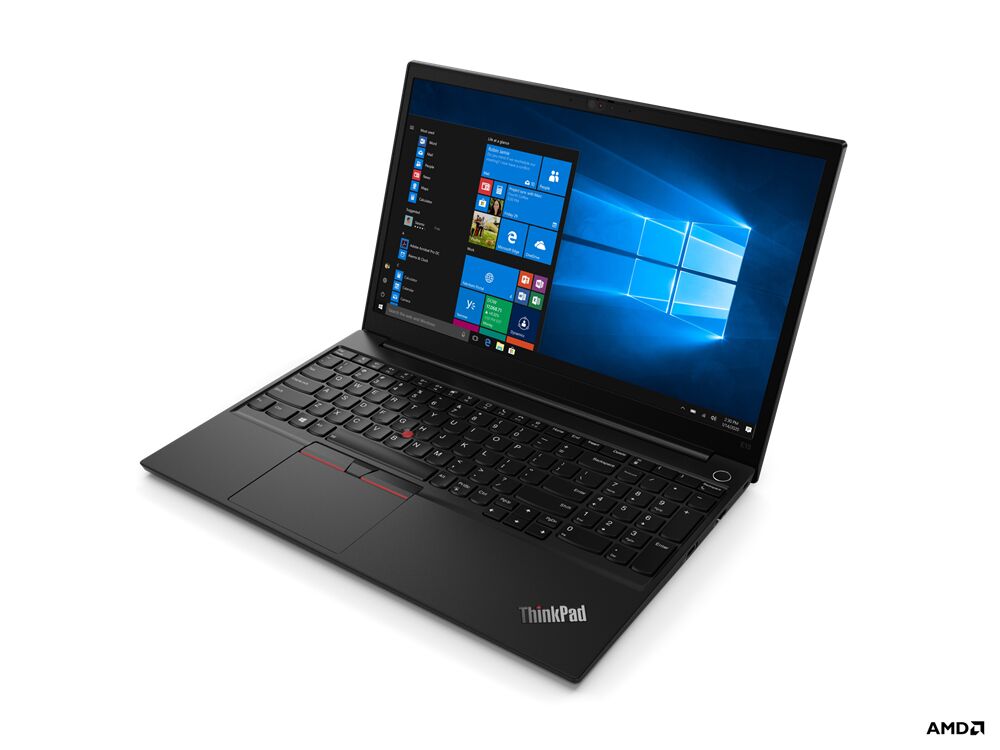

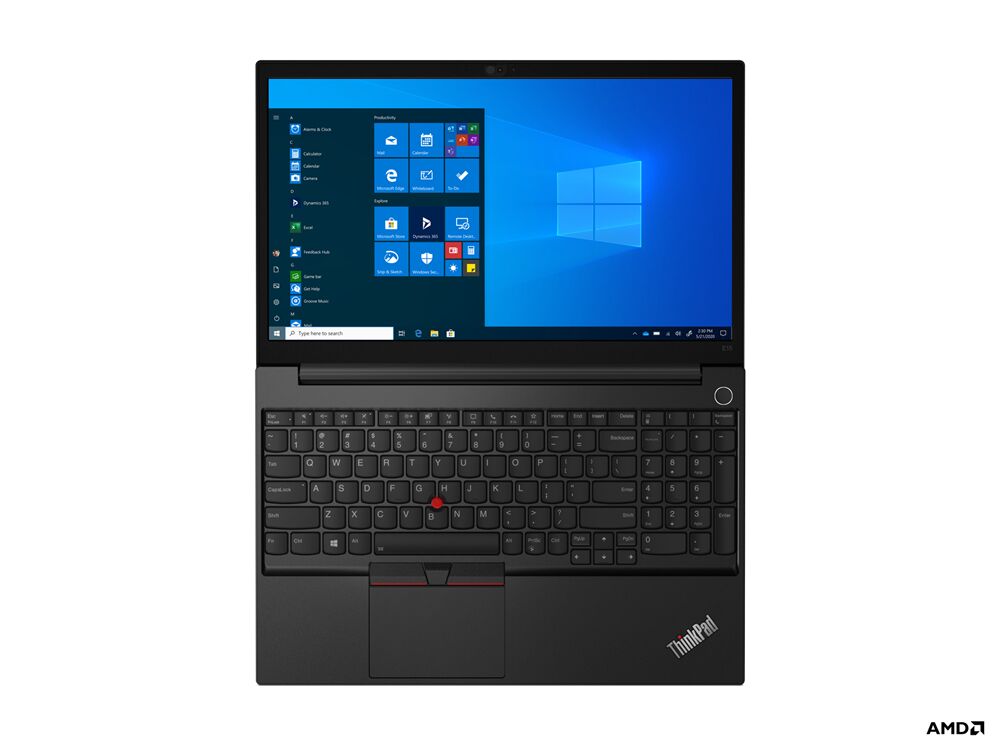

LENOVO ThinkPad ThinkPad E15 Gen 2 (AMD) RAM upgrade specifications
Lenovo ThinkPad E15 Gen 2 (AMD) features DDR4-SDRAM memory with one SO-DIMM slot available for upgrades. The laptop contains on-board memory paired with one expandable SO-DIMM slot, supporting a maximum RAM capacity of 24 GB. Compatible memory modules operate at 3200 MHz frequency. Upgrade specifications indicate single slot configuration for memory expansion on the ThinkPad E series generation 2 AMD variant.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 24 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 01 February 2022 |
Additional Notes
- The Lenovo ThinkPad E15 Gen 2 (AMD) contains soldered memory on the motherboard, meaning only 1 additional SO-DIMM slot is available for expansion. Total capacity ceiling of 24 GB indicates the on-board portion occupies 8 GB or 16 GB depending on configuration.
- Upgrading to the maximum 24 GB configuration requires a DDR4-SDRAM SO-DIMM rated for 3200 MHz. Installing memory with slower ratings will operate at the lowest frequency in the system, reducing bandwidth to both the on-board and expansion modules.
- Single-slot expansion creates an asymmetrical memory layout. Dual-channel performance cannot be fully leveraged if the on-board allocation and SO-DIMM capacity are mismatched, resulting in partial single-channel operation and reduced memory throughput compared to symmetrical configurations.
- SO-DIMM modules are warranty-safe upgrades on this model. Replacement or addition of memory does not void coverage provided the installation follows Lenovo service guidelines and the module is from a certified vendor list.
- The 3200 MHz specification aligns with Ryzen mobile processor memory controllers. Compatibility with aftermarket DDR4 SO-DIMMs rated above 3200 MHz depends on BIOS support; many units enforce JEDEC standard operation at 3200 MHz regardless of module specifications.
