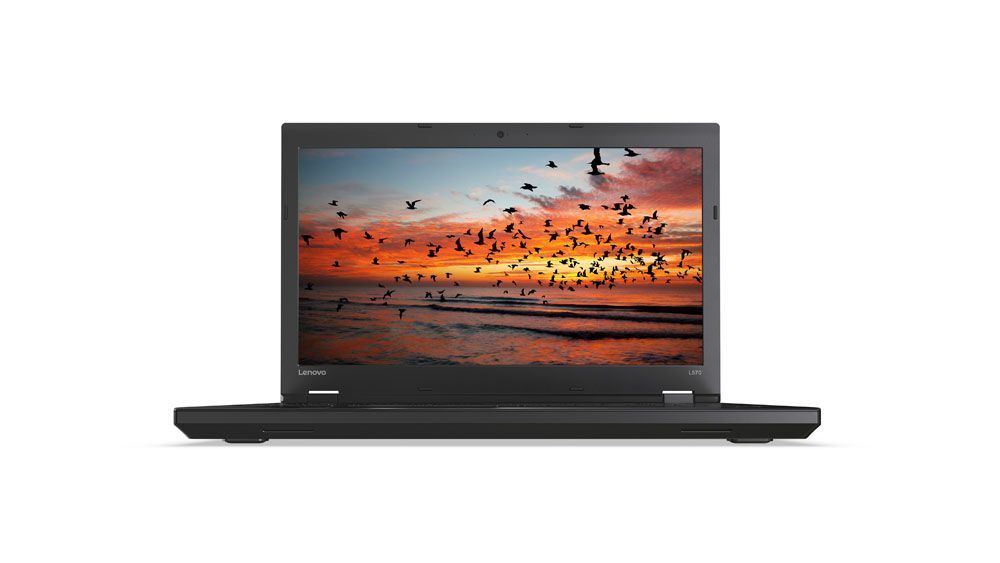

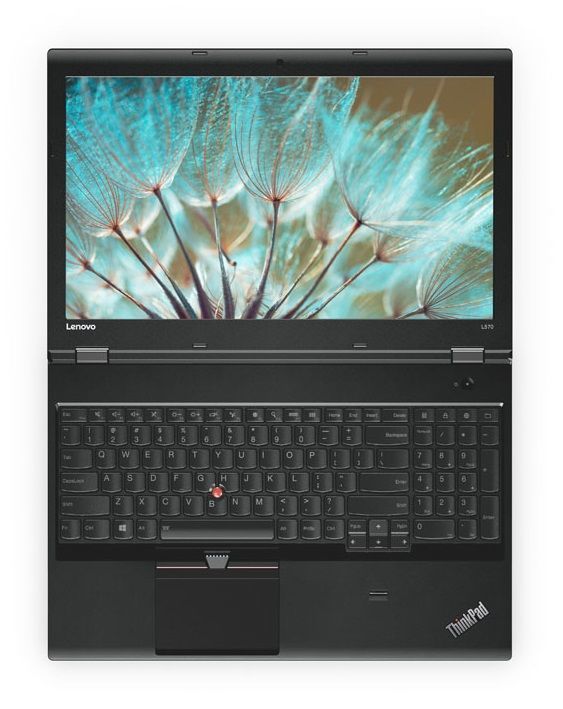

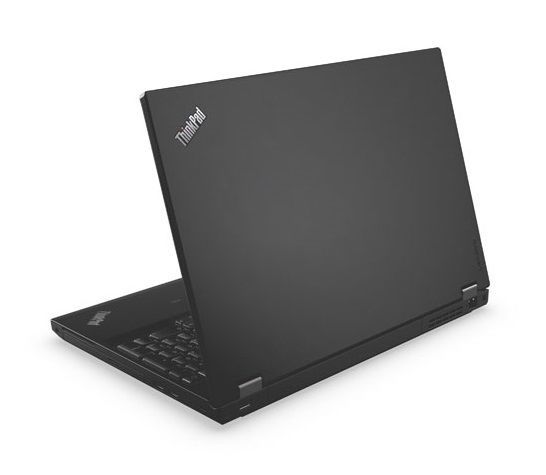

LENOVO ThinkPad L570 RAM upgrade specifications

Lenovo ThinkPad L570 RAM upgrade specifications indicate two SO-DIMM memory slots compatible with DDR4-SDRAM modules operating at 2133 MHz frequency. Maximum memory capacity supported reaches 32 GB total. Upgrade configurations permit installation of DDR4 memory modules in either or both available slots to expand system RAM from factory specifications. SO-DIMM form factor ensures compatibility with standard laptop memory upgrade components for ThinkPad L series systems.

Additional Notes

• The 2133 MHz frequency represents the JEDEC standard speed for DDR4-2133, indicating this system predates support for higher-speed DDR4-2400 or DDR4-2666 modules commonly found in newer laptops.
• Installing higher-frequency modules such as DDR4-2400 or DDR4-3200 will result in automatic downclocking to 2133 MHz, eliminating any potential performance benefit from premium-priced faster memory.
• The 32 GB maximum capacity constraint requires installation of 2x 16 GB modules to reach full memory potential, as 2x 8 GB configurations would limit total system memory to 16 GB.
• Single-channel operation occurs when only 1 memory slot is populated, reducing memory bandwidth by approximately 50% compared to dual-channel configuration with matched modules in both slots.
• SO-DIMM form factor physically prevents installation of standard desktop DIMM modules, which are longer and incompatible with laptop memory slots.
• Non-ECC unbuffered memory is required, as the mobile platform lacks support for ECC registered or load-reduced modules typically used in server environments.
• Mixing modules with different densities (such as 1x 16 GB and 1x 8 GB) maintains functionality but may disable dual-channel mode on the mismatched capacity portion, creating asymmetric memory performance.
• The absence of soldered memory means both slots are user-accessible, allowing complete memory replacement without leaving non-upgradeable capacity on the motherboard.
• Operating voltage must be standard 1.2V DDR4 specification, as low-voltage variants designed for different platforms may cause stability issues or prevent system POST.
• CAS latency variations within DDR4-2133 specification (CL15, CL17, etc.) produce minimal real-world performance differences in typical laptop usage scenarios.
