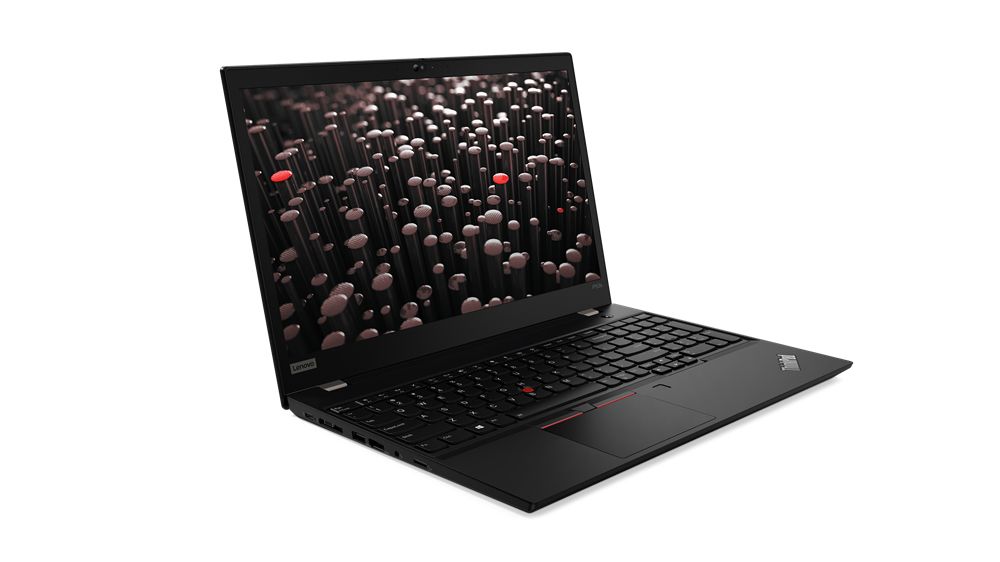

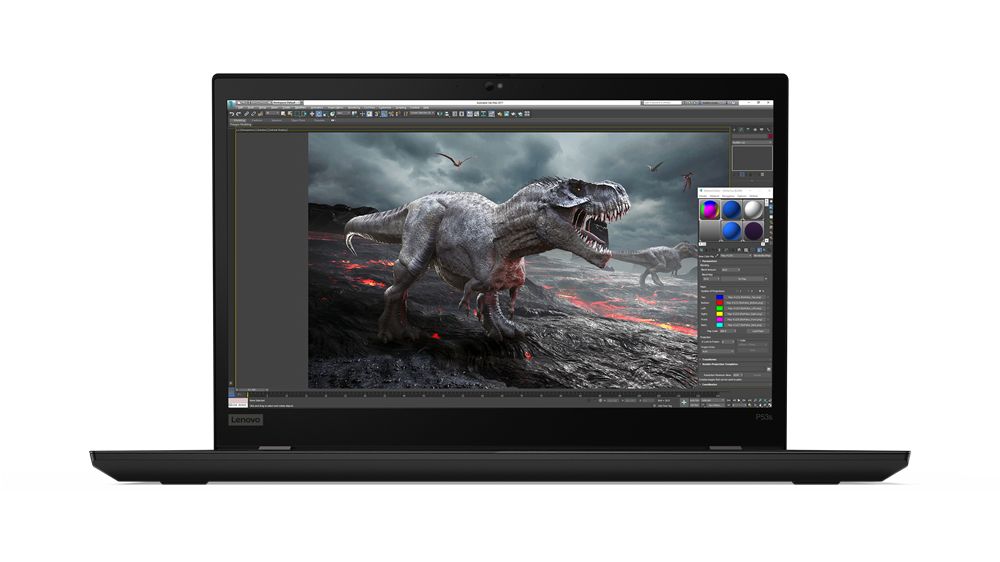

LENOVO ThinkPad 53s RAM upgrade specifications
The Lenovo ThinkPad P 53s features DDR4-SDRAM memory configuration with one SO-DIMM slot available for RAM upgrades. The laptop contains on-board memory combined with one expandable SO-DIMM slot, supporting a maximum RAM capacity of 48 GB. Memory modules operate at 2400 MHz frequency. Upgrade specifications indicate compatible DDR4 memory can be installed in the single SO-DIMM slot to enhance system performance. The maximum memory configuration reaches 48 GB when fully populated with compatible DDR4-SDRAM modules at specified frequency.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 48 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 16 March 2020 |
Additional Notes
- The Lenovo ThinkPad 53s contains soldered memory that cannot be removed, limiting upgrade potential to the single SO-DIMM slot alone.
- Installation of a 48 GB module requires the SO-DIMM slot to accept high-capacity DDR4 chips, a specification not universally supported across all DDR4 SO-DIMM variants, necessitating verification of the exact module before purchase.
- DDR4-2400 MHz operation establishes a performance ceiling for any installed module; faster DDR4 variants will automatically throttle to this frequency, eliminating speed-based upgrade benefits.
- The single upgradeable slot creates a complete memory replacement scenario rather than additive expansion, meaning the existing on-board capacity must be factored into total system RAM post-upgrade rather than supplemented alongside it.
- SO-DIMM form factor confines compatible modules to laptop-grade memory, preventing repurposing of desktop DDR4 stock and restricting sourcing options to OEM or mobile-specific suppliers.
- Maximum addressable capacity of 48 GB establishes a firmware or controller limitation; modules exceeding this specification will not be recognized or will operate at reduced capacity, rendering higher-density alternatives incompatible.
- The combination of soldered primary memory and restricted slot count means memory configuration cannot be altered post-purchase except through complete module replacement, eliminating flexibility for future scaling.
