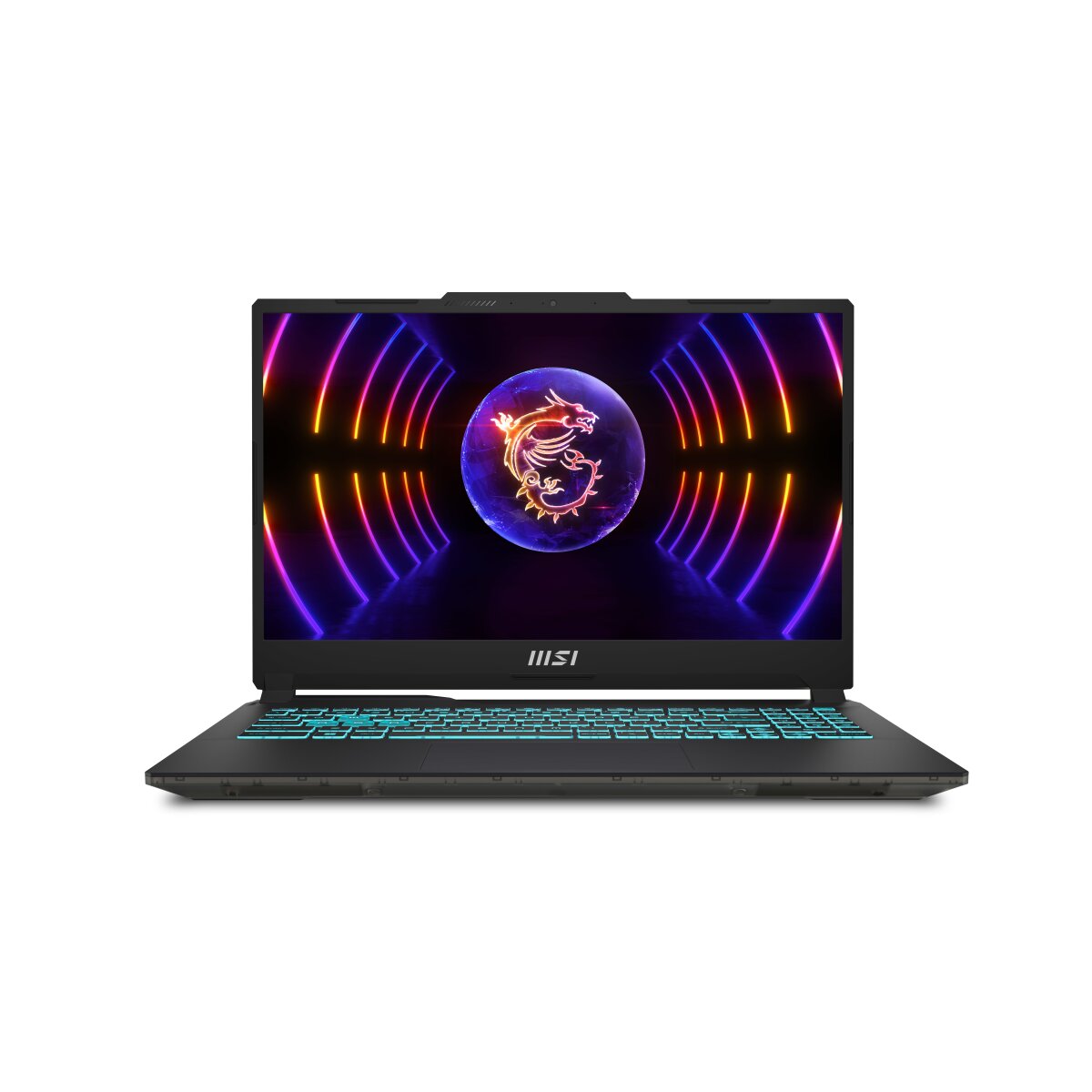

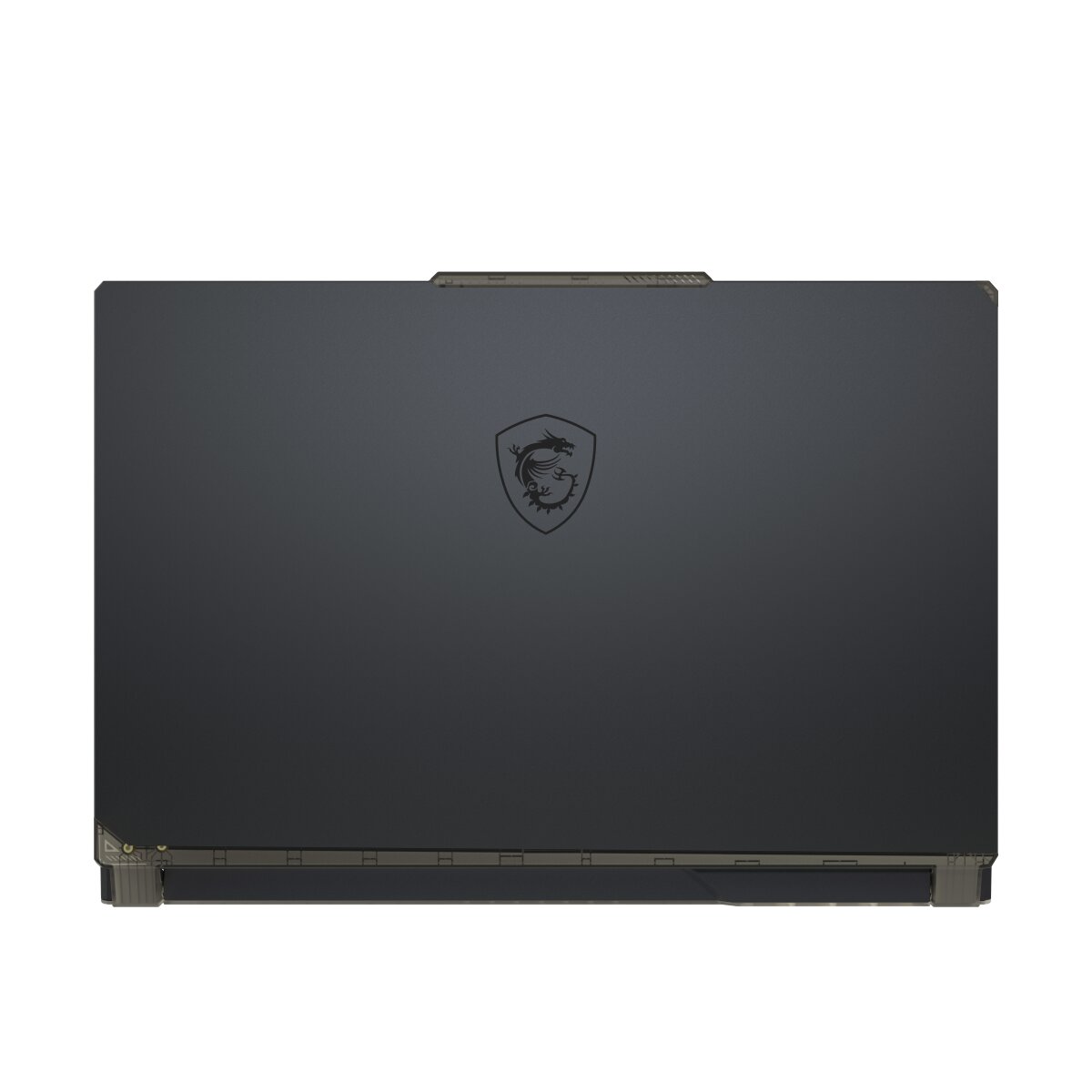

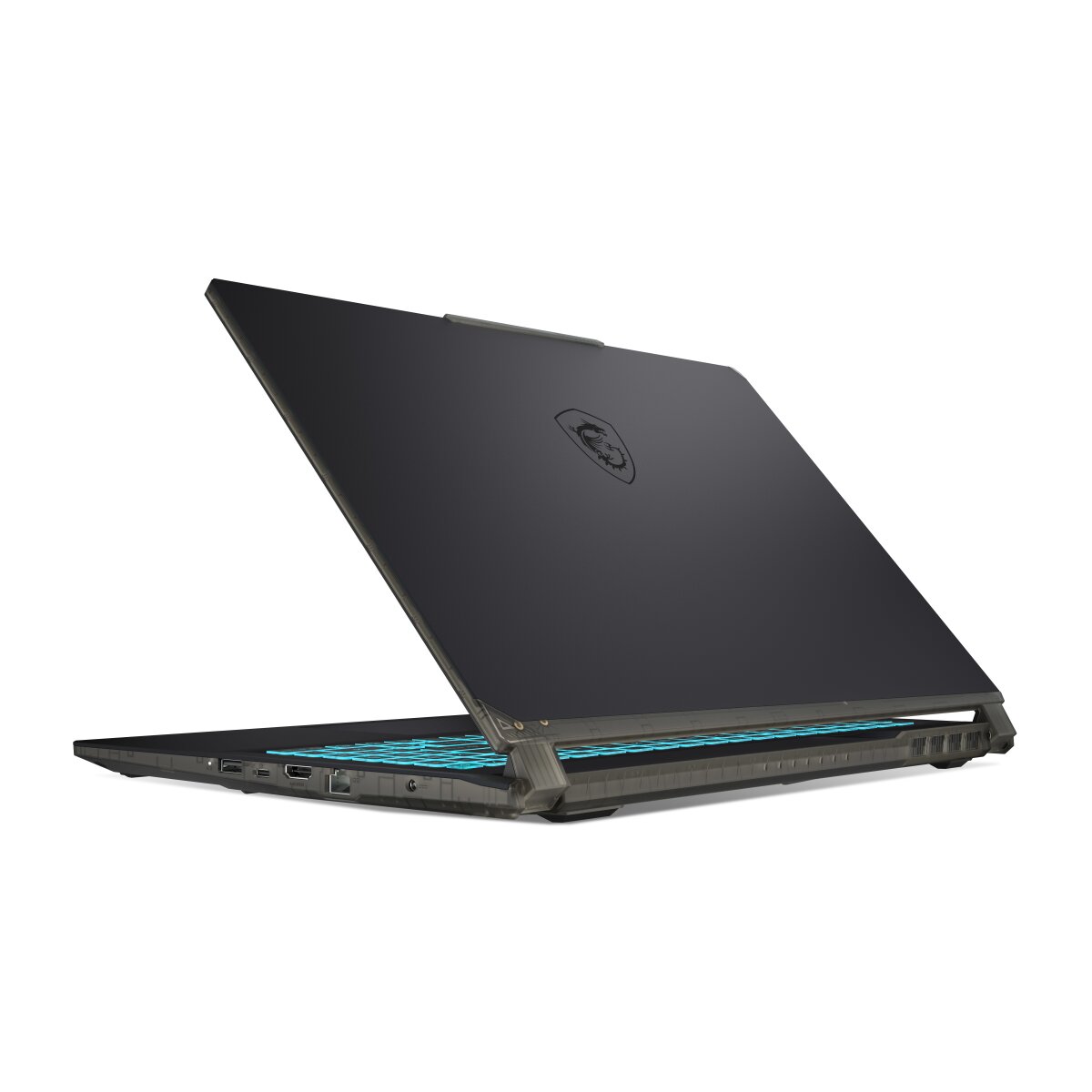

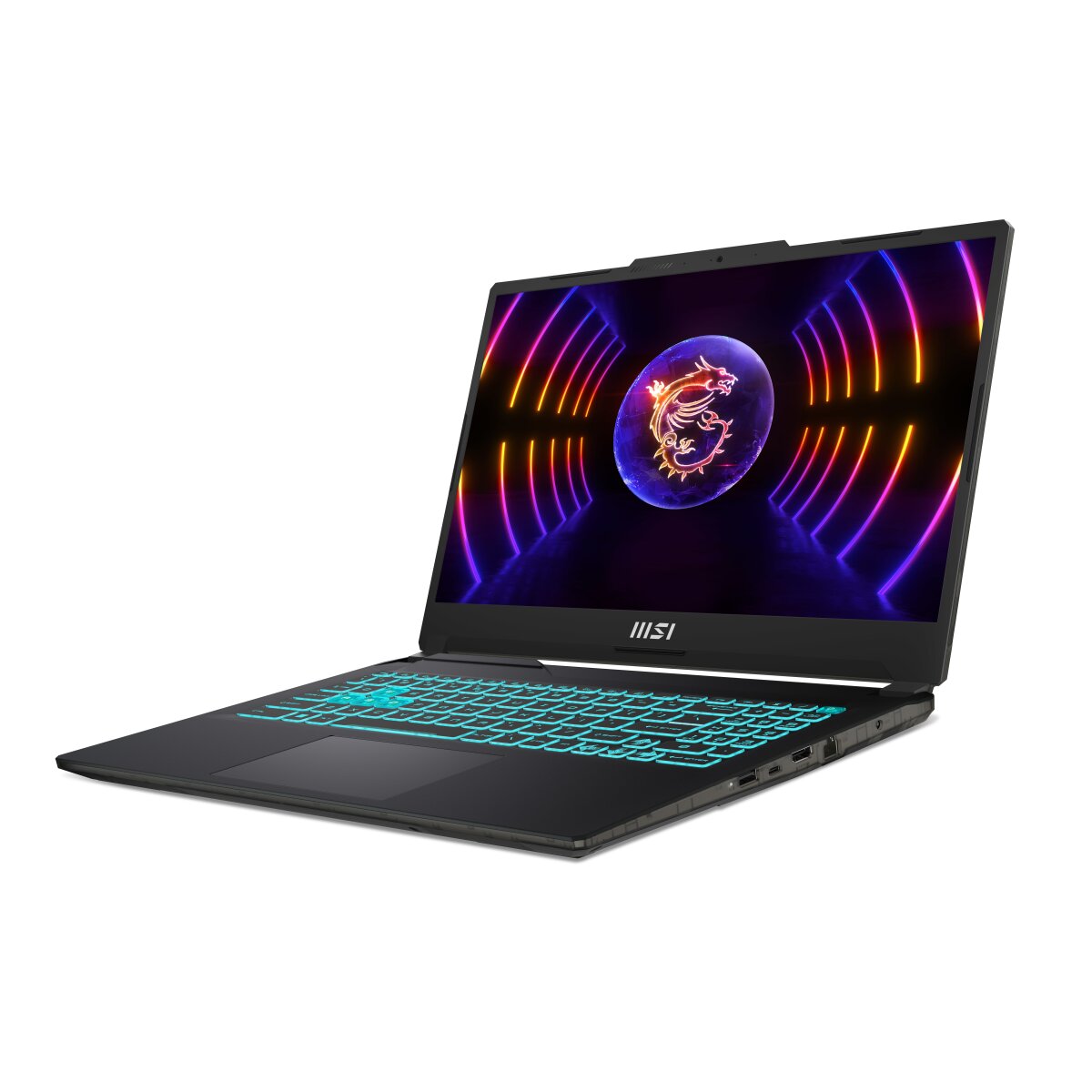

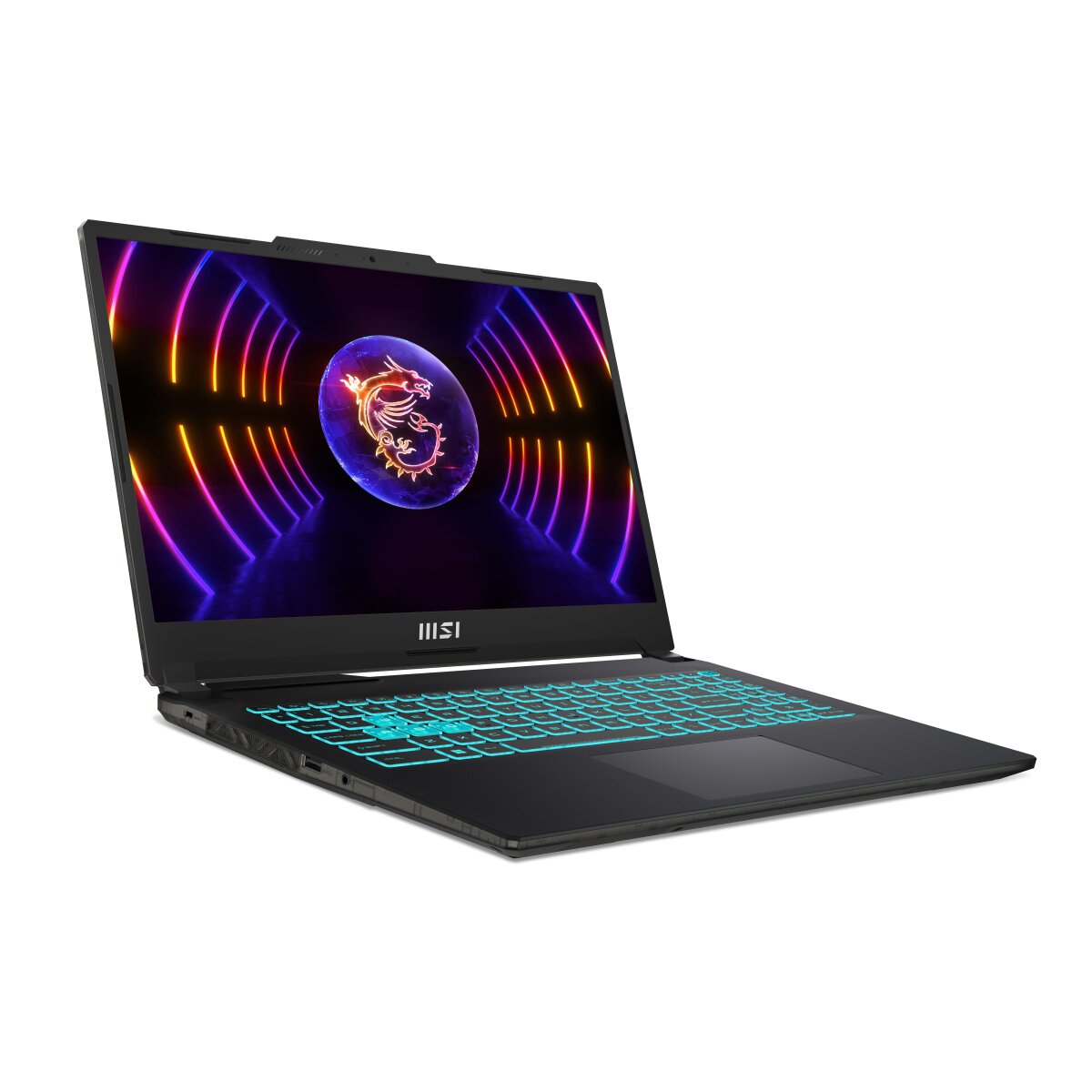

MSI Cyborg 15 A12VE-451NL RAM upgrade specifications

The MSI Cyborg 15 A12VE-451NL laptop features DDR5-SDRAM memory upgrade capabilities with two SO-DIMM slots supporting a maximum RAM capacity of 64 GB. Compatible memory modules operate at 4800 MHz frequency. The upgrade specifications indicate the laptop's memory configuration allows for dual-channel performance through the available SO-DIMM slots, enabling users to expand memory capacity for enhanced multitasking and performance demands.

Additional Notes

• The MSI Cyborg 15 A12VE-451NL supports DDR5 modules exclusively, eliminating backward compatibility with DDR4 or earlier generation memory technologies due to different physical notch positions and voltage requirements.
• The 4800 MHz operating frequency represents JEDEC standard DDR5 base speed, meaning the system does not support overclocked XMP or EXPO profiles that typically run at 5200 MHz or higher in DDR5 specifications.
• Populating both SO-DIMM slots with identical capacity modules enables dual-channel memory architecture, doubling theoretical bandwidth from 38.4 GB/s to 76.8 GB/s compared to single-channel configuration.
• The 64 GB maximum capacity constraint indicates 2x32 GB modules represent the highest density configuration, requiring individual SO-DIMMs with 32 GB capacity which typically utilize dual-rank architecture.
• DDR5 SO-DIMM modules operating at 4800 MHz produce CAS latency values around CL40, resulting in absolute first word latency of approximately 16.6 nanoseconds, slightly higher than optimized DDR4-3200 configurations.
• Mixing memory modules with different capacities or speeds will force the system to operate all modules at the lowest common frequency and timing specifications, potentially reducing performance below rated specifications.
• The SO-DIMM form factor requires modules with 262-pin edge connector configuration measuring 69.6 mm in length, physically incompatible with standard DIMM desktop memory modules.
• Installing non-matching memory brands or differing die configurations between slots may cause stability issues despite identical frequency ratings, as DDR5 on-die ECC operates independently per module.
• The 12th generation Intel processor designation in the model number indicates compatibility with DDR5 voltage regulation at 1.1V, managed through integrated PMIC on each SO-DIMM rather than motherboard-based voltage delivery.
• Accessing the SO-DIMM slots typically requires bottom panel removal, potentially voiding warranty seals depending on regional service policies and whether memory upgrades qualify as user-serviceable components.
