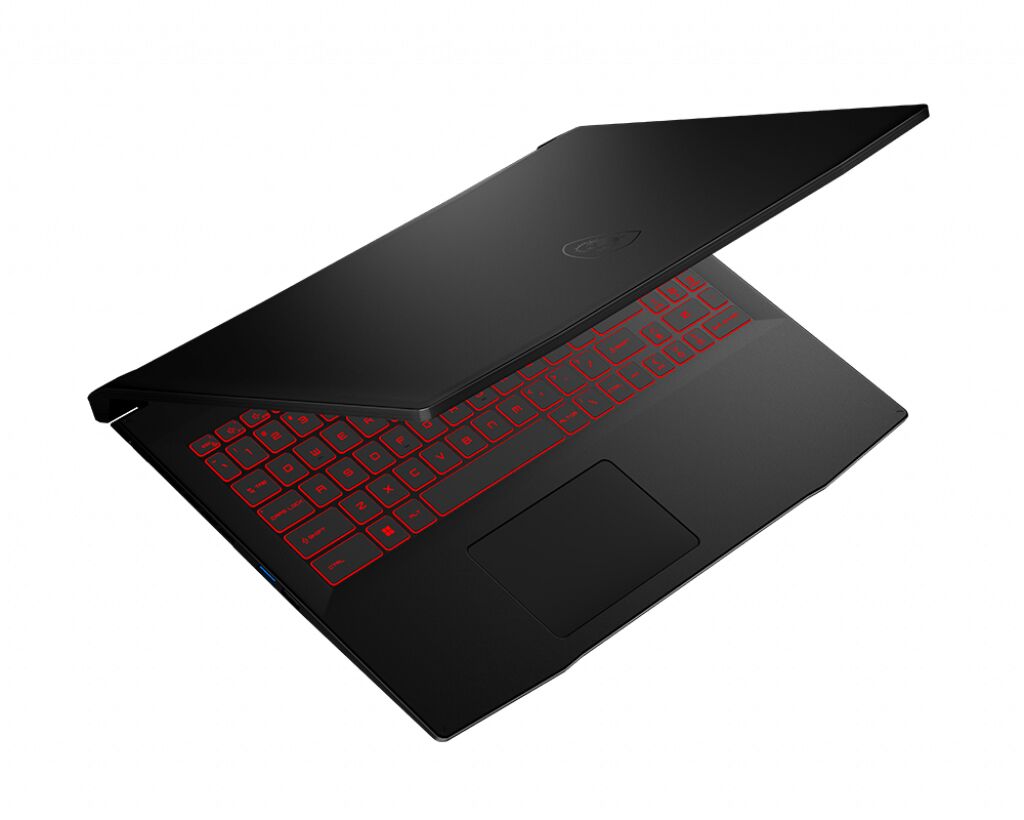

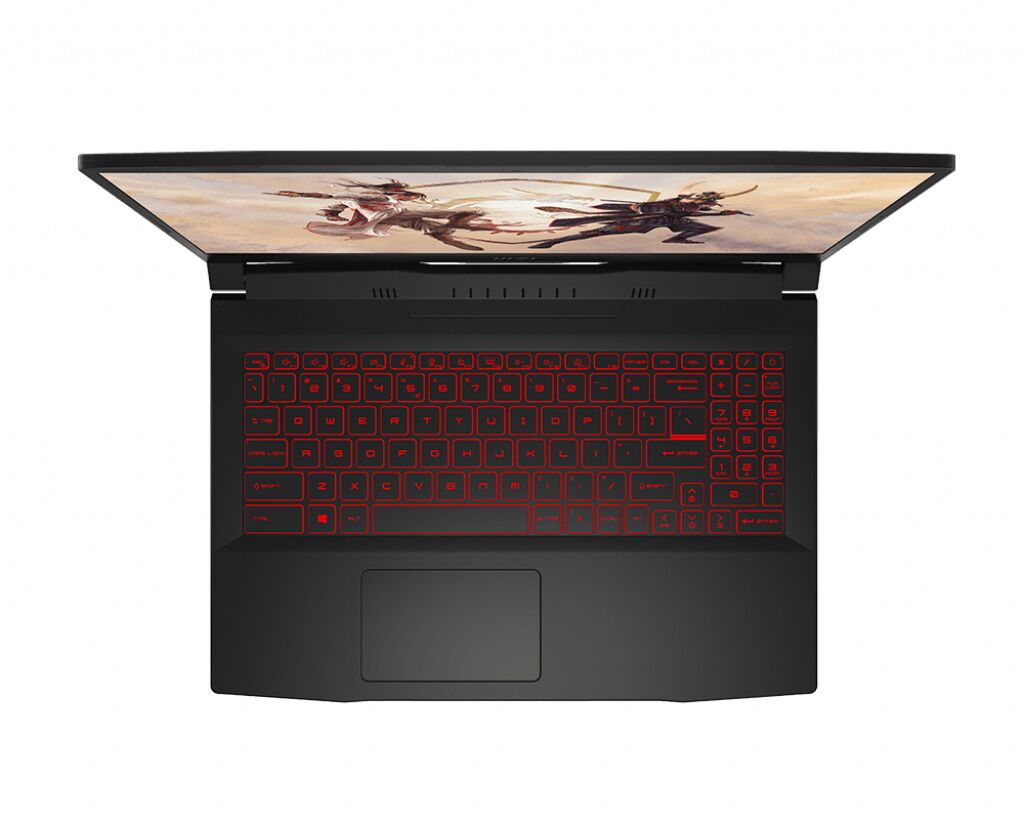

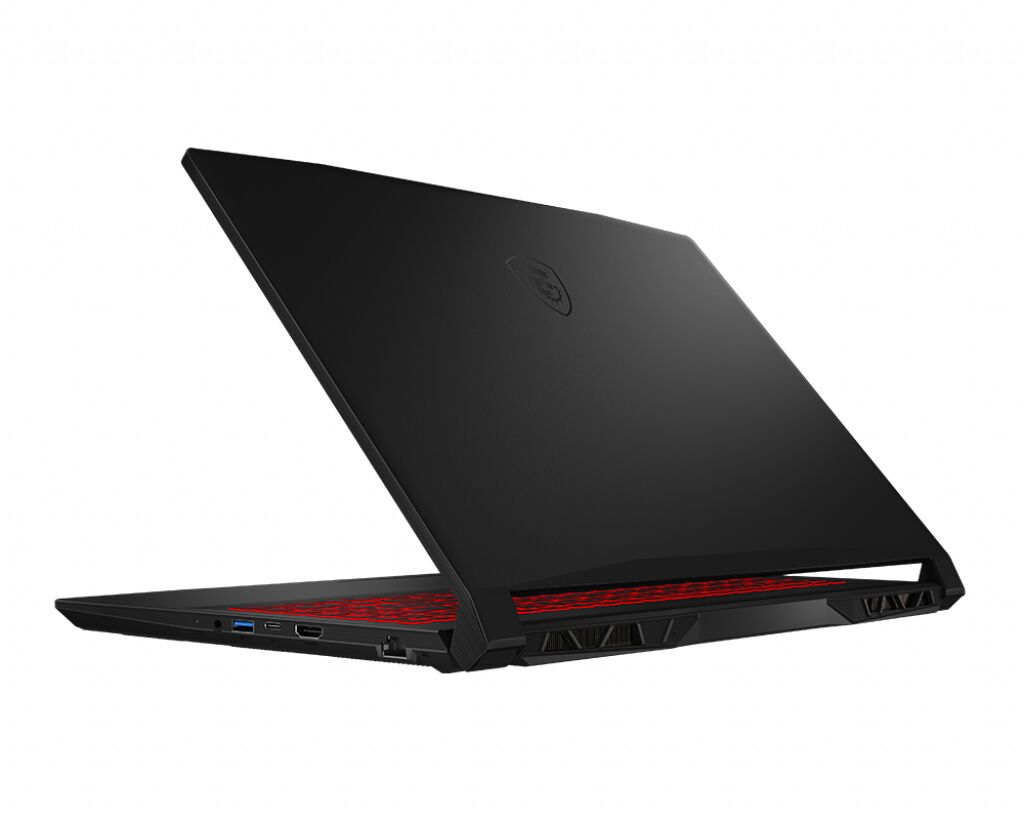

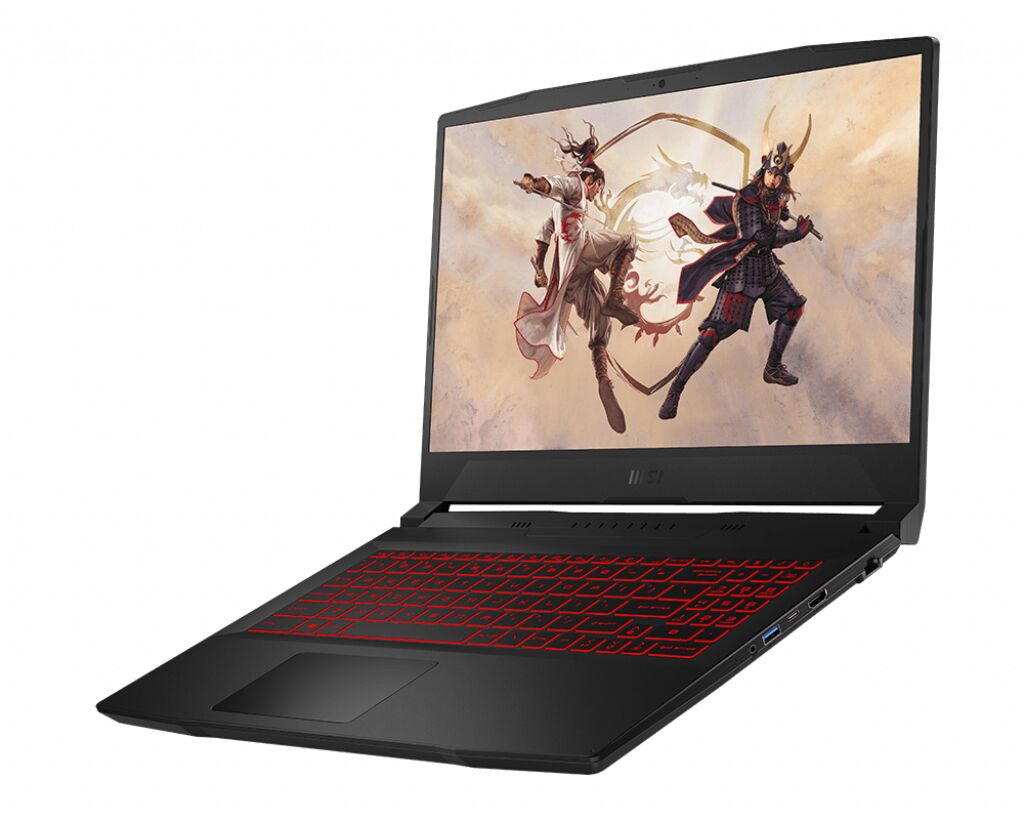

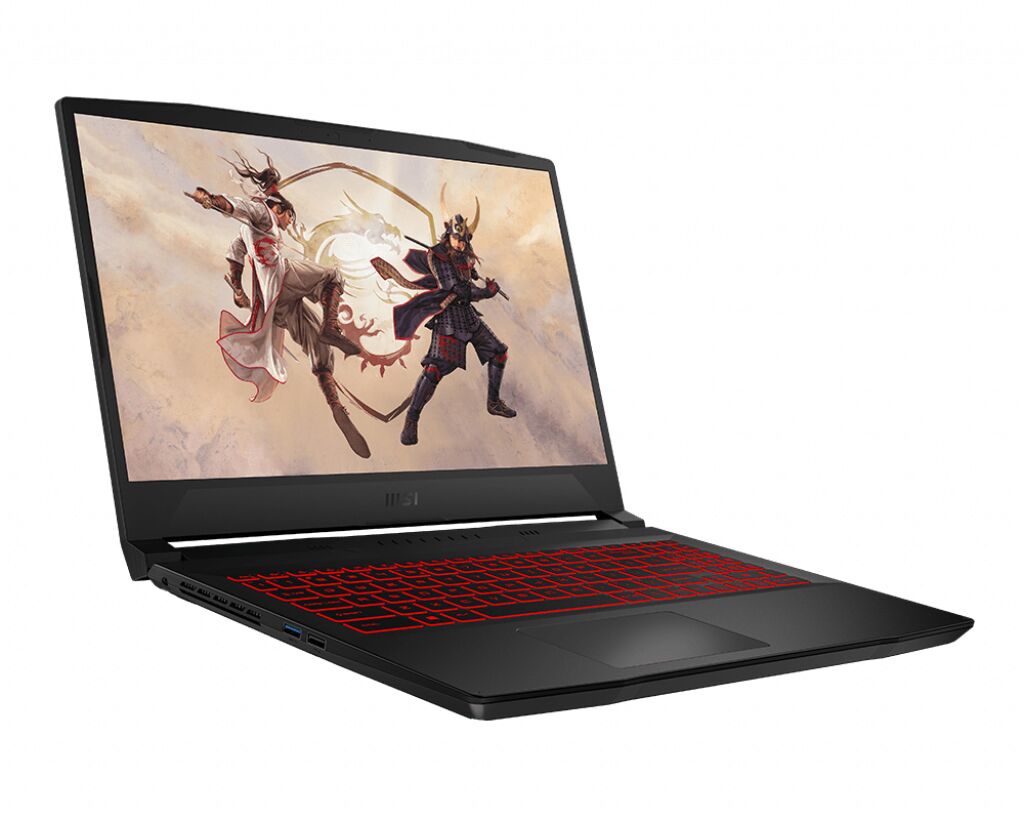

MSI Gaming GF66 12UE-091XES Katana RAM upgrade specifications
The MSI GF66 12UE-091XES Katana Gaming series laptop features DDR4-SDRAM memory with 2x SO-DIMM slots for upgrade compatibility. The maximum RAM capacity supported is 64 GB, with memory operating at 3200 MHz frequency. SO-DIMM form factor specifications allow for modular memory expansion. Current memory configuration details and upgrade options conform to the Gaming family's standard DDR4 memory slots and compatibility parameters for the GF series platform.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 23 February 2022 |
Additional Notes
- The presence of 2 dedicated slots allows for a dual channel memory configuration which doubles the theoretical bandwidth compared to single channel setups.
- Upgrading the MSI GF66 12UE-091XES Katana to the maximum 64 GB capacity requires the physical removal of all existing modules because no soldered memory occupies the motherboard.
- Integrated graphics performance scales directly with the installation of identical pairs of 3200 MHz modules to ensure synchronized timing cycles.
- The use of standard SO-DIMM latches permits manual installation without specialized tools beyond a Phillips head screwdriver for chassis entry.
- Memory modules exceeding the 3200 MHz rating will automatically downclock to match the system bus speed limitations defined by the processor architecture.
- System stability during high workload transitions depends on utilizing non-ECC unbuffered modules to maintain compatibility with the consumer grade chipset.
- Total memory height must adhere to standard SO-DIMM profiles to prevent mechanical interference with the internal heat pipe assembly and bottom panel clearance.
