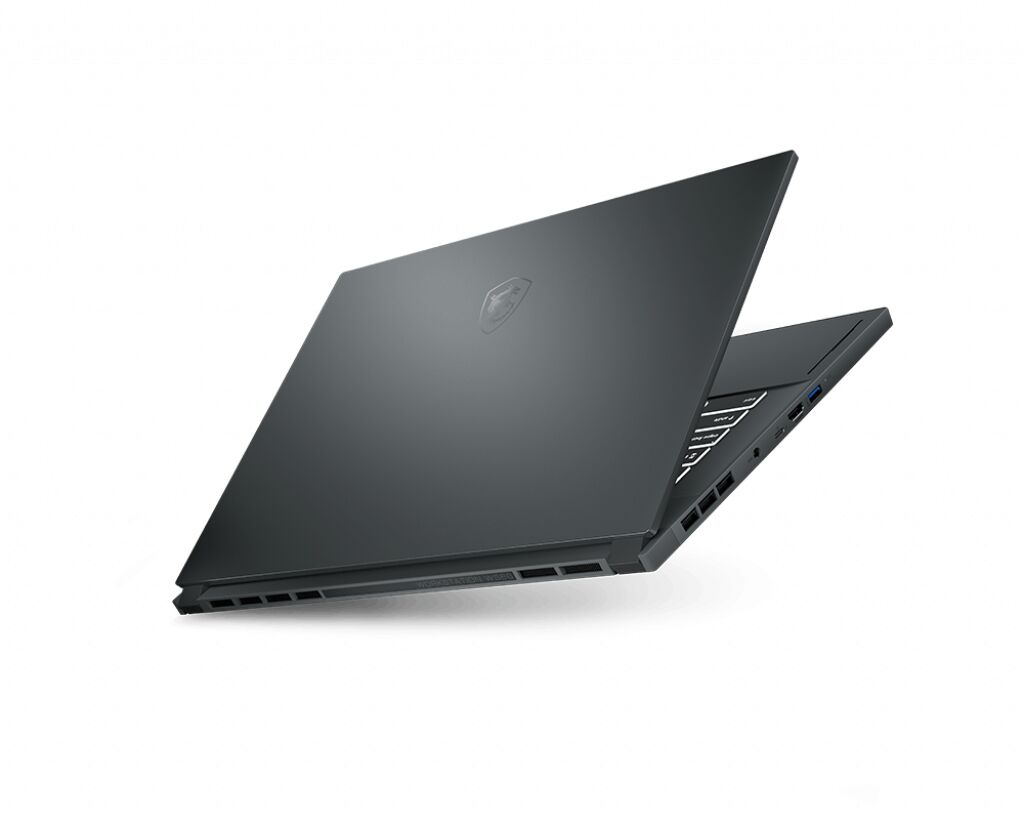

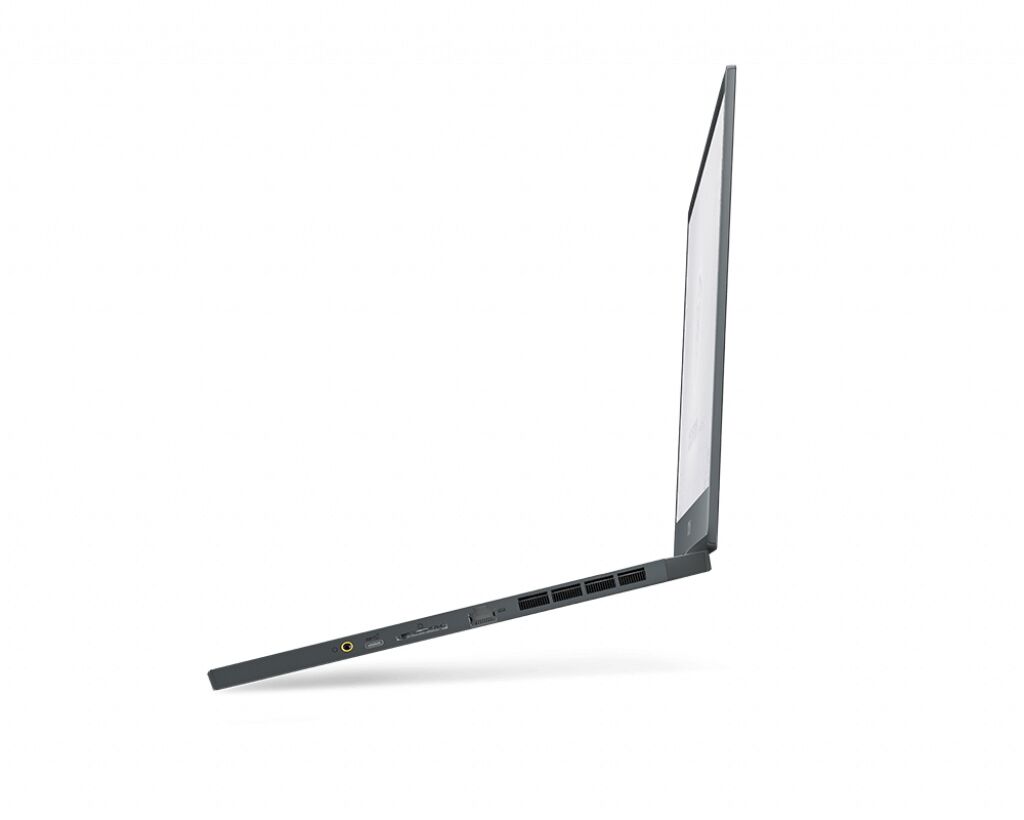

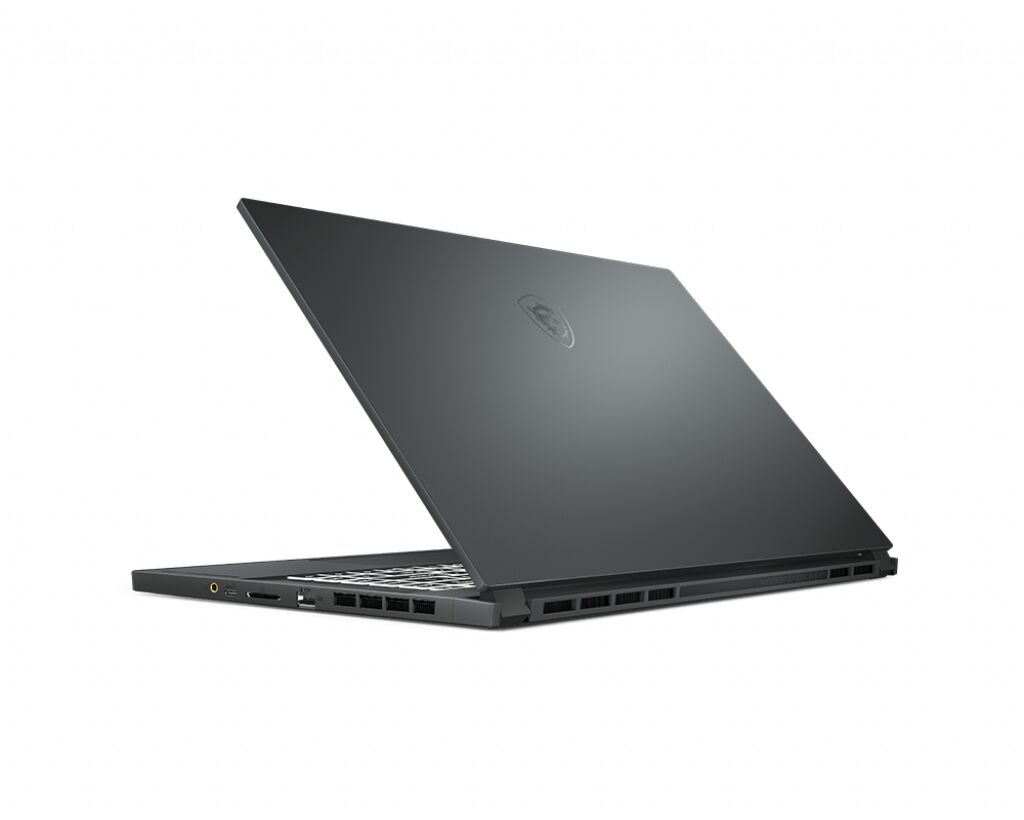

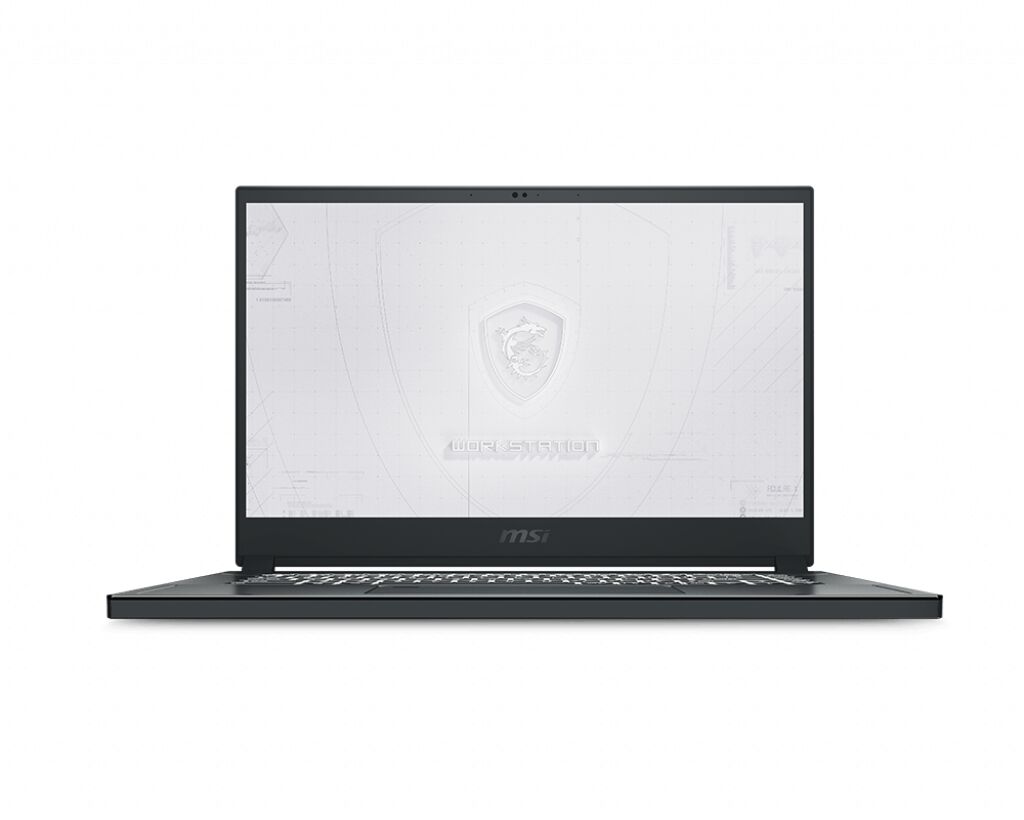

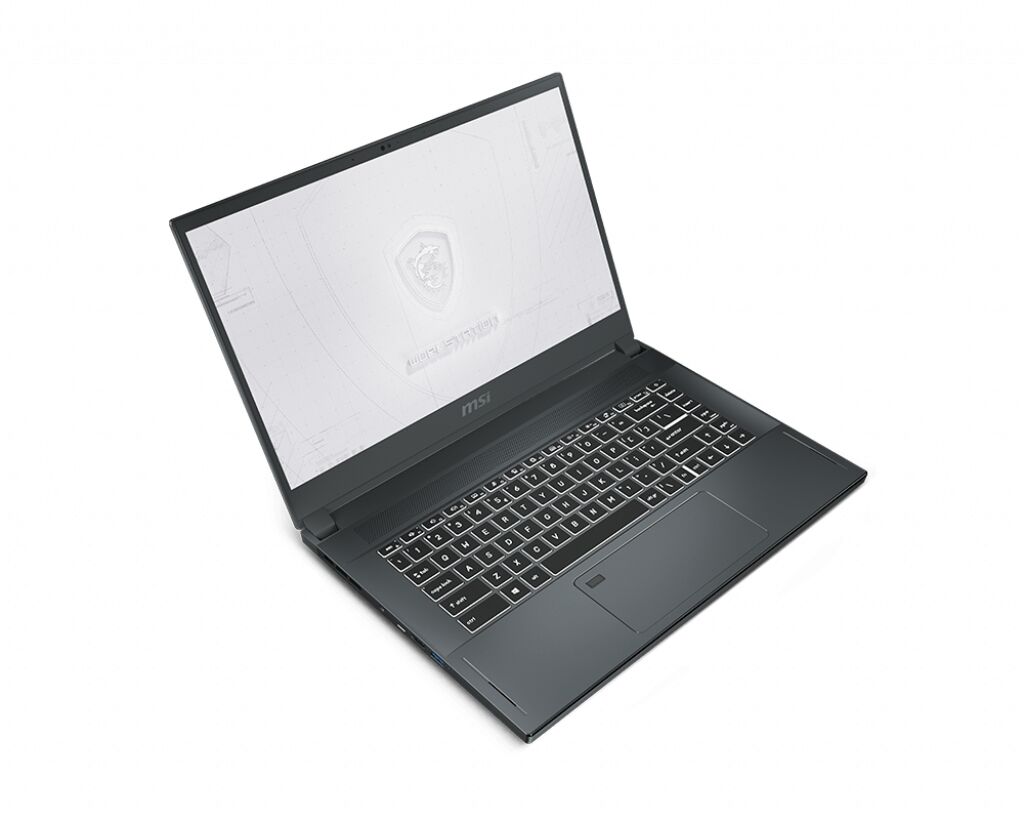

MSI Workstation WS66 10TKT-080 RAM upgrade specifications

MSI WS66 10TKT-080 workstation features two SO-DIMM slots supporting DDR4-SDRAM memory upgrade specifications. Maximum RAM capacity reaches 64 GB total, with compatible modules operating at 2666 MHz frequency. Memory upgrade specifications indicate SO-DIMM form factor modules are required for this professional workstation model. The WS66 series supports DDR4 memory upgrades across dual slots, enabling flexible memory configuration within the 64 GB maximum capacity parameters.

Additional Notes

• The MSI WS66 10TKT-080 dual-slot configuration limits upgrade flexibility compared to quad-slot workstations, requiring complete module replacement rather than incremental capacity additions.
• DDR4-2666 represents a JEDEC standard specification that ensures broad compatibility across multiple manufacturers while establishing baseline timing parameters of CL19 or better.
• The 64 GB ceiling translates to a practical maximum configuration of two 32 GB modules, eliminating any pathway to higher capacities regardless of technological availability.
• SO-DIMM modules operate at 1.2 volts standard, with low-voltage variants potentially incompatible despite matching speed ratings due to SPD profile differences.
• Frequency locked at 2666 MHz means higher-rated modules will downclock automatically, providing no performance benefit while potentially increasing cost unnecessarily.
• Dual-channel architecture requires matched module pairs for optimal memory interleaving, with mismatched capacities forcing single-channel operation on the excess capacity portion.
• Access to memory slots typically requires complete bottom panel removal, complicating field upgrades compared to dedicated access doors common in older workstation designs.
• Non-ECC DDR4 SO-DIMM modules remain the only compatible option, as unbuffered ECC variants with matching physical form factor will not initialize in consumer-oriented chipsets.
• Mixing modules from different manufacturers or production batches increases probability of stability issues despite identical advertised specifications due to die revision variations.
• The 260-pin SO-DIMM standard prevents accidental installation of incompatible desktop DIMM modules through physical key position differences.
• Memory bandwidth peaks at 42.6 GB/s theoretical maximum in dual-channel mode, establishing the data transfer ceiling regardless of processor capabilities.
• Rank configuration affects compatibility at maximum capacity, with dual-rank 32 GB modules potentially encountering stability limitations not present with single-rank configurations at lower densities.
