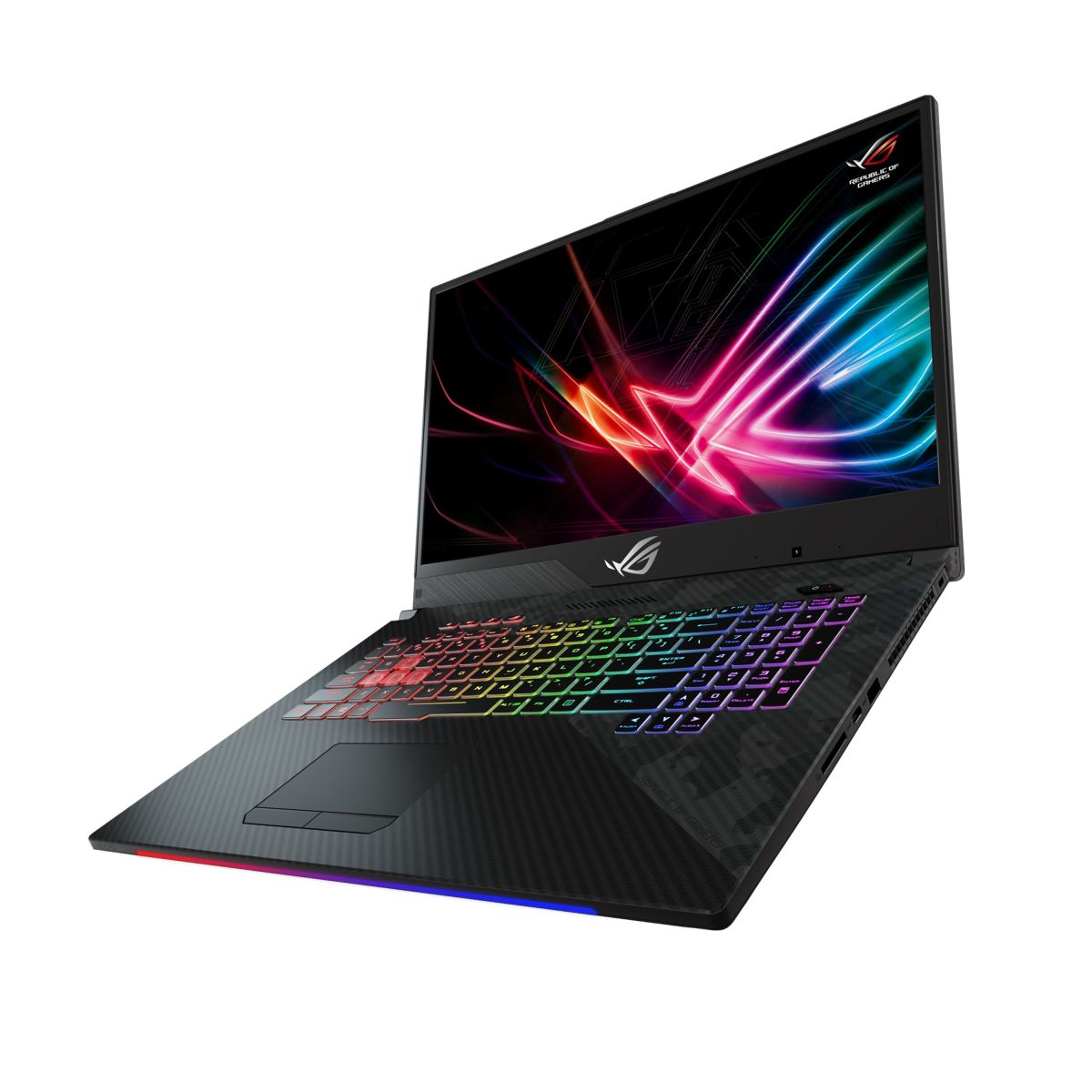

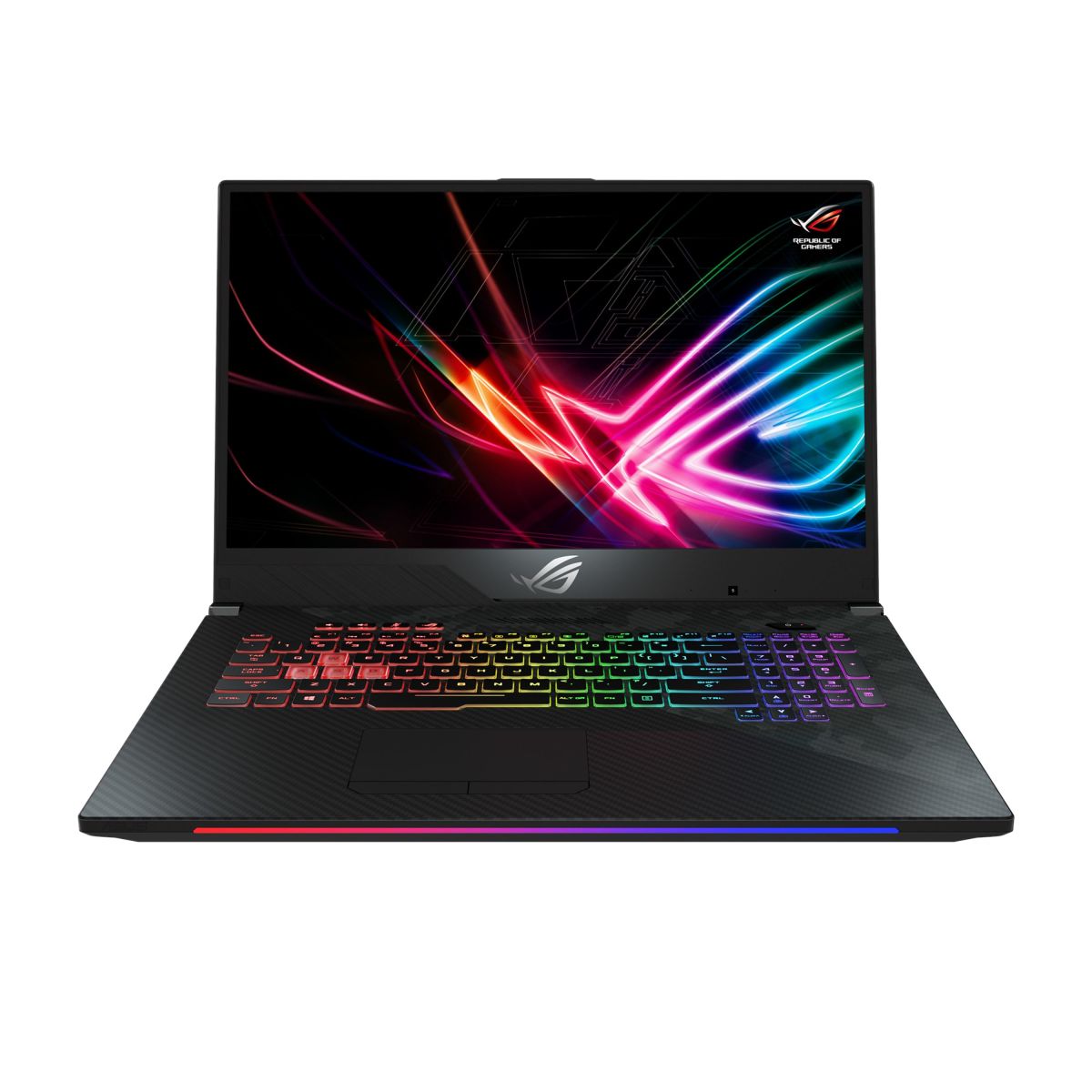

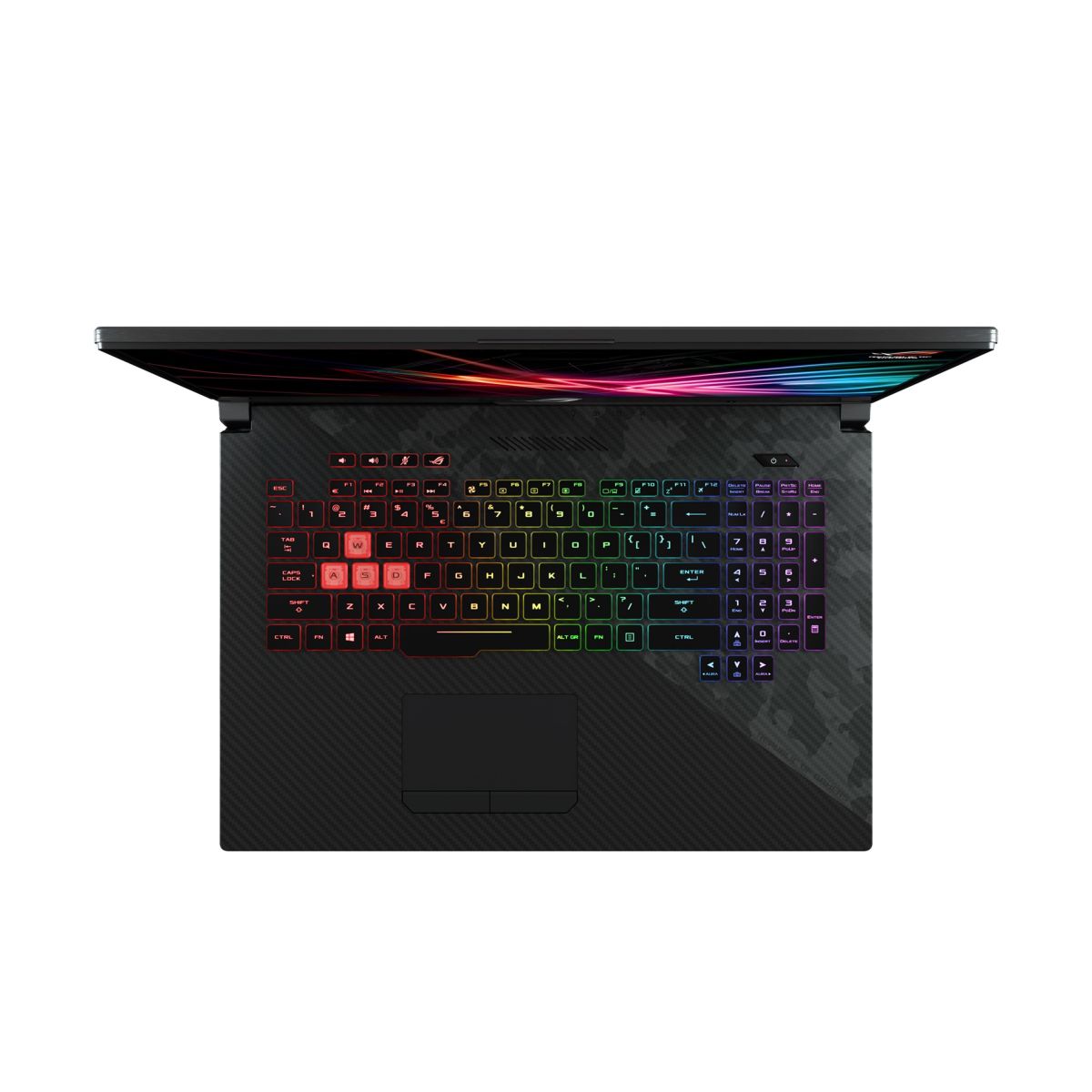

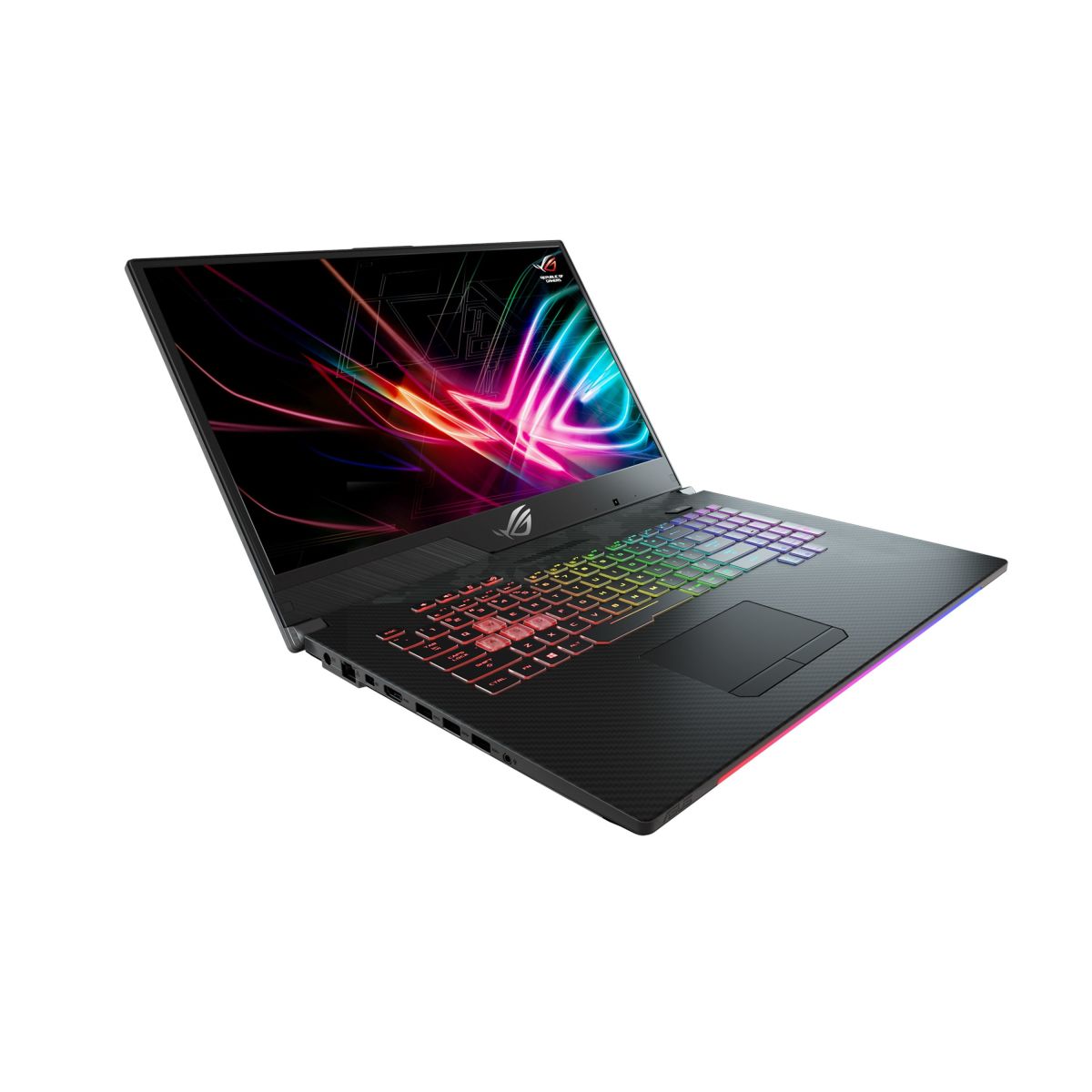

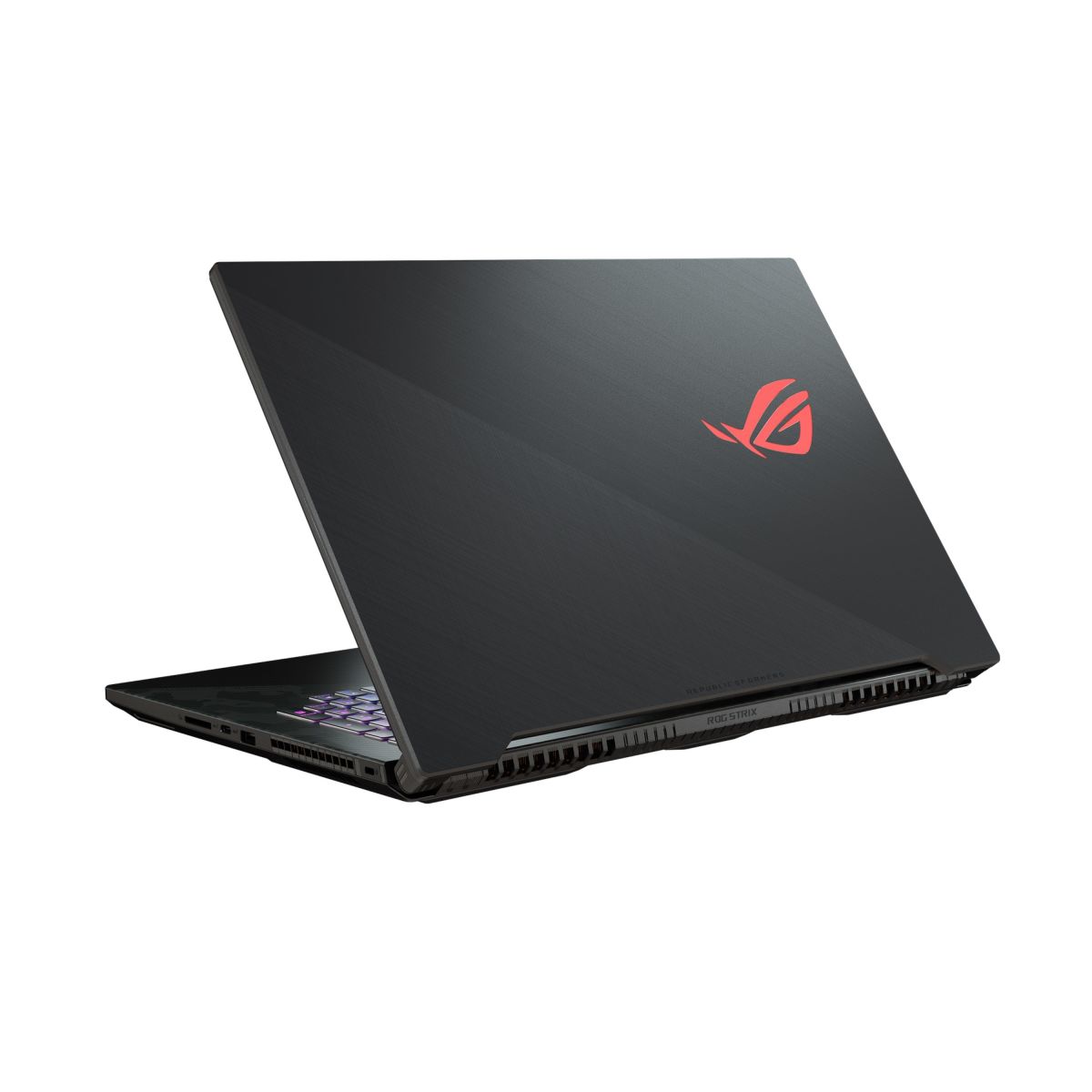

ASUS ROG GL704GV-DS74 RAM upgrade specifications

ASUS GL704GV-DS74 ASUS GL704GV-DS74 ASUS GL704GV-DS74 ASUS GL704GV-DS74 ASUS GL704GV-DS74

The ASUS ROG Strix GL704GV-DS74 gaming laptop features DDR4-SDRAM memory upgrade capabilities with two SO-DIMM slots. The maximum RAM capacity supported reaches 32 GB total. Compatible memory modules operate at 2666 MHz frequency. Specifications indicate SO-DIMM form factor for both memory slots, enabling users to upgrade from the factory configuration to the maximum supported capacity. The upgrade specifications for this ASUS ROG Strix model provide details on memory compatibility and slot availability for expanded RAM configurations.

Memory Upgrade Specifications

SpecificationValue
Memory slots2x SO-DIMM
Form factorSO-DIMM
Memory typeDDR4-SDRAM
Frequency2666 MHz
Maximum RAM32 GB
Voltage1.2V
Number of pins260-pin
InterfacePC4
PC Speed RatingPC4-2666 (PC4-21328)
Bandwidth21.3 GB/s
Laptop Release date03 February 2019

Additional Notes

  • The dual-channel architecture requires populated pairs of matching modules to achieve maximum memory bandwidth for the ASUS ROG GL704GV-DS74.
  • Internal hardware design restricts memory expansion to 32 GB regardless of operating system support for higher capacities.
  • Standard voltage DDR4 SO-DIMM modules are required as the motherboard lacks support for low-voltage or specialized overclocking profiles.
  • Installing modules with frequencies higher than 2666 MHz results in automatic downclocking to the system bus limit.
  • Accessing the SO-DIMM slots requires the removal of the entire base panel which may involve bypassing tamper-evident seals in specific regions.
  • Mixing modules with different latency ratings causes the system to default to the slowest timings for stability.
  • The physical height of the memory modules is constrained by the slim chassis design preventing the use of modules with integrated heat spreaders.
