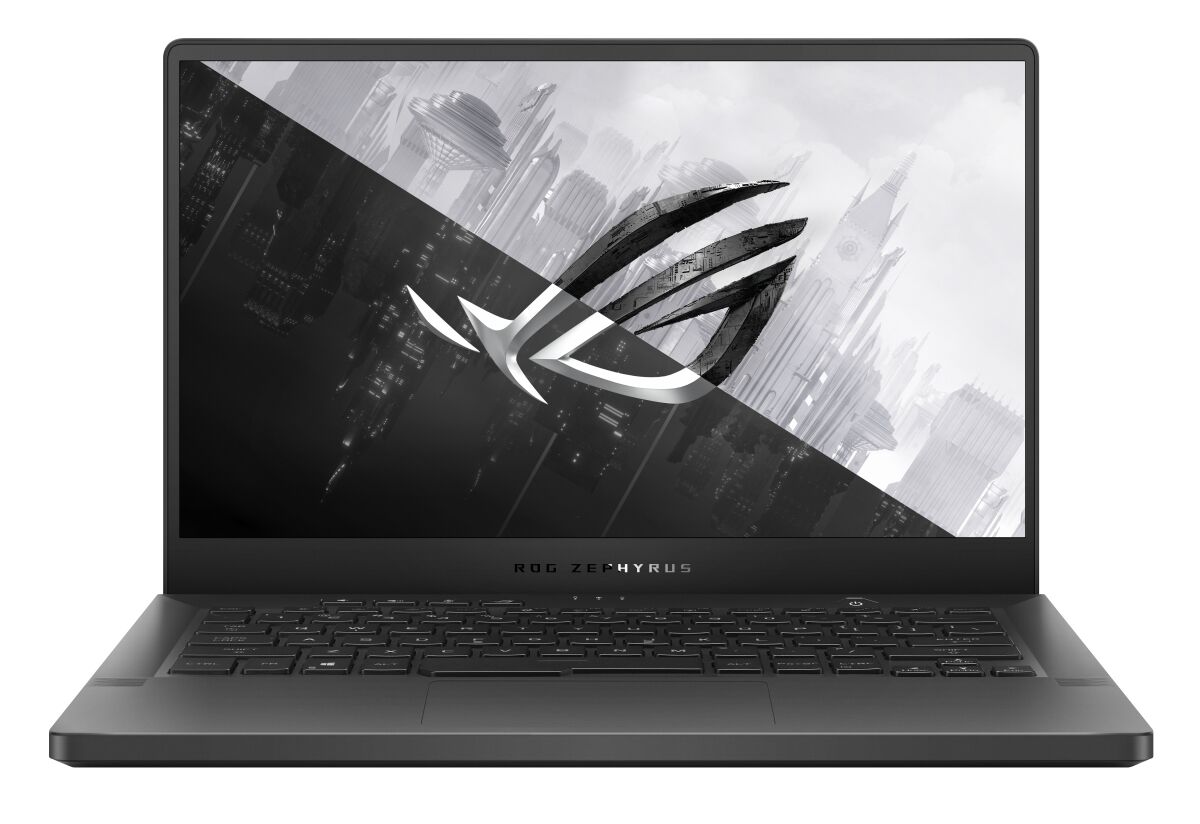

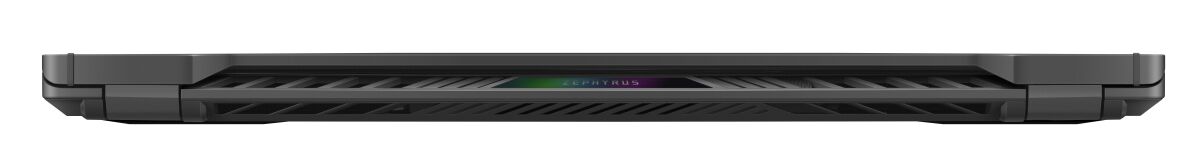

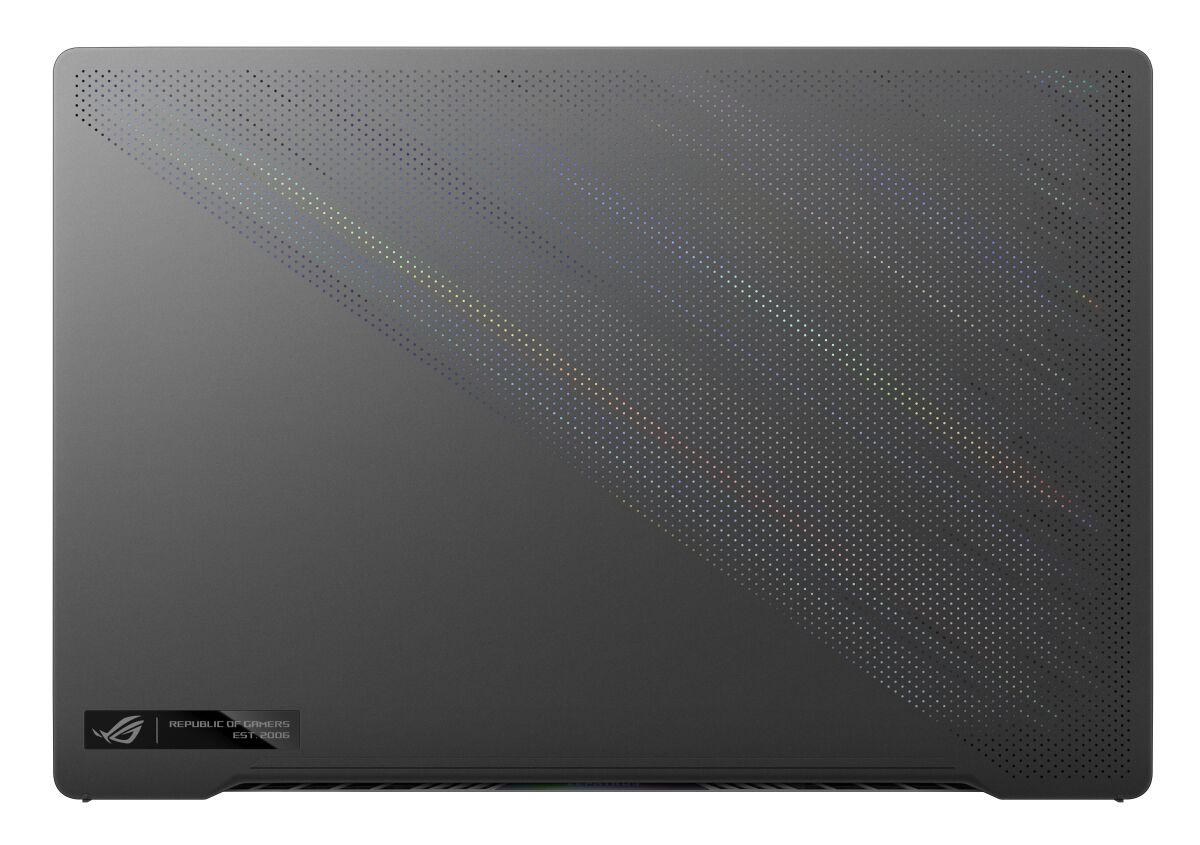

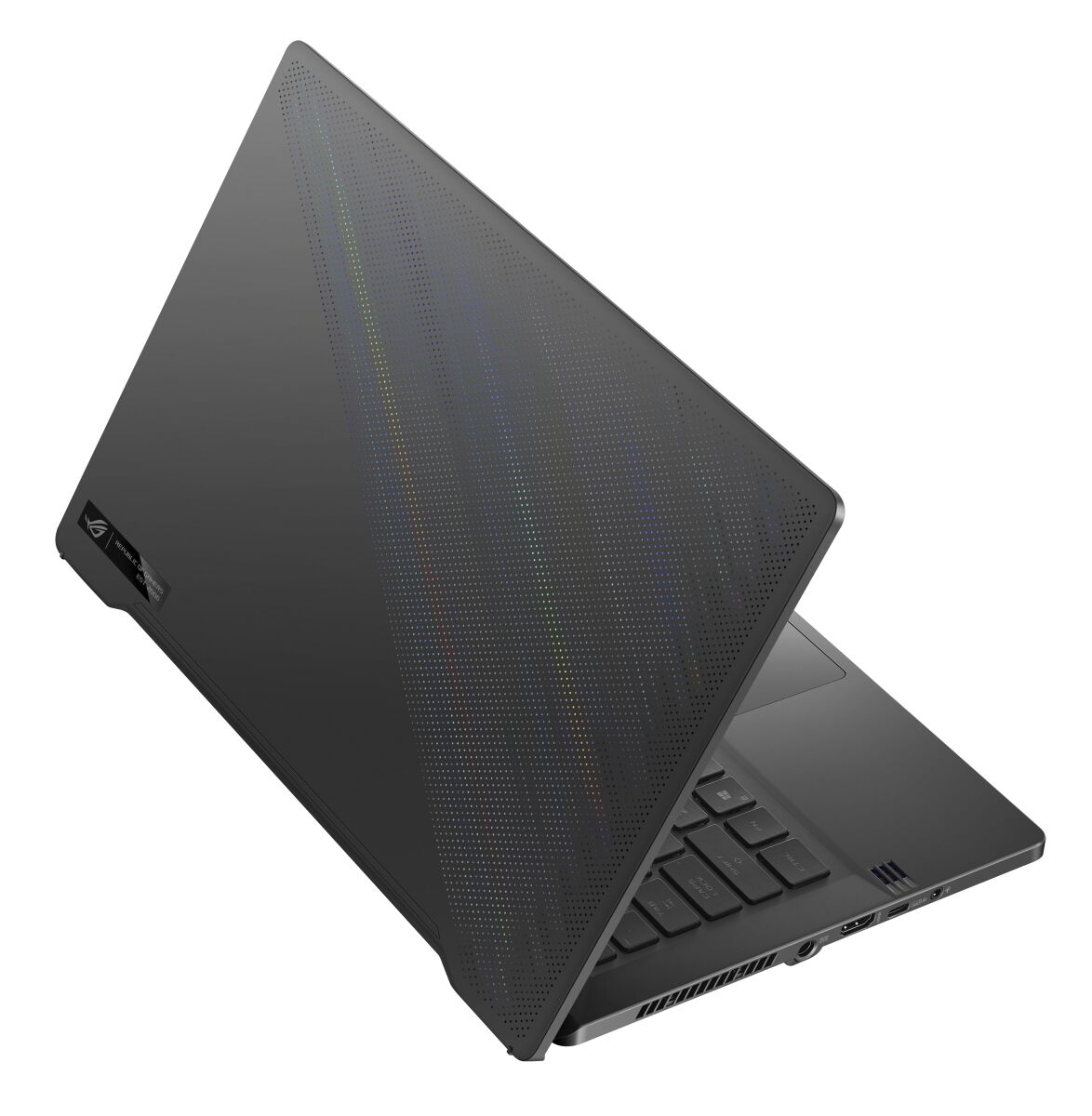

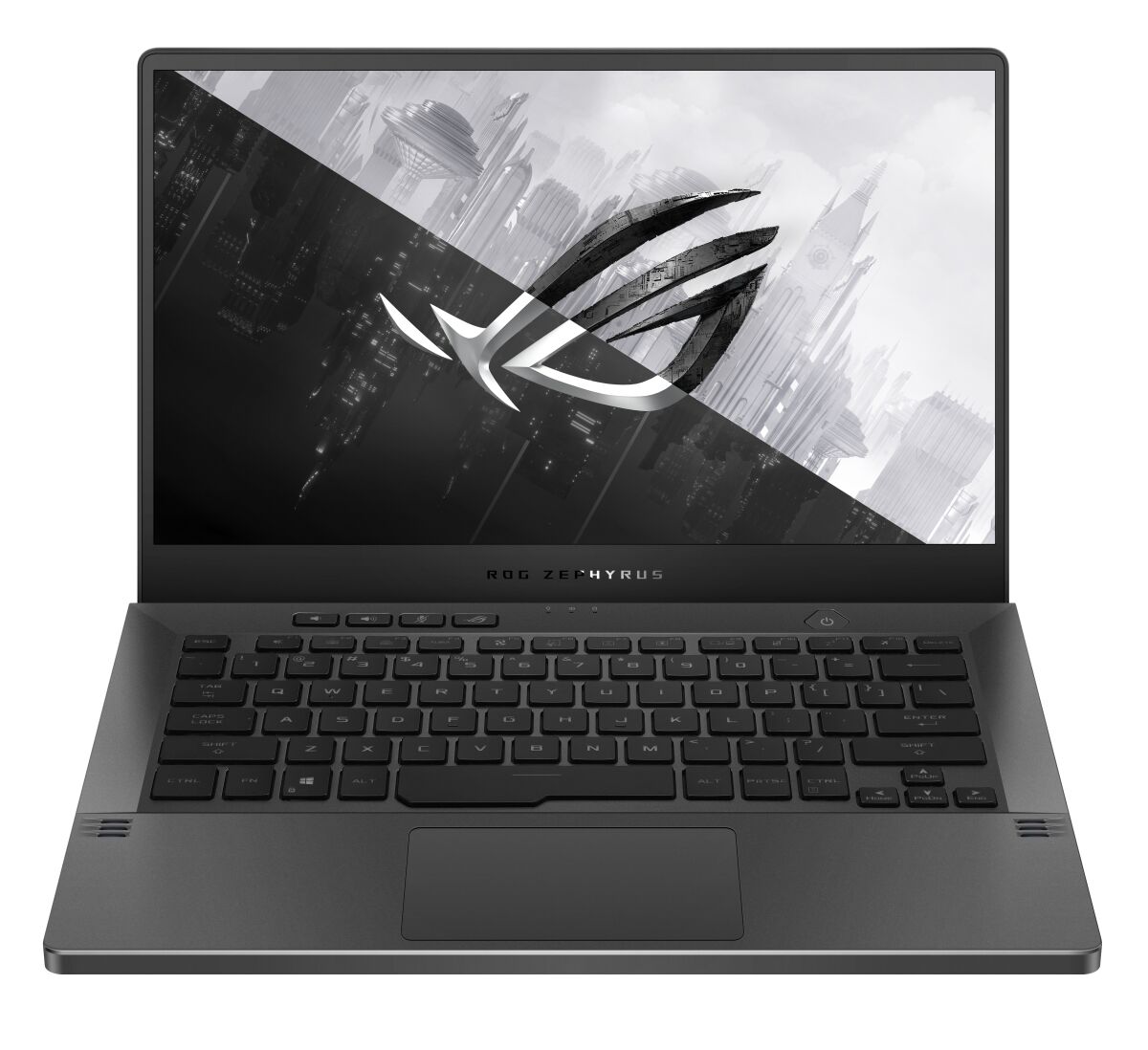

ASUS ROG GA401QM-HZ024T-BE RAM upgrade specifications

ASUS ROG Zephyrus G14 GA401QM-HZ024T-BE supports DDR4-SDRAM memory upgrades with a maximum capacity of 32 GB. The laptop features one SO-DIMM memory slot available for upgrade, compatible with DDR4-3200 MHz modules. This gaming-class ultrabook utilizes a hybrid memory configuration combining on-board soldered RAM with expandable SO-DIMM slots. Specifications indicate the upgrade slot accepts standard laptop RAM modules, enabling users to expand the system's total memory capacity beyond factory configuration for enhanced multitasking and performance capabilities.

Additional Notes

• The ASUS ROG GA401QM-HZ024T-BE employs a hybrid memory architecture where one module is soldered directly to the motherboard while the second channel operates through a single SO-DIMM slot, preventing dual-channel upgrade symmetry if the onboard capacity differs from the installed module.
• DDR4-3200 operates at PC4-25600 bandwidth specifications, delivering 25.6 GB/s theoretical throughput per channel, though asymmetric capacity configurations between soldered and socketed modules may trigger memory interleaving limitations.
• SO-DIMM modules require 260-pin physical configuration rather than standard 288-pin desktop DIMMs, with height clearances typically constrained to 30mm or less due to chassis restrictions in gaming laptops of this form factor.
• The 32 GB maximum capacity suggests the soldered module likely occupies 8 GB or 16 GB, meaning the SO-DIMM slot can accept either 16 GB or 24 GB respectively to reach the documented ceiling without exceeding memory controller specifications.
• JEDEC-standard DDR4-3200 operates at 1.2V, but aftermarket modules marketed above this frequency may default to higher voltage XMP profiles that require manual BIOS reconfiguration to ensure compatibility with AMD Ryzen mobile platforms.
• Accessing the SO-DIMM slot typically requires complete bottom panel removal, which may void manufacturer warranties if factory seals are broken or if damage occurs during disassembly on models lacking user-serviceable access doors.
• Memory rank configuration affects compatibility, as single-rank and dual-rank modules of identical capacity produce different electrical loads on the memory controller, potentially causing stability issues if mixing rank types between channels.
• CAS latency specifications matter less than strict frequency matching, since modules rated CL22 versus CL16 will both synchronize to the slowest common timing when paired in dual-channel operation.
