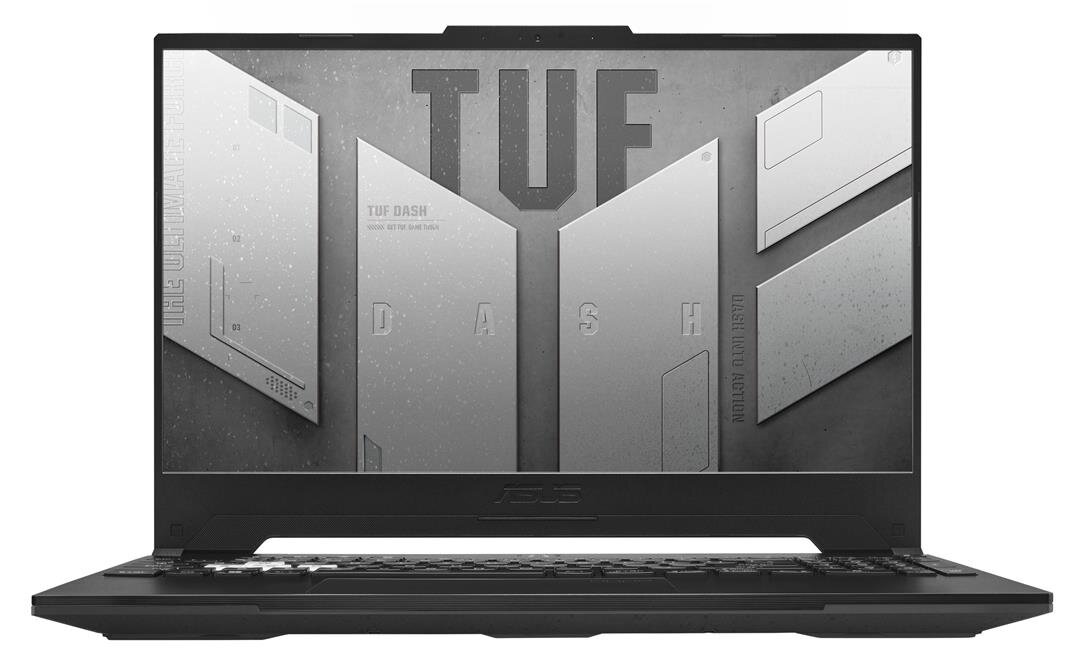

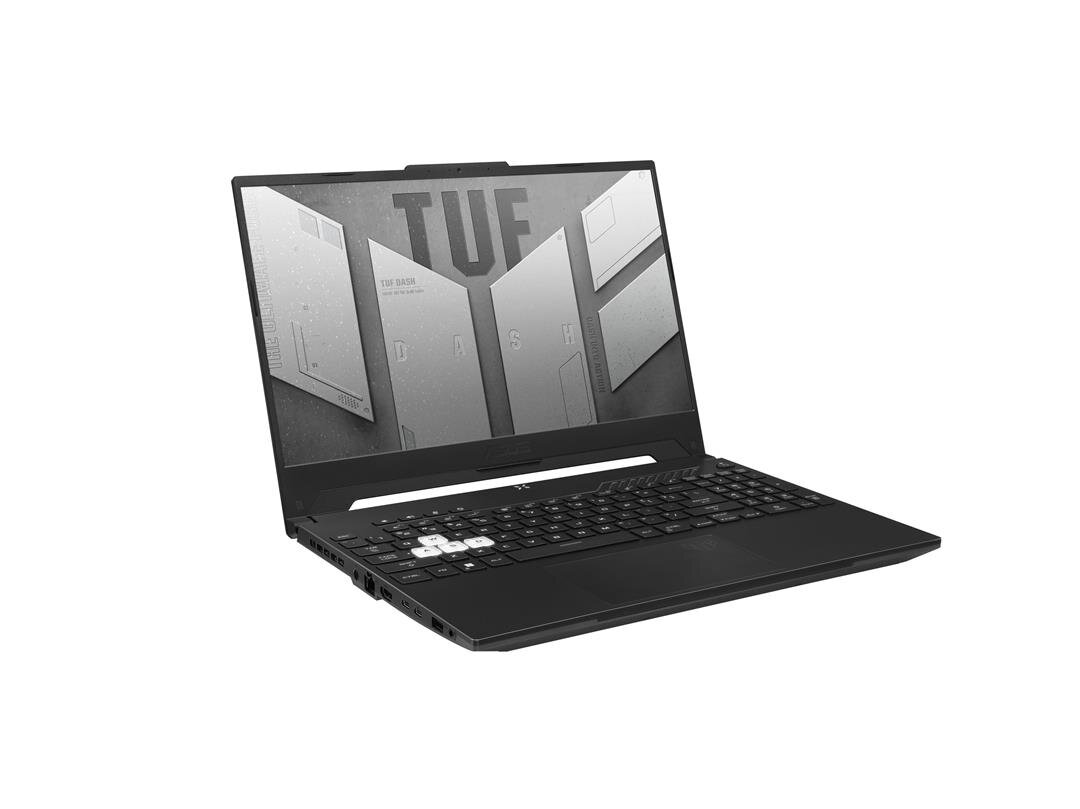

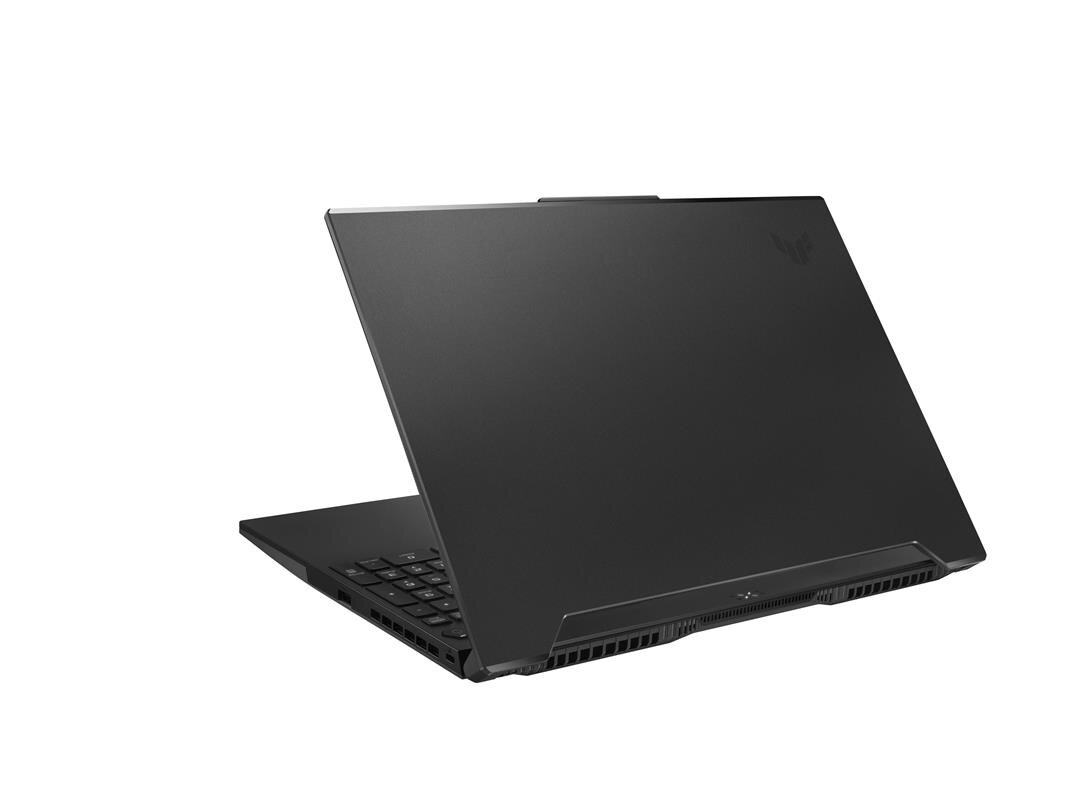

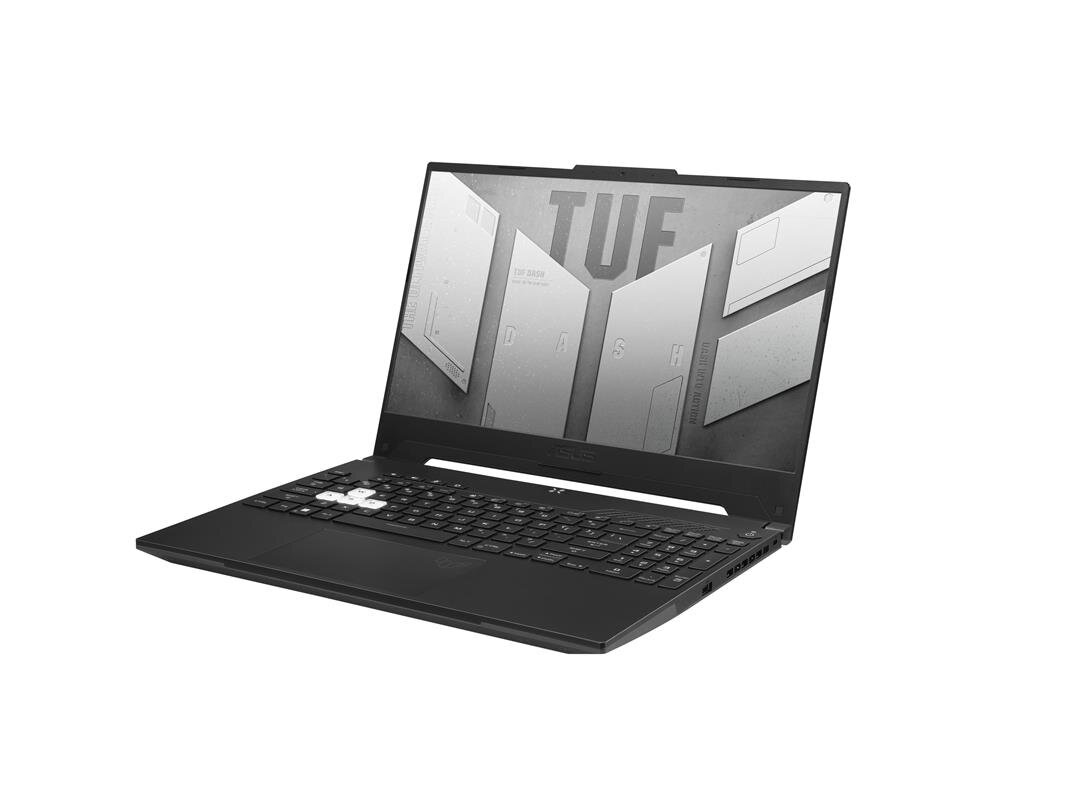

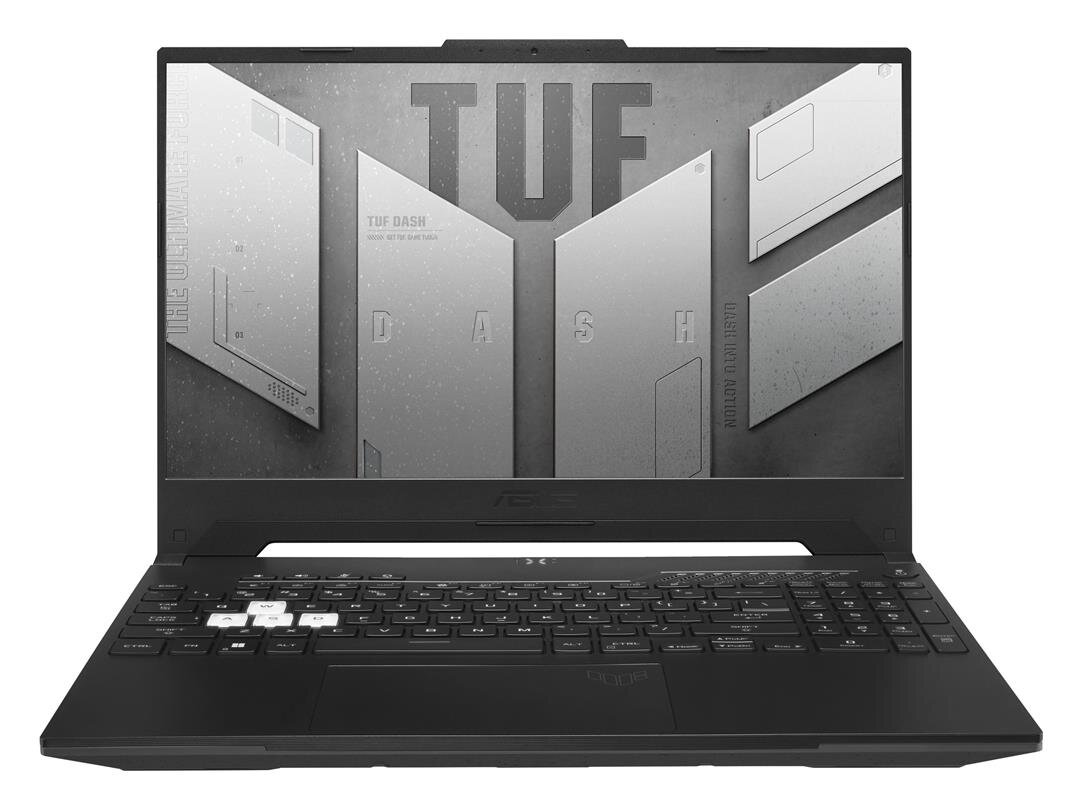

ASUS TUF Dash TUF517ZM-DB71-CA RAM upgrade specifications

ASUS TUF Dash F15 series model TUF517ZM-DB71-CA supports DDR5-SDRAM memory upgrades. The laptop features 2x SO-DIMM slots for RAM expansion. Maximum compatible memory capacity reaches 24 GB. Memory specifications include DDR5-SDRAM modules operating at 4800 MHz frequency. Upgrade options utilize standard SO-DIMM form factor components. Compatible RAM modules must meet the DDR5 standard and frequency requirements for optimal performance within the TUF517ZM-DB71-CA platform.

Additional Notes

• The ASUS TUF Dash 17 supports DDR5-SDRAM at 4800 MHz, which operates at higher voltage tolerances than DDR4. Replacement modules must meet DDR5 JEDEC specifications to avoid potential damage to the integrated memory controller.
• With 2 SO-DIMM slots and a 24 GB maximum capacity ceiling, the device cannot accommodate symmetrical 16 GB per slot configurations. Upgrade paths are constrained to single 24 GB modules or asymmetrical pairings that total no more than 24 GB.
• SO-DIMM form factor requires low-profile module heights, typically 30 mm or less. Standard desktop DDR5 DIMMs will not physically fit and attempting insertion risks permanent connector damage.
• The 4800 MHz frequency rating indicates the platform's memory bus operates at this speed natively. Third-party DDR5 modules rated for higher speeds (5200 MHz, 5600 MHz) will downclock to 4800 MHz, delivering no performance advantage while incurring additional cost.
• Installation of aftermarket memory does not typically void manufacturer warranty for this model line, provided modules meet DDR5 specifications and installation follows standard SO-DIMM seating procedures. Improper insertion or non-compliant modules may trigger warranty exclusions.
• Upgrading from factory configuration to maximum capacity does not require BIOS modification on this platform. DDR5 supports serial presence detect functionality, enabling automatic recognition of replacement or additional modules upon boot.
