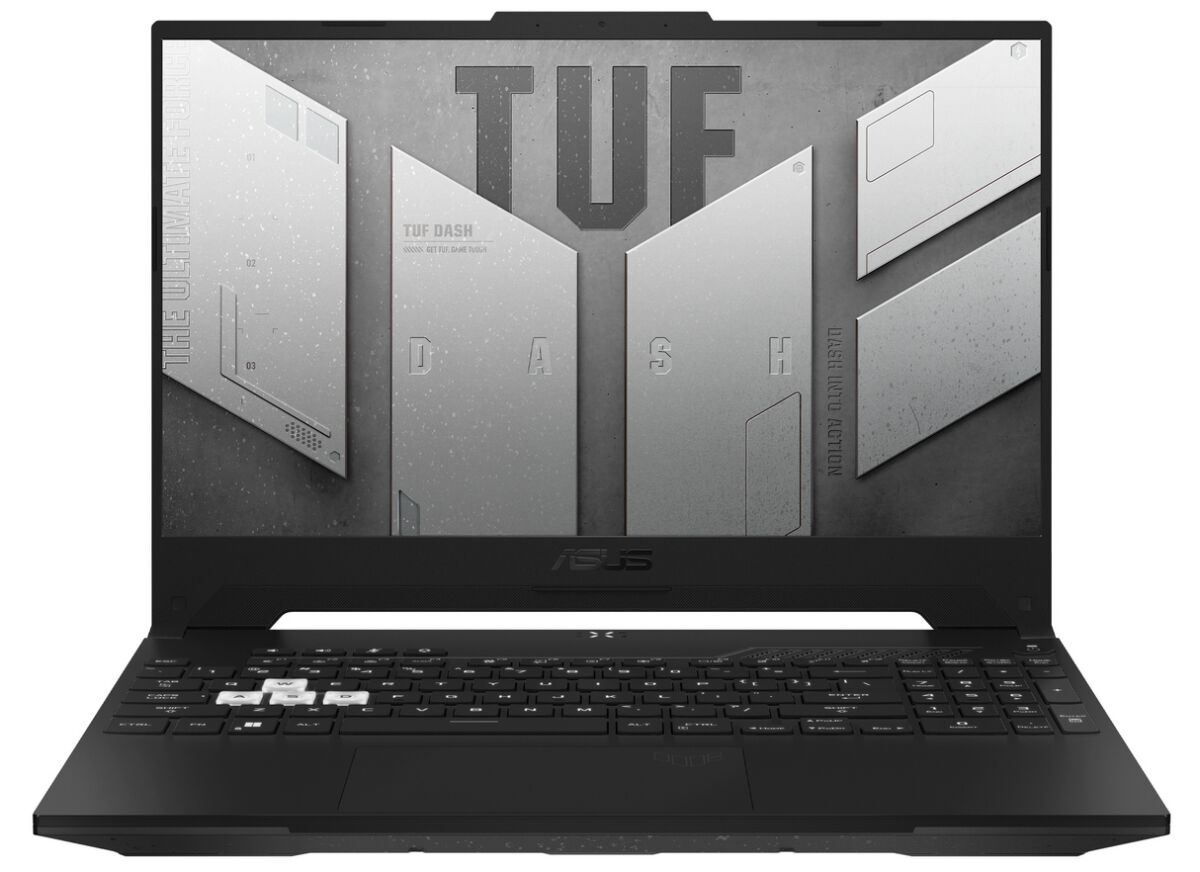

ASUS TUF Dash TUF517ZM-HN078 RAM upgrade specifications
The ASUS TUF Dash F15 series model TUF517ZM-HN078 features DDR5-SDRAM memory upgrade specifications with 2x SO-DIMM slots supporting a maximum capacity of 32 GB. The laptop accepts SO-DIMM form factor modules operating at 4800 MHz frequency. Upgrade options include compatible DDR5 memory modules that expand the system's RAM capacity for enhanced performance. Maximum memory specifications indicate support for 32 GB total capacity across the available slots, allowing users to configure memory configurations up to the specified limit.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 01 February 2022 |
Additional Notes
- Dual channel architecture requires matching module capacities to optimize memory bus bandwidth and reduce system latency.
- The absence of soldered memory on the ASUS TUF Dash TUF517ZM-HN078 allows for a full replacement of both factory modules to reach the hardware ceiling.
- Installing modules with speeds exceeding 4800 MHz will result in automatic downclocking to meet the integrated memory controller limits.
- Physical installation requires standard 262 pin hardware which is incompatible with older DDR4 slots due to the shifted structural notch.
- The 32 GB threshold indicates a firmware or chipset limitation that prevents the utilization of 32 GB or 48 GB high density single sticks.
- Power efficiency stabilizes at 1.1 volts which reduces thermal output compared to previous generation memory standards during heavy computational loads.
