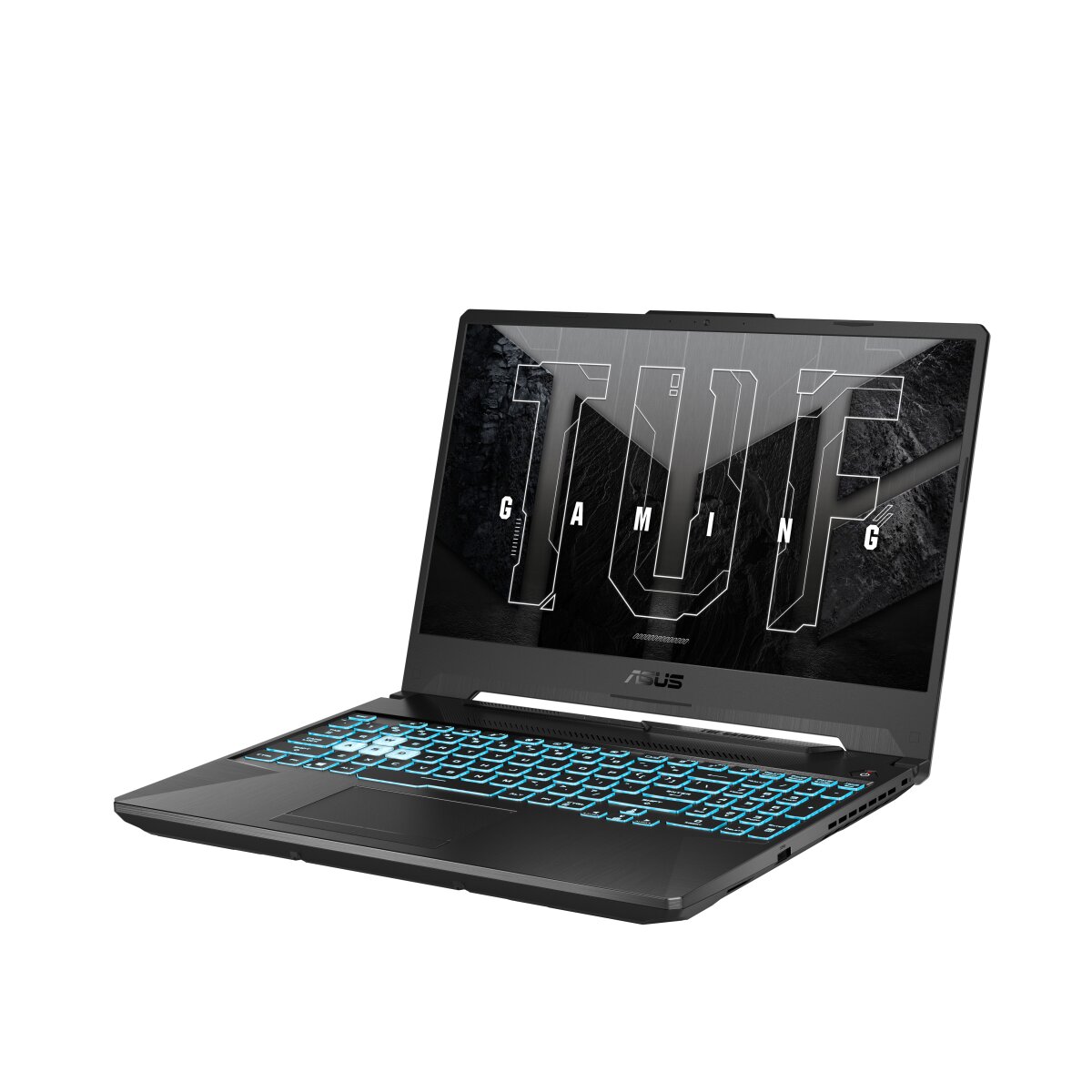

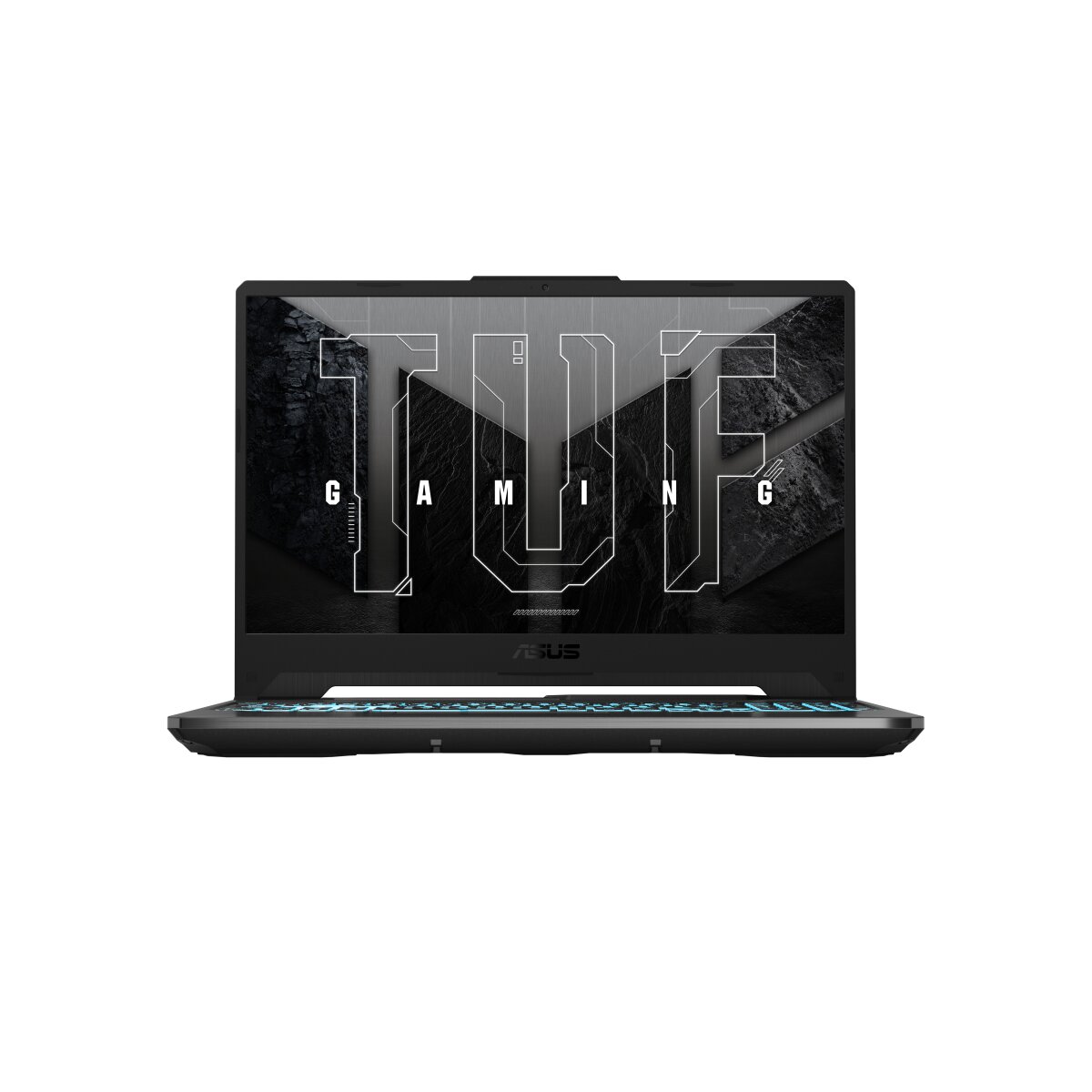

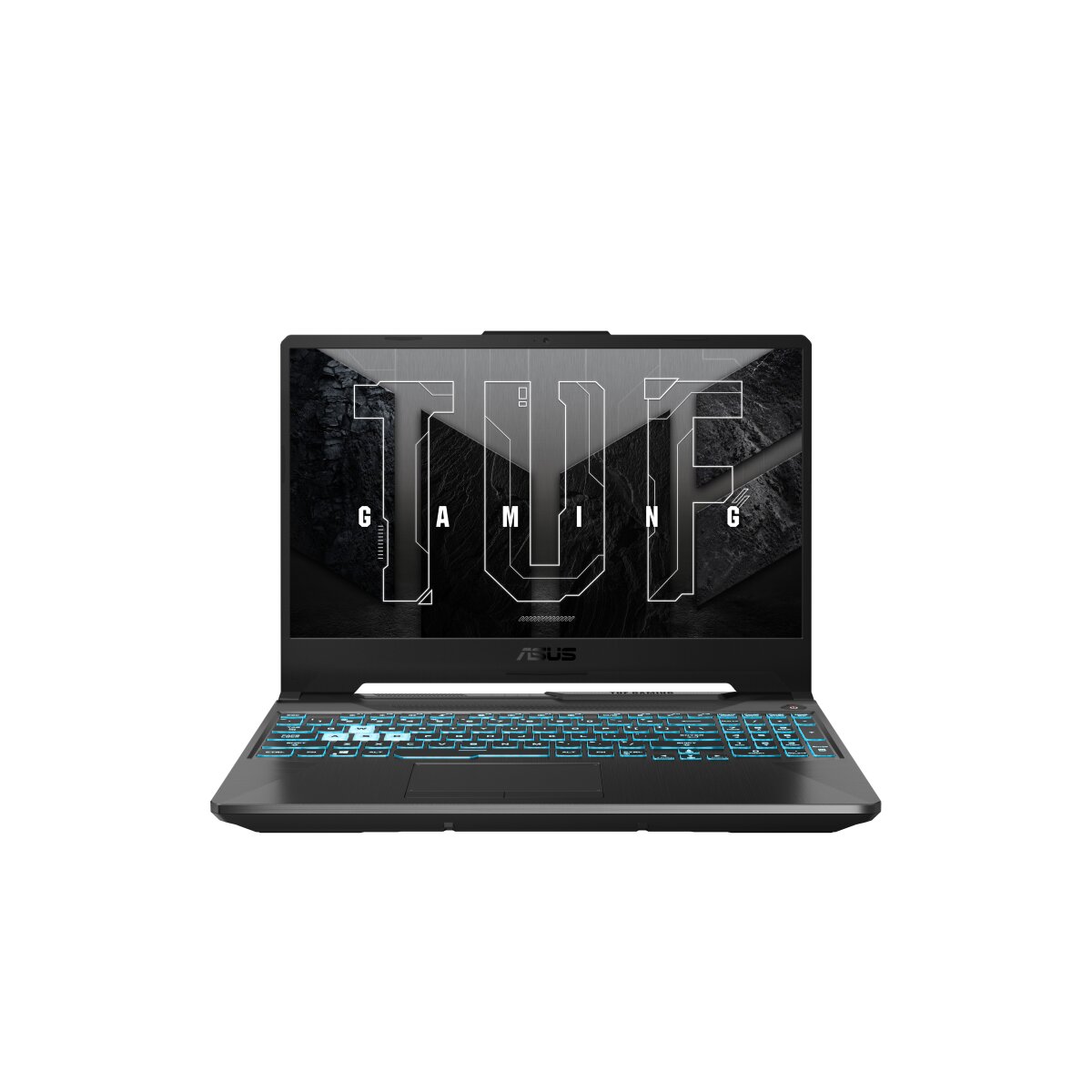

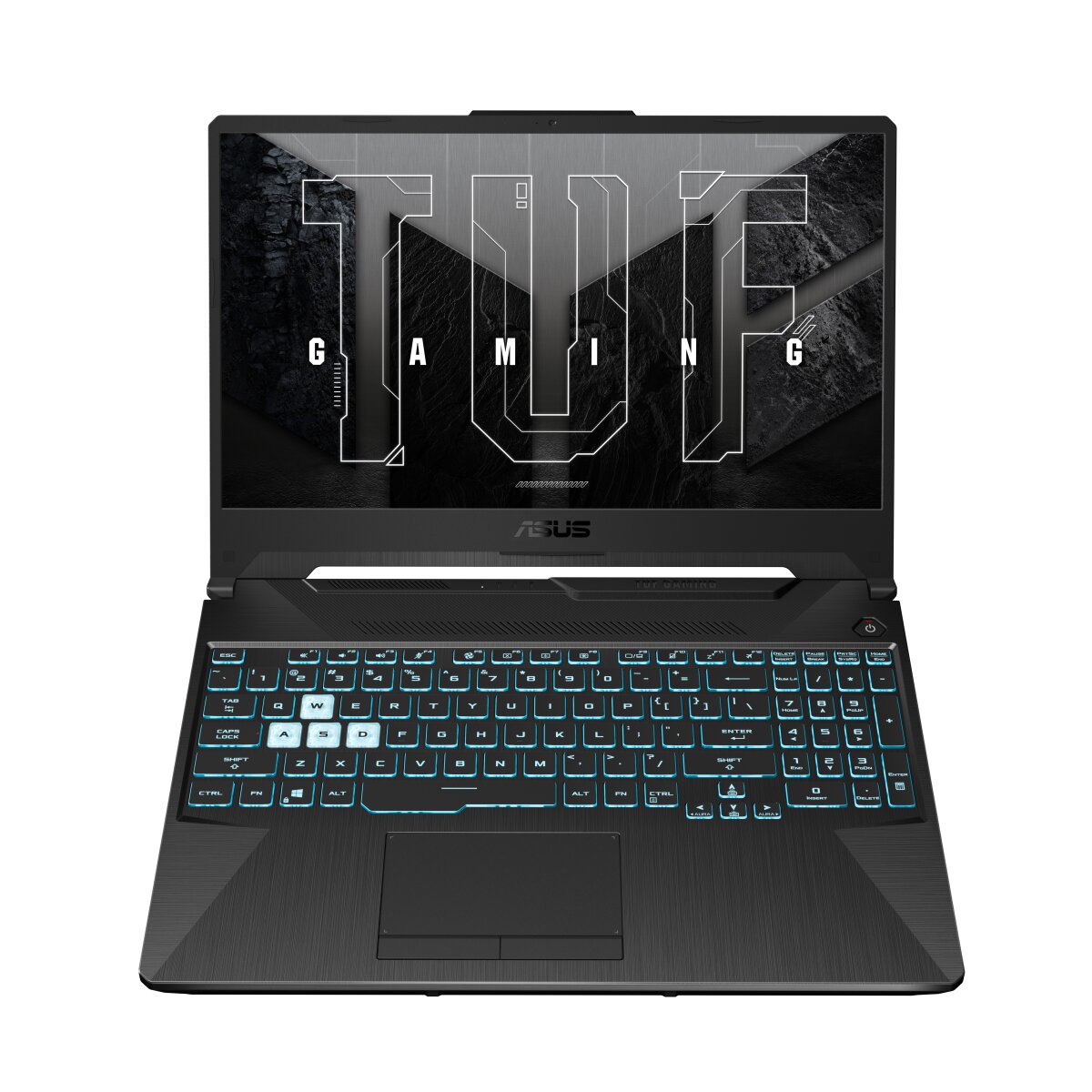

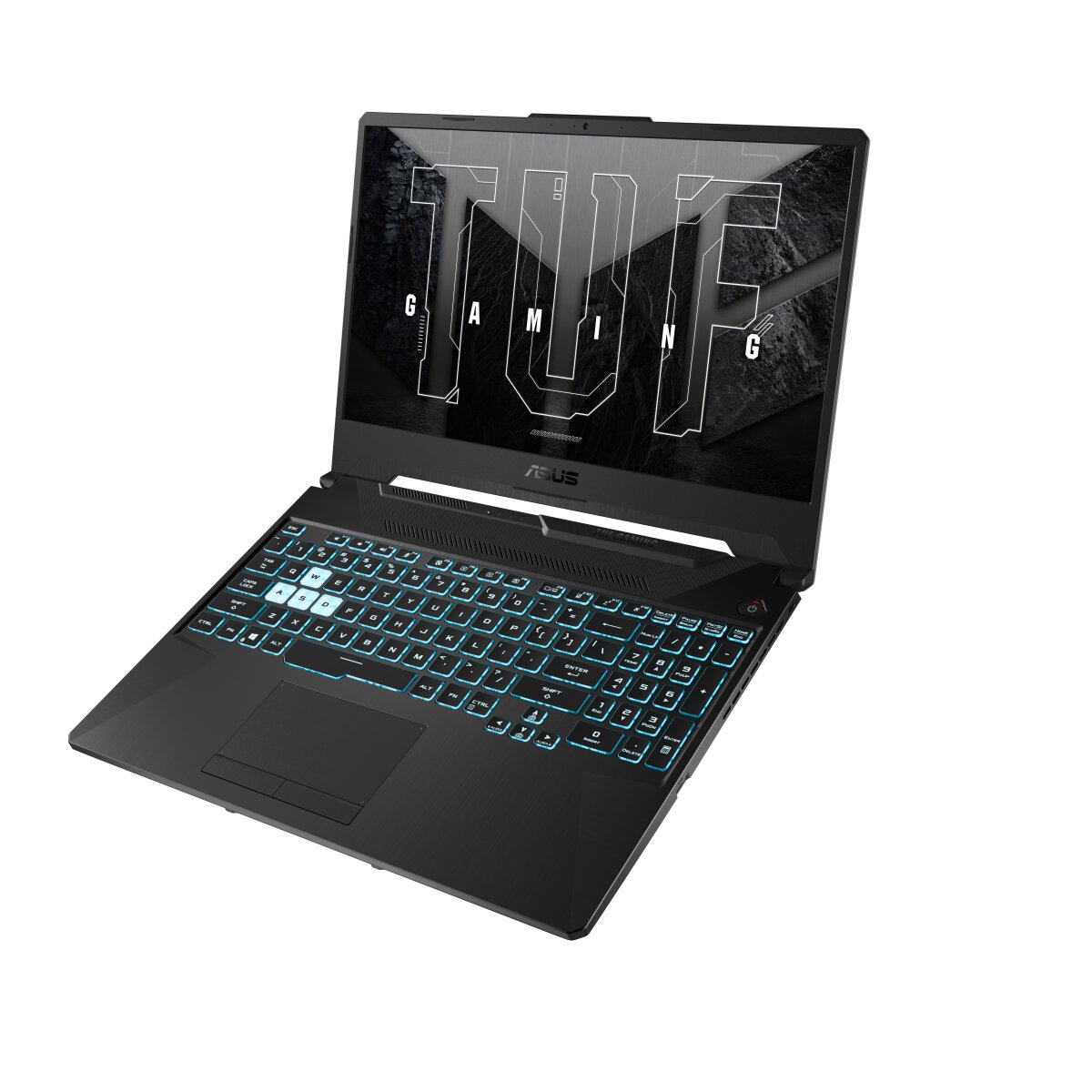

ASUS TUF Gaming TUF506HF-HN012 RAM upgrade specifications
ASUS TUF Gaming F15 series model TUF506HF-HN012 supports DDR4-SDRAM memory upgrades. The laptop contains 2x SO-DIMM slots for RAM expansion, with maximum memory capacity of 32 GB. Compatible memory operates at 3200 MHz frequency and uses SO-DIMM form factor. Specifications enable users to upgrade memory modules for enhanced system performance and multitasking capabilities on this gaming notebook.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 30 January 2023 |
Additional Notes
- Dual channel memory architecture is only achievable when 2 identical modules are installed to maximize the available memory bandwidth.
- The presence of 2 physical slots implies that reaching the 32 GB maximum requires the removal and replacement of any existing low capacity modules.
- Installation of memory modules with frequencies higher than 3200 MHz will result in automatic downclocking to match the system bus speed limits.
- Upgrading the ASUS TUF Gaming TUF506HF-HN012 utilizes the SO-DIMM form factor which is specifically designed for small form factor clearance within mobile chassis.
- Mixing modules with different CAS latencies will force the system to operate at the timings of the slowest installed stick.
- The 32 GB ceiling represents a firmware or chipset limitation that prevents the recognition of 32 GB single sticks or 64 GB total kits.
- Accessing the internal memory slots typically requires the removal of the entire base plate which exposes other sensitive components to potential static discharge.
