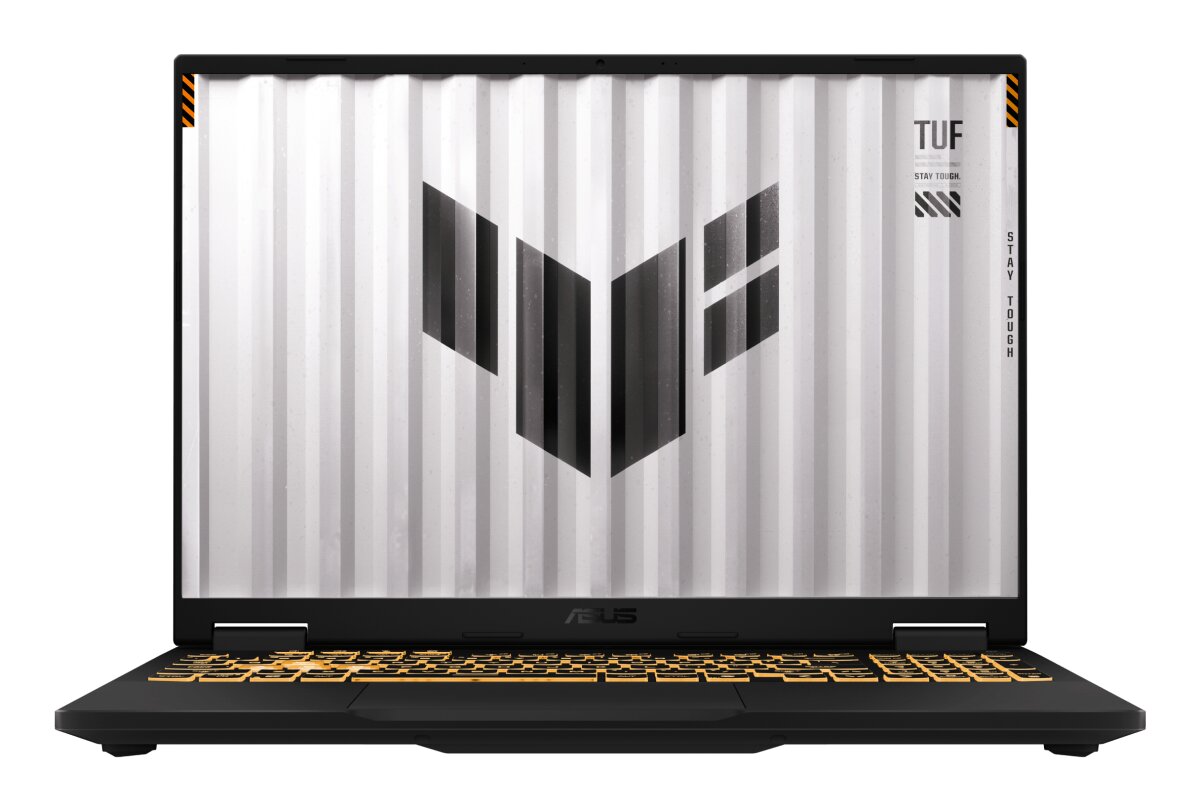

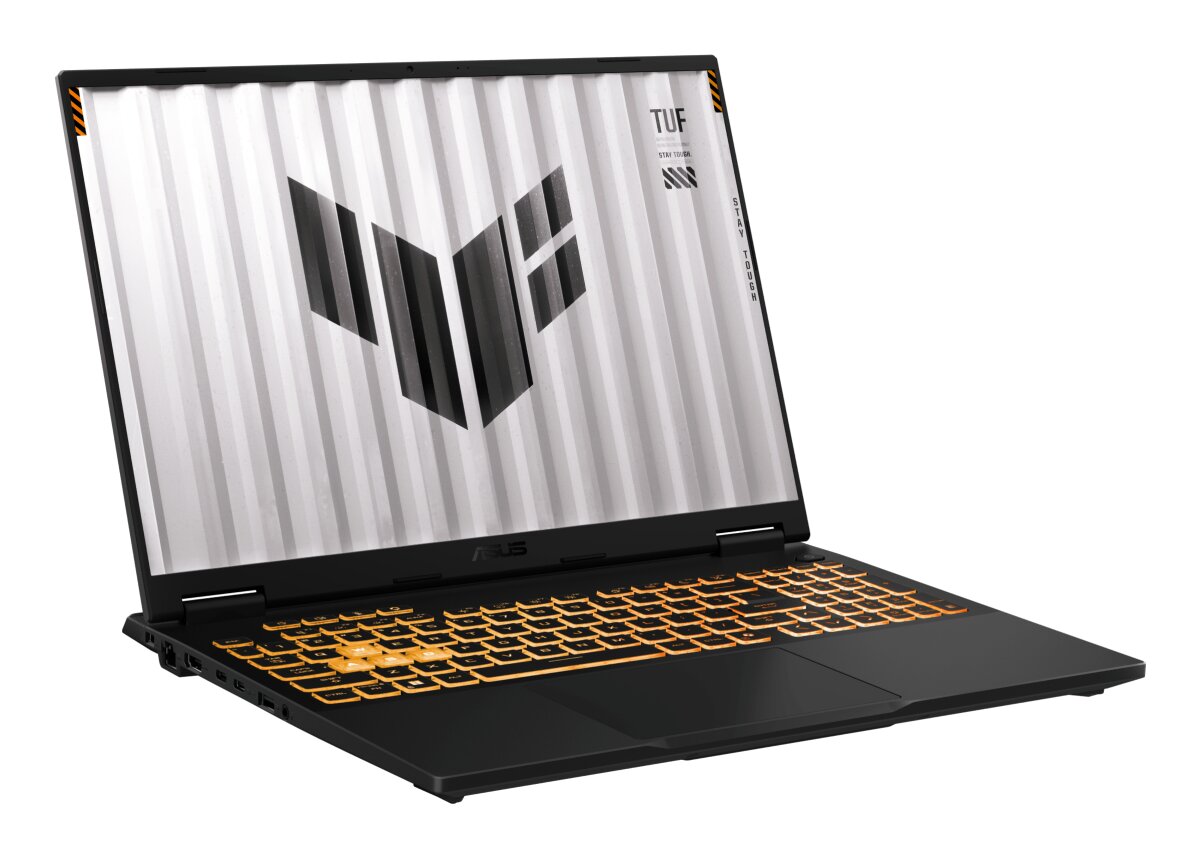

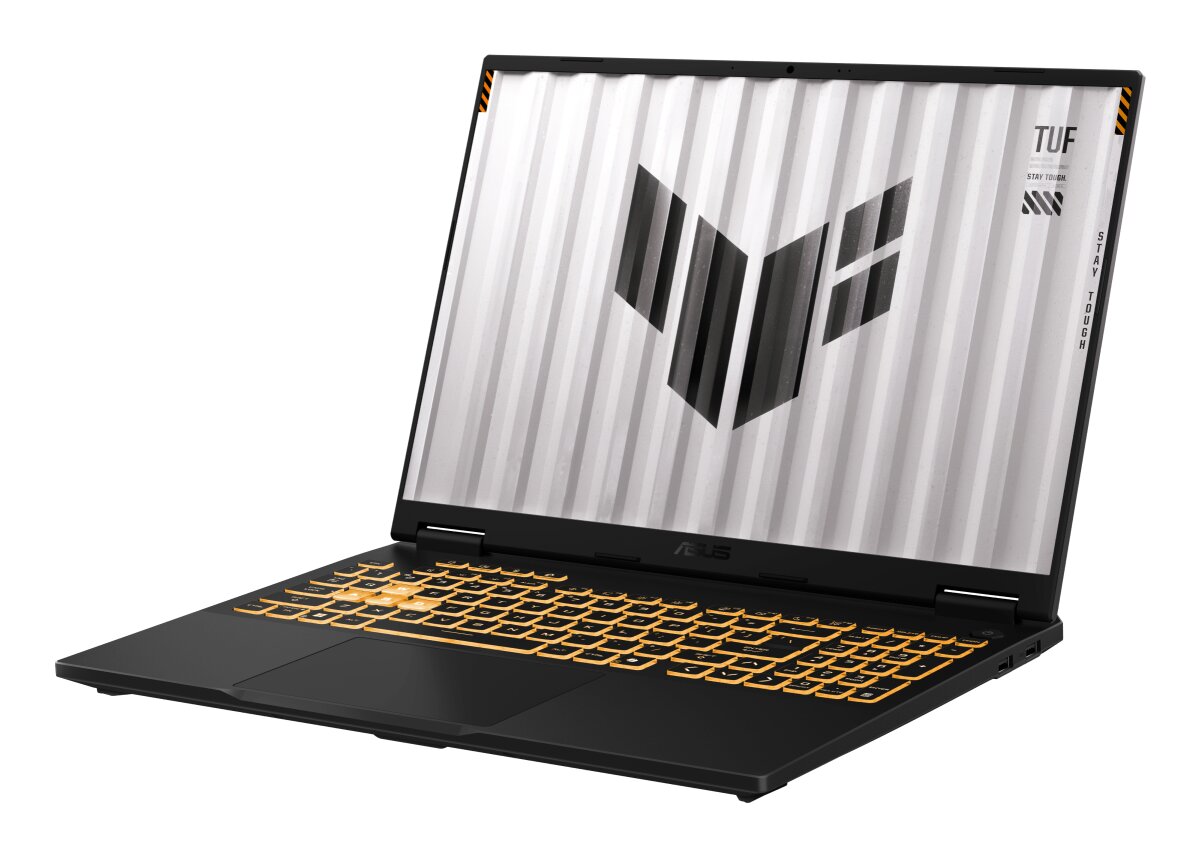

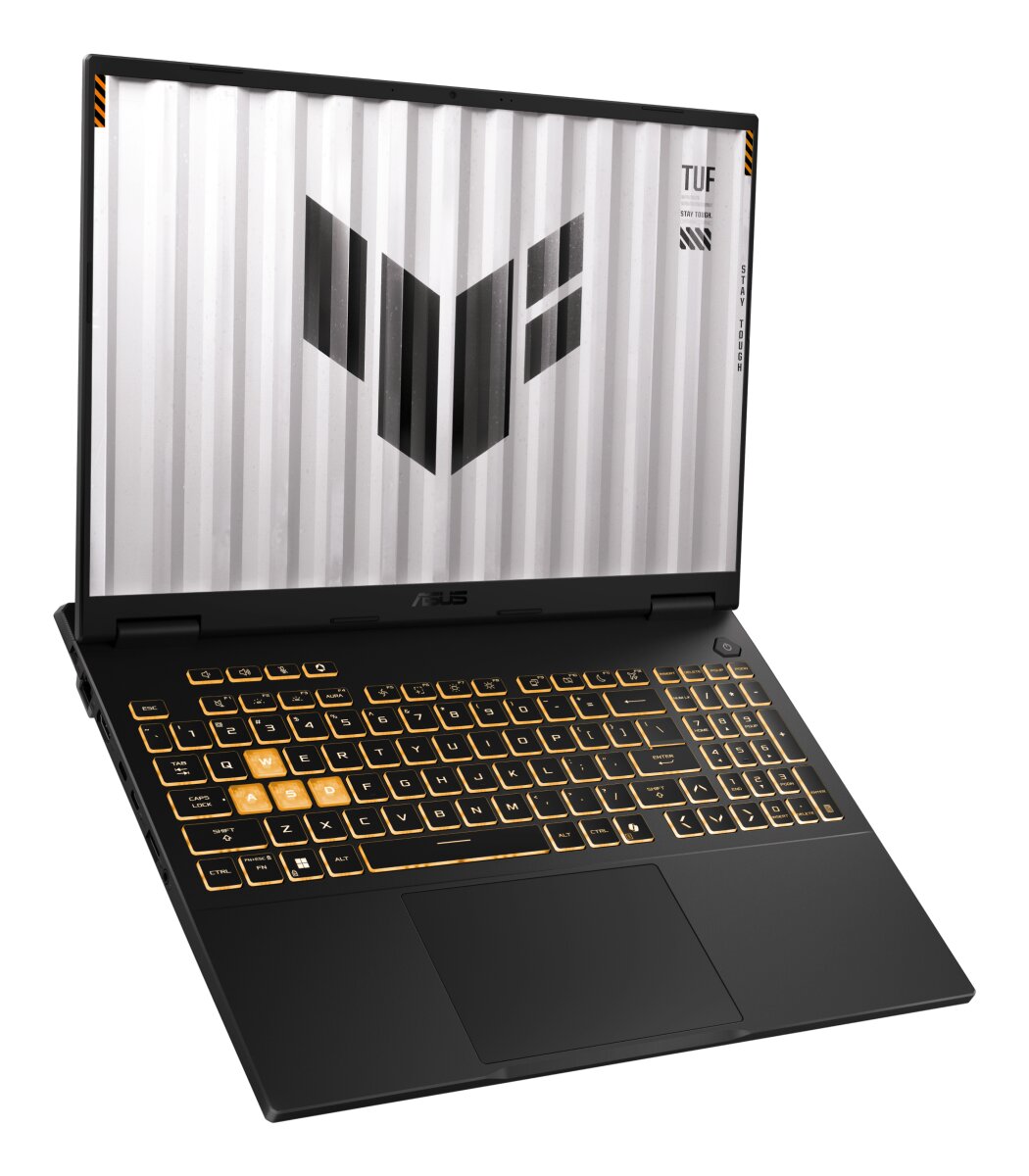

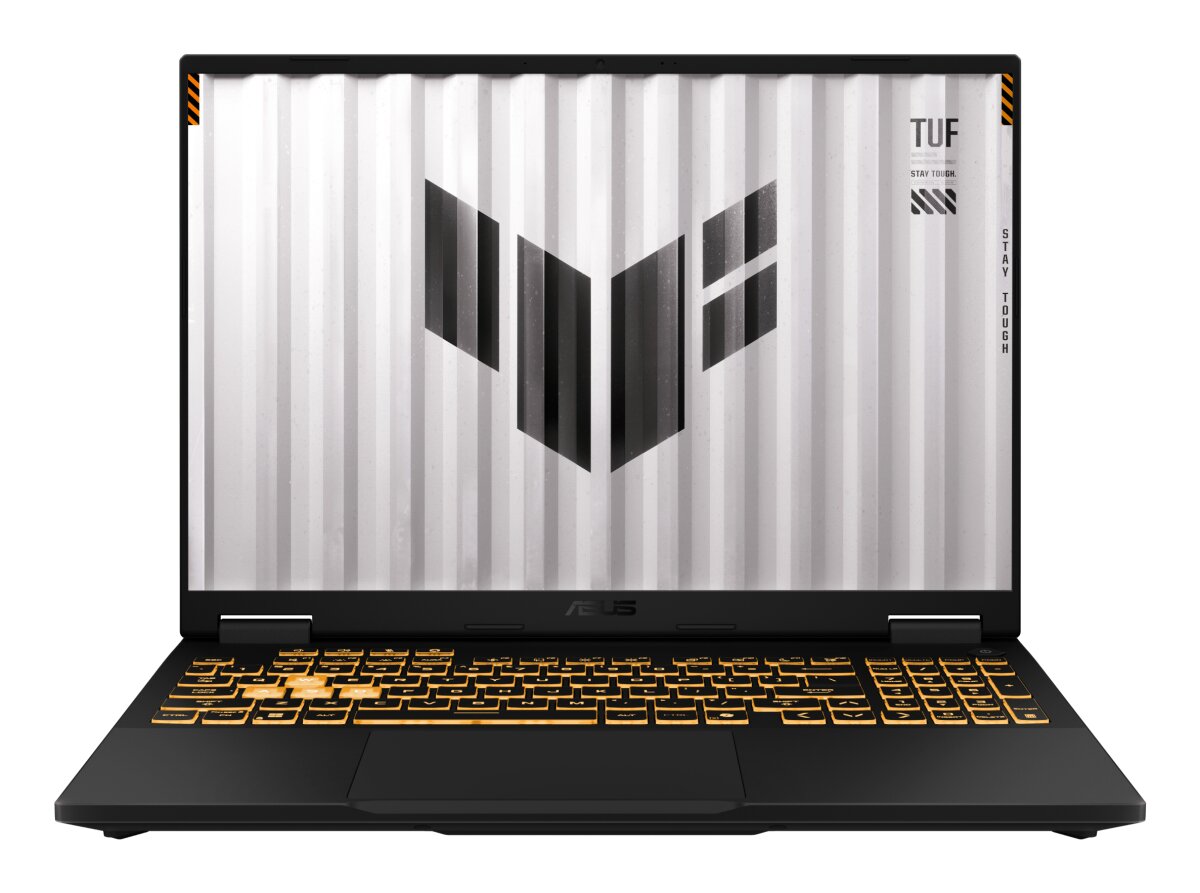

ASUS TUF Gaming FX608JHR-RV002W RAM upgrade specifications
ASUS TUF Gaming F16 series FX608JHR-RV002W laptop features DDR5-SDRAM memory upgrade specifications. The model contains 2 SO-DIMM slots for RAM expansion. Maximum compatible memory capacity reaches 64 GB through dual-channel configuration. Standard frequency operates at 5600 MHz. SO-DIMM form factor specifications ensure compatibility with DDR5 modules. RAM upgrade slots support modular memory installation for enhanced system performance and multitasking capabilities on the TUF Gaming F16 platform.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 5600 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-5600 (PC5-44800) |
| Bandwidth | 44.8 GB/s |
Additional Notes
- The ASUS TUF Gaming FX608JHR-RV002W supports dual-channel memory architecture through its 2 SO-DIMM configuration, requiring matched pairs for optimal bandwidth utilization.
- DDR5 modules operate at 1.1V standard voltage, incompatible with DDR4 slots due to different pin configurations and notch positions.
- The 64 GB maximum capacity constraint limits configurations to either 2x32 GB modules or smaller paired combinations.
- 5600 MHz represents the JEDEC-standard frequency floor for DDR5, with higher-speed modules automatically downclocking to this speed if installed.
- SO-DIMM format modules measure 69.6 mm in length, substantially shorter than desktop DIMM equivalents, preventing cross-compatibility.
- Installing non-matching capacity modules across slots forces operation in asymmetric dual-channel mode, reducing available bandwidth compared to symmetric configurations.
- DDR5 architecture integrates voltage regulation directly on each module rather than the motherboard, affecting thermal characteristics during sustained workloads.
- The 5600 MHz data rate translates to effective bandwidth of 44.8 GB/s per channel when both slots operate synchronously.
- Mixing modules with different timing specifications causes the memory controller to adopt the slowest common timings across all installed capacity.
- Single-rank versus dual-rank module topology impacts interleaving efficiency, with mixed configurations potentially degrading sequential access patterns.
- Manufacturer-installed modules typically void warranty coverage if removed before authorized service periods expire in certain regions.
- Non-ECC SO-DIMM modules lack error correction capabilities, standard for consumer-grade gaming platforms prioritizing latency over data integrity.
