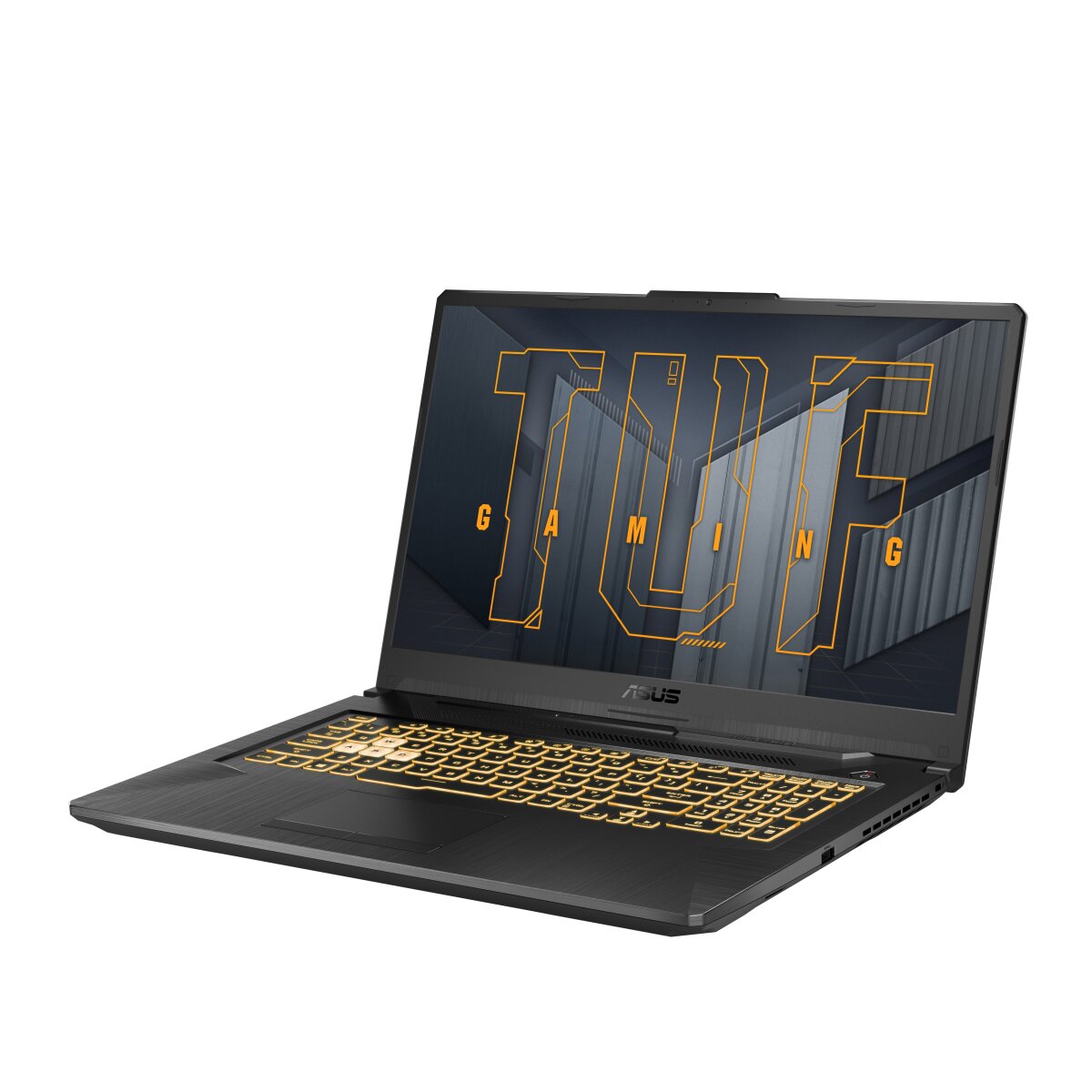

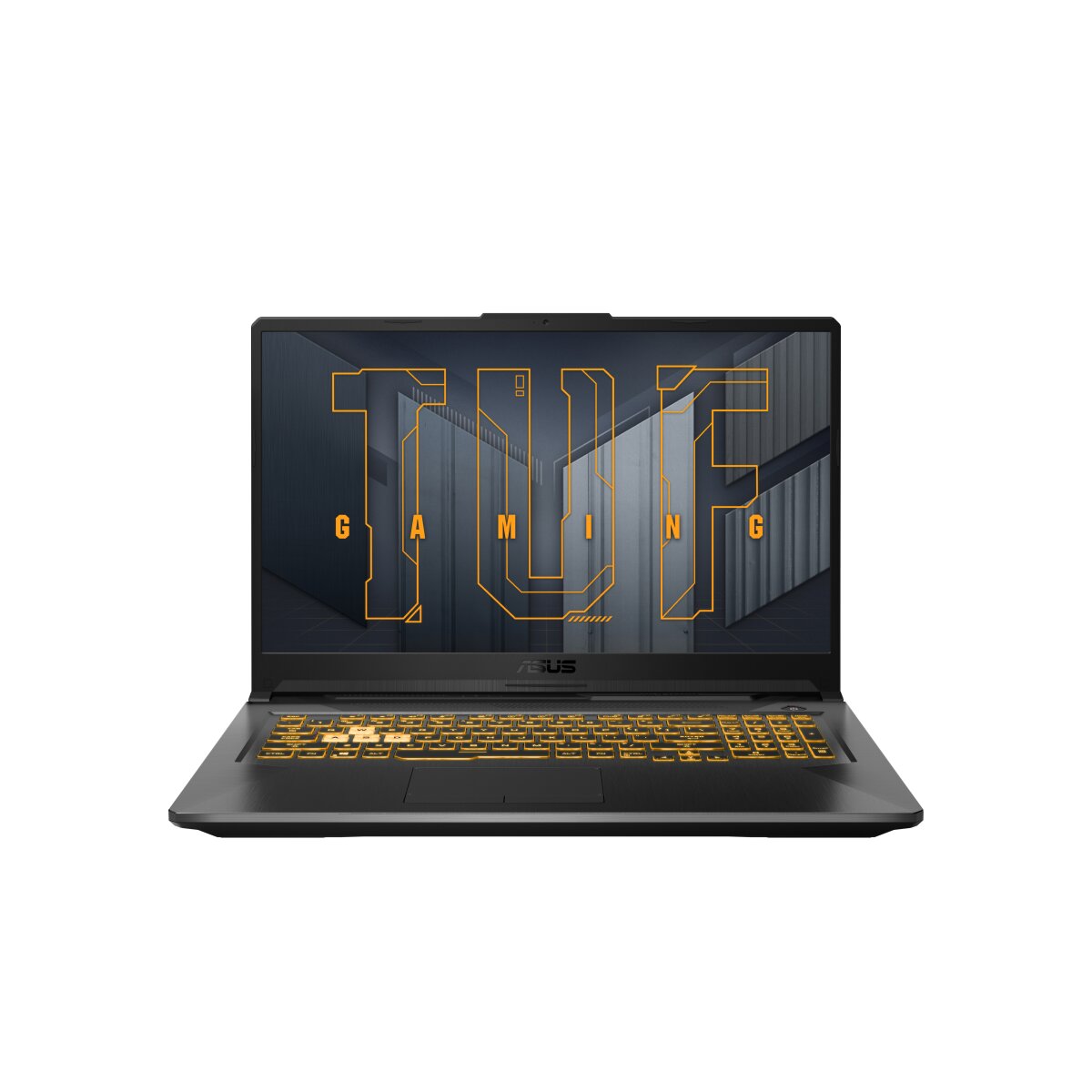

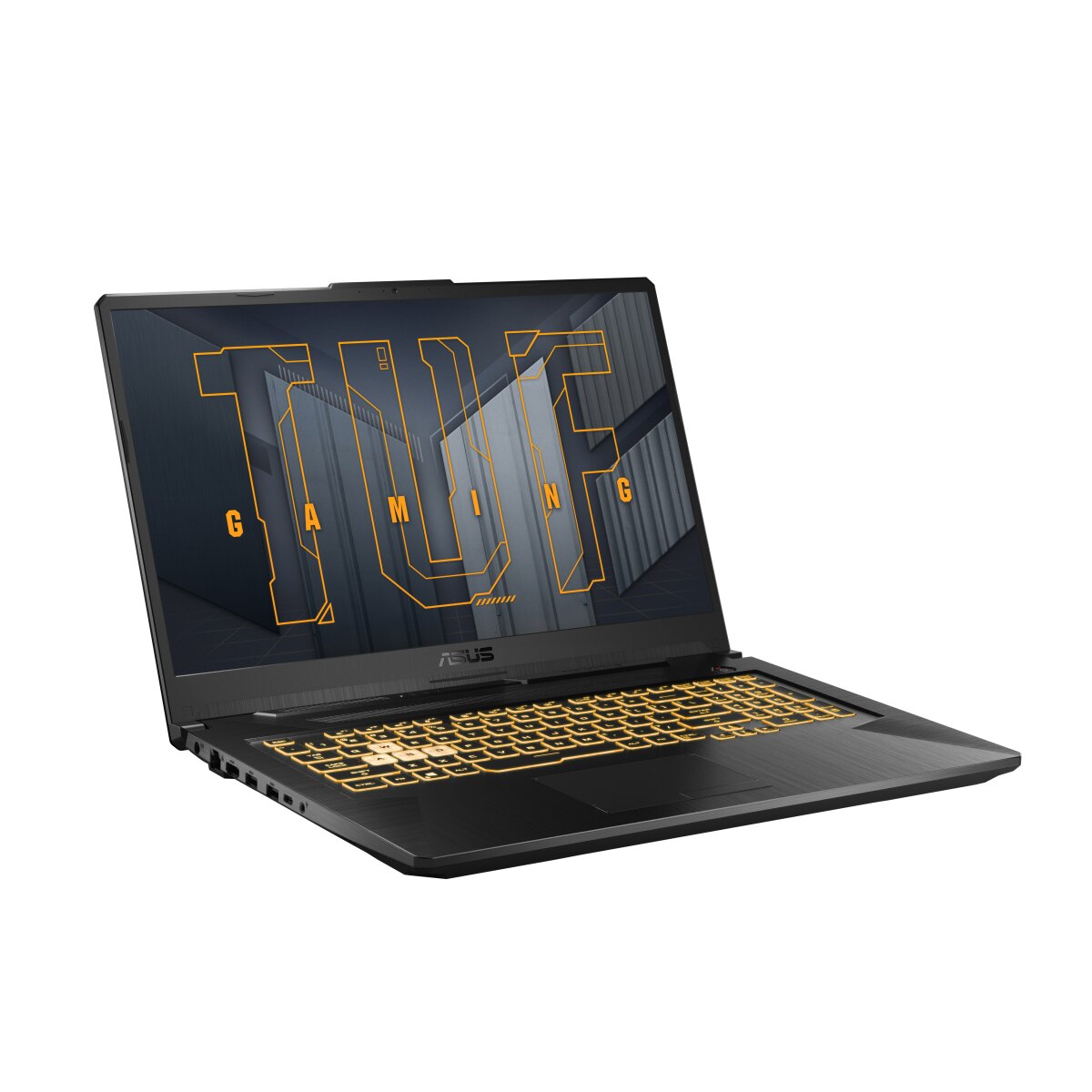

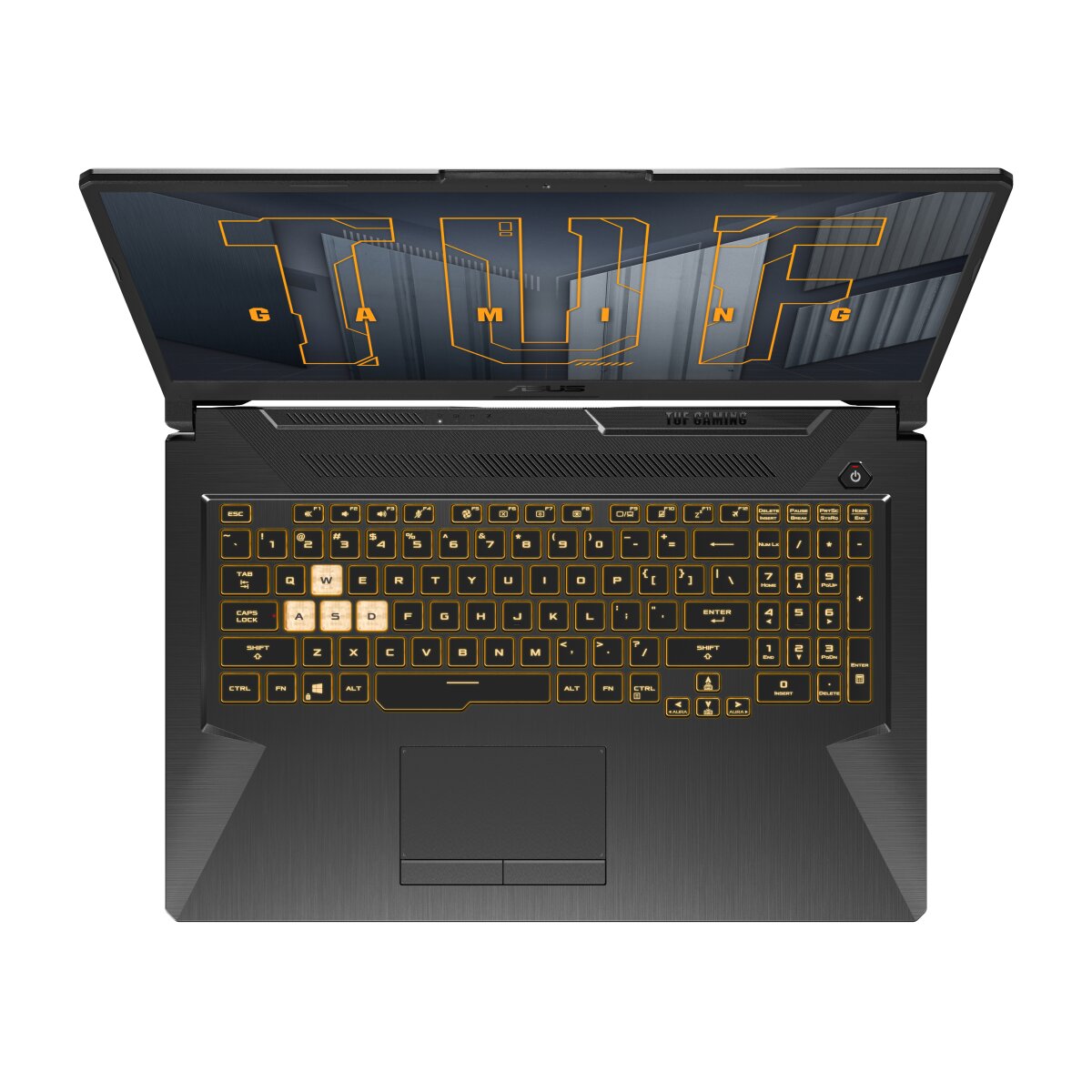

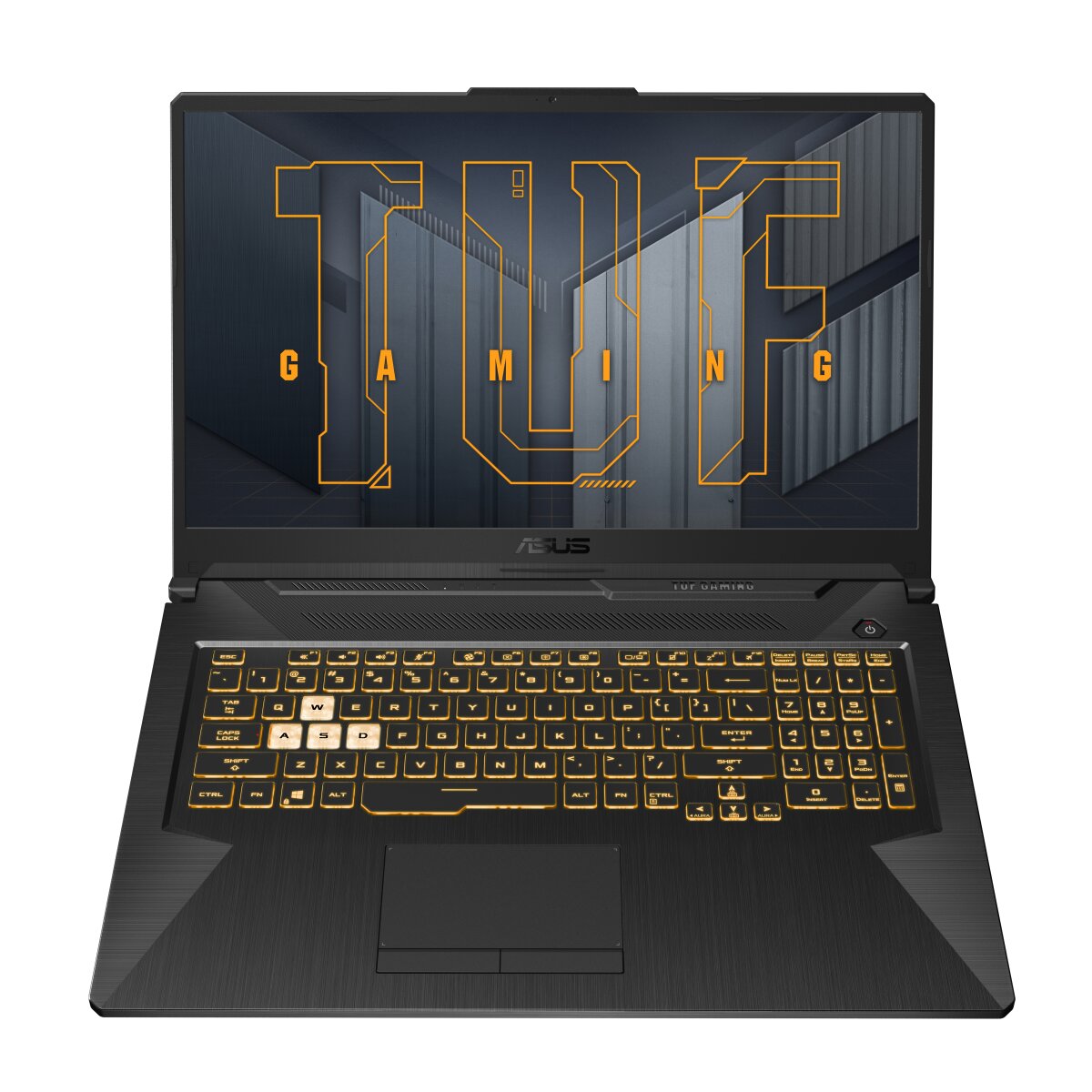

ASUS TUF Gaming FX706HEB-HX086T RAM upgrade specifications
ASUS TUF Gaming F17 series FX706HEB-HX086T laptop features DDR4-SDRAM memory upgrade capabilities. The system contains 2x SO-DIMM slots for memory expansion. Maximum supported RAM capacity reaches 32 GB total. Compatible memory modules operate at 3200 MHz frequency with SO-DIMM form factor. Specifications indicate the FX706HEB-HX086T supports DDR4 upgrades across both available slots to achieve maximum memory configuration.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 28 July 2021 |
Additional Notes
- The dual slot architecture requires identical module capacities to enable dual channel memory mode and prevent bandwidth throttling.
- Maximum capacity thresholds indicate the motherboard firmware limits memory addressability regardless of individual module density.
- Installed components must support low voltage operation to maintain stability within the established thermal envelope of the ASUS TUF Gaming FX706HEB-HX086T chassis.
- Mixing modules with mismatched latency timings forces the system to default to the slowest common denominator affecting overall frame rate stability.
- Physical installation necessitates a grounded workspace to avoid electrostatic discharge damage to the integrated circuit boards during the swap.
- Upgrading beyond the factory configuration requires verified compatibility with the existing BIOS version to ensure correct timing recognition.
- The 3200 MHz frequency ceiling dictates that higher speed modules will automatically downclock to match the hardware controller limit.
- Full utilization of the 32 GB ceiling involves the removal of existing modules as no additional expansion ports exist for supplemental storage.
