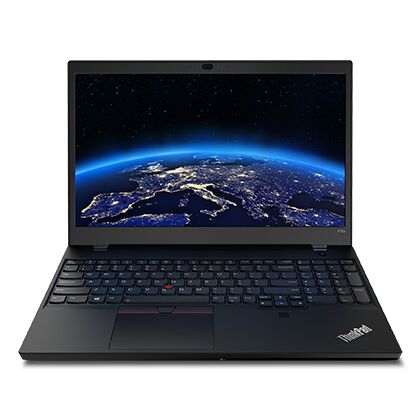

LENOVO ThinkPad P15v Gen 2 RAM upgrade specifications
LENOVO ThinkPad P Series P15v Gen 2 features two SO-DIMM memory slots supporting DDR4-SDRAM specifications. The upgrade specifications indicate maximum RAM capacity of 64 GB with DDR4 memory operating at 3200 MHz frequency. Compatible memory modules utilize the SO-DIMM form factor for laptop installation. Current upgrade specifications provide memory slot configuration and maximum capacity parameters for RAM replacement and expansion on the P15v Gen 2 model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 13 January 2022 |
Additional Notes
- SO-DIMM slots restrict maximum capacity expansion to 64 GB total, compared to standard DIMM configurations that support higher densities on equivalent workstation platforms.
- The Lenovo ThinkPad P15v Gen 2 uses DDR4-3200 memory, which introduces compatibility constraints when sourcing replacement modules. Third-party SO-DIMM sticks rated for higher frequencies will downclock to 3200 MHz, rendering performance gains from faster memory ineffective.
- Dual-slot architecture creates a practical ceiling for cost-effective upgrades. Replacing both modules simultaneously to reach 64 GB requires higher per-module capacity (32 GB per stick), which commands significantly higher per-gigabyte pricing than lower-density options available for 4-slot systems.
- SO-DIMM form factor occupies minimal internal space, but thermal constraints may apply in closed-chassis designs. Memory modules installed in tightly configured workstations can experience elevated operating temperatures, potentially affecting stability under sustained high-performance workloads.
- The 3200 MHz specification implies the system uses an Intel 10th or 11th generation processor with integrated memory controller supporting this frequency. Mixing newer DDR4 modules (frequently rated for higher speeds) with legacy Intel chipsets will result in automatic downclocking to validated specifications.
- Warranty-safe upgrades require sourcing SO-DIMM modules from Lenovo's validated component list or purchasing identical OEM-branded sticks. Third-party modules may function but could void hardware support policies on behalf of the manufacturer.
