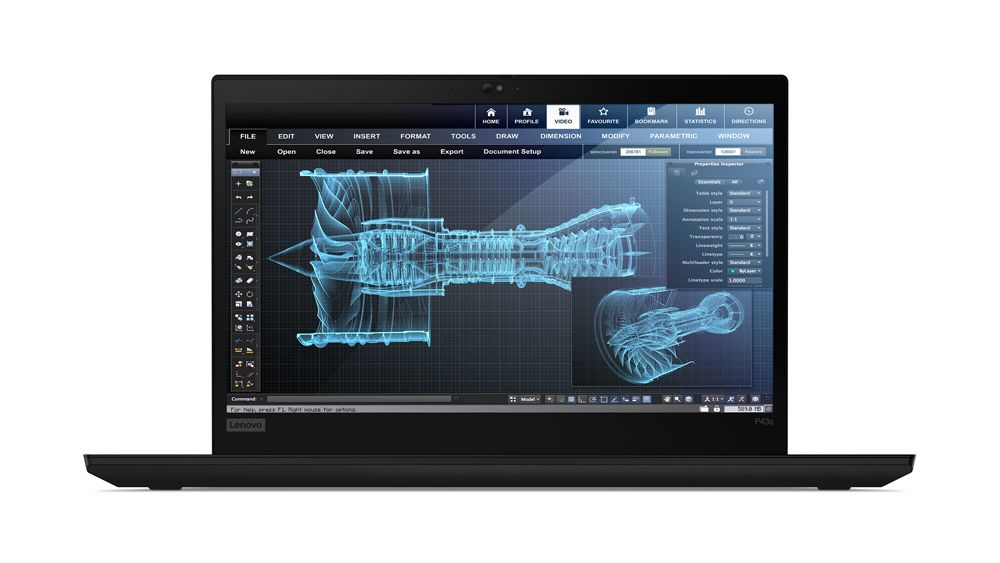

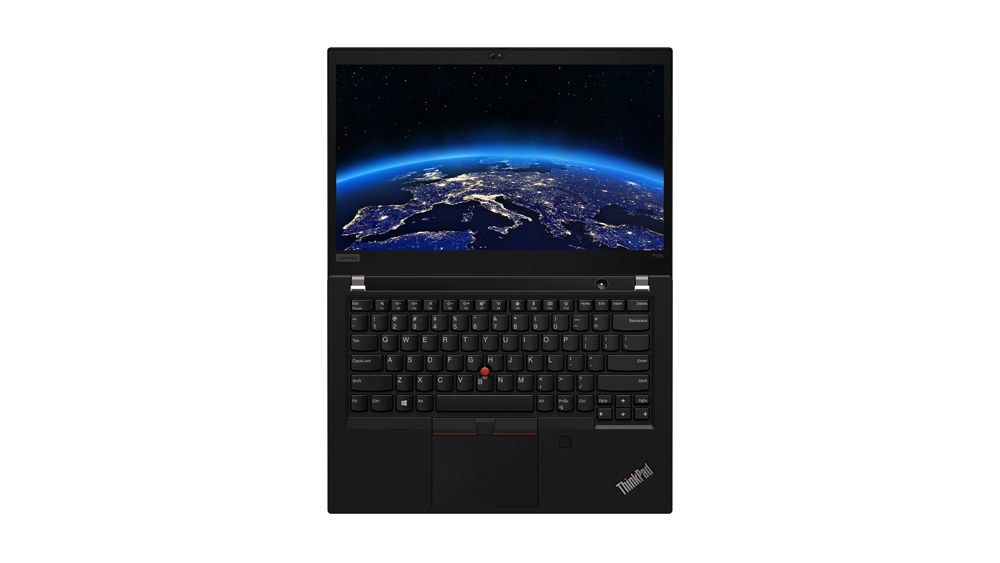

LENOVO ThinkPad P43 RAM upgrade specifications

Lenovo ThinkPad P43 RAM upgrade specifications indicate DDR4-SDRAM memory compatibility with maximum capacity of 48 GB. Laptop features one SO-DIMM slot for memory expansion, supporting 2400 MHz frequency. Upgrade configuration includes on-board memory combined with SO-DIMM slot, enabling compatible memory modules to reach specified maximum RAM capacity. DDR4 specifications define memory performance parameters for system enhancements.

Additional Notes

• The presence of a single SO-DIMM slot alongside permanent on-board memory means that total capacity increases rely on a lopsided configuration where the modular stick likely contains double or quadruple the capacity of the soldered chip.
• Dual-channel memory performance is restricted to the capacity of the smaller on-board module while any remaining capacity on the larger SO-DIMM operates in single-channel mode, creating a potential bandwidth bottleneck for memory-intensive applications.
• The Lenovo ThinkPad P43 motherboard architecture requires a module that supports 2400 MHz to maintain synchronization with the fixed internal memory, as installing faster RAM will result in the system downclocking the new hardware to match the slower soldered speed.
• Internal physical height clearances within the chassis limit upgrades to standard height SO-DIMM modules, making high-profile units with integrated heat spreaders incompatible with the casing.
• The 48 GB maximum capacity threshold indicates that the system supports a single 32 GB module added to a 16 GB soldered base, requiring a high-density non-ECC module to reach peak specifications.
• Replacing or adding memory modules does not void the standard hardware warranty provided the internal components are accessed through the designated bottom cover and no physical damage occurs during the installation process.
