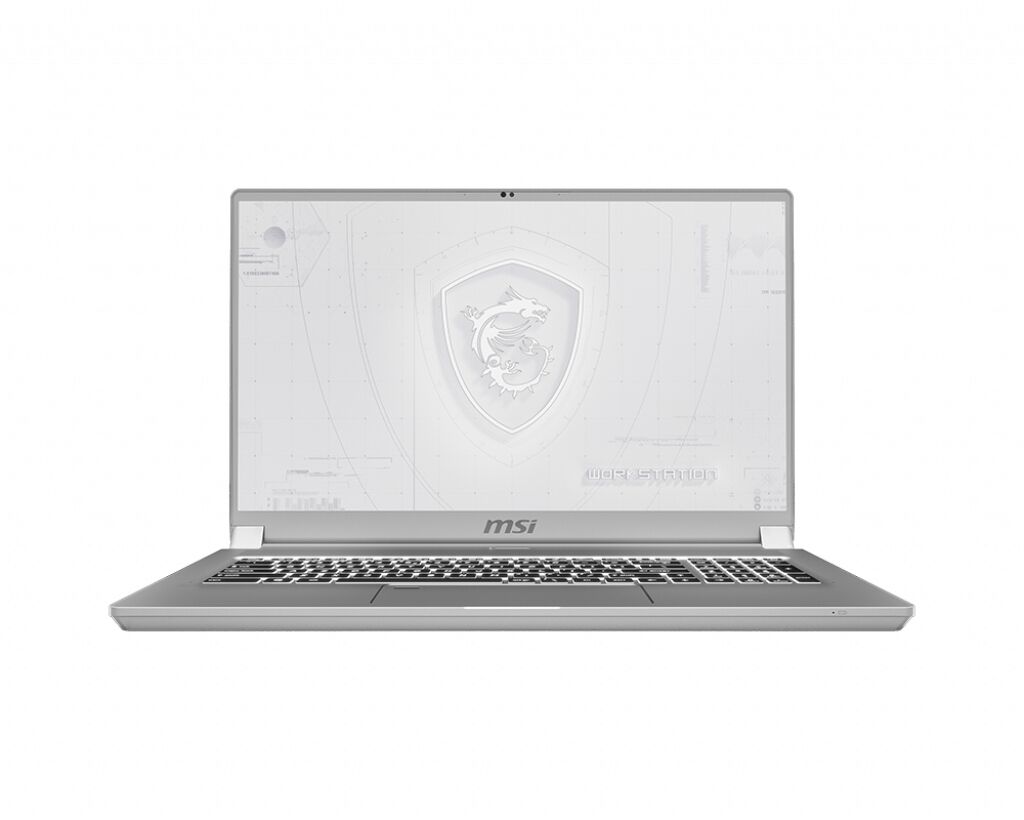

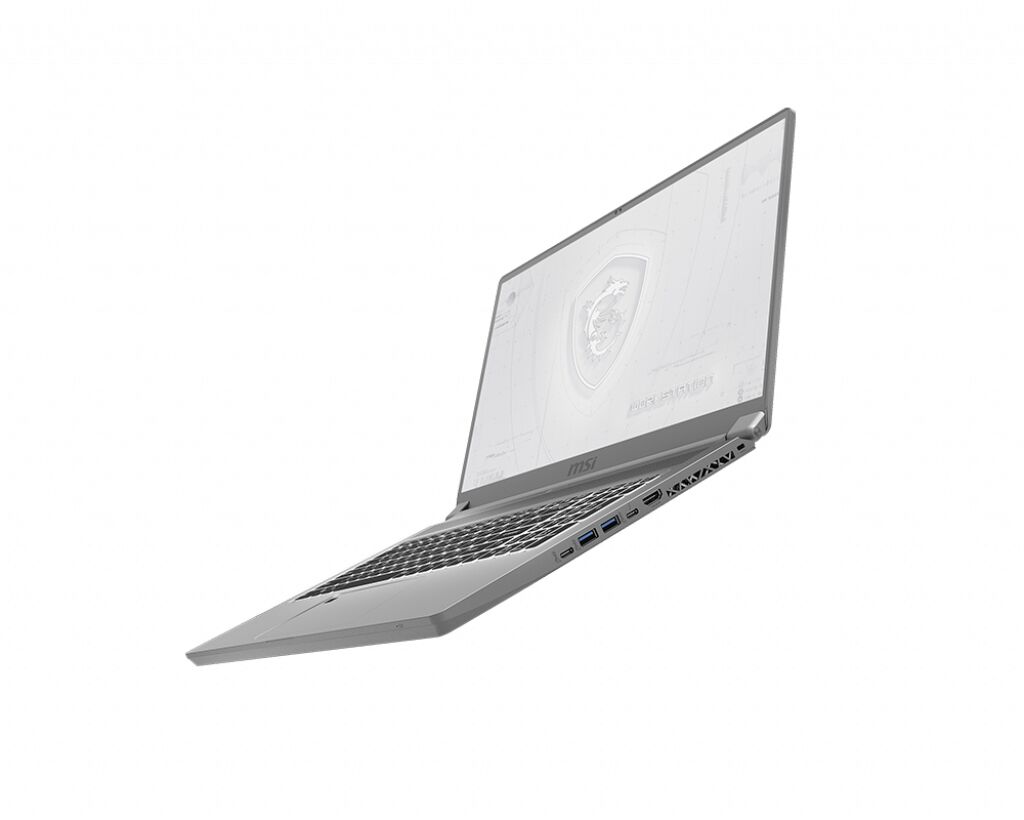

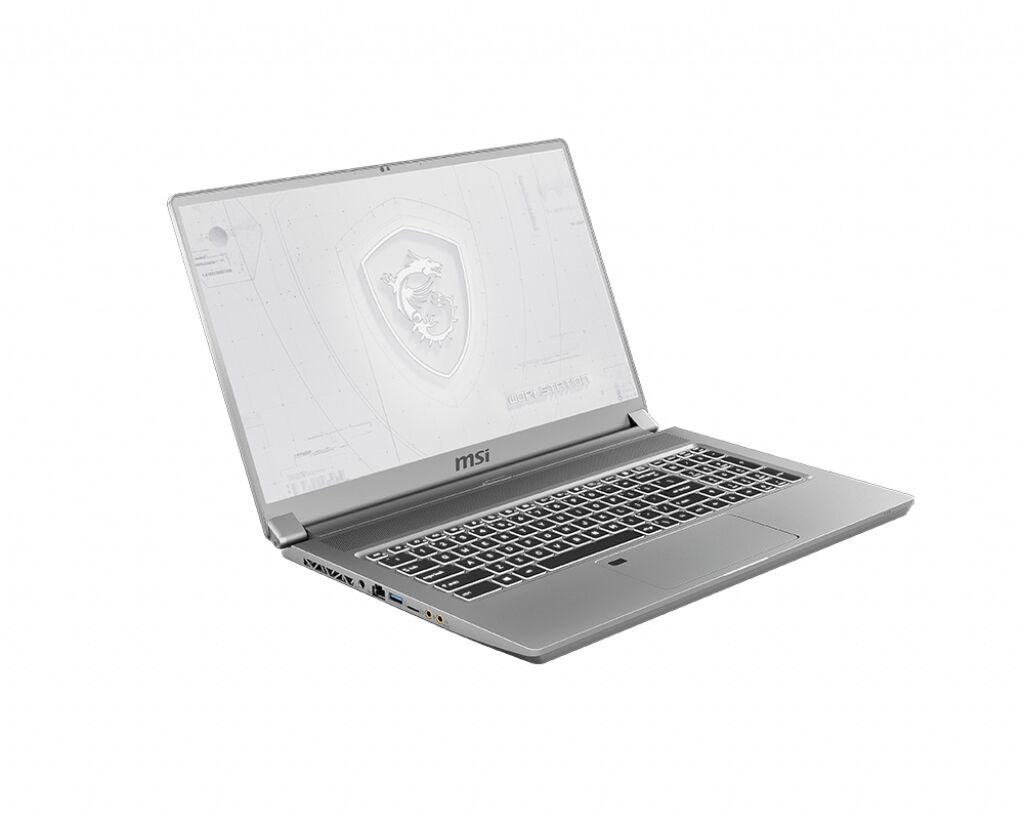

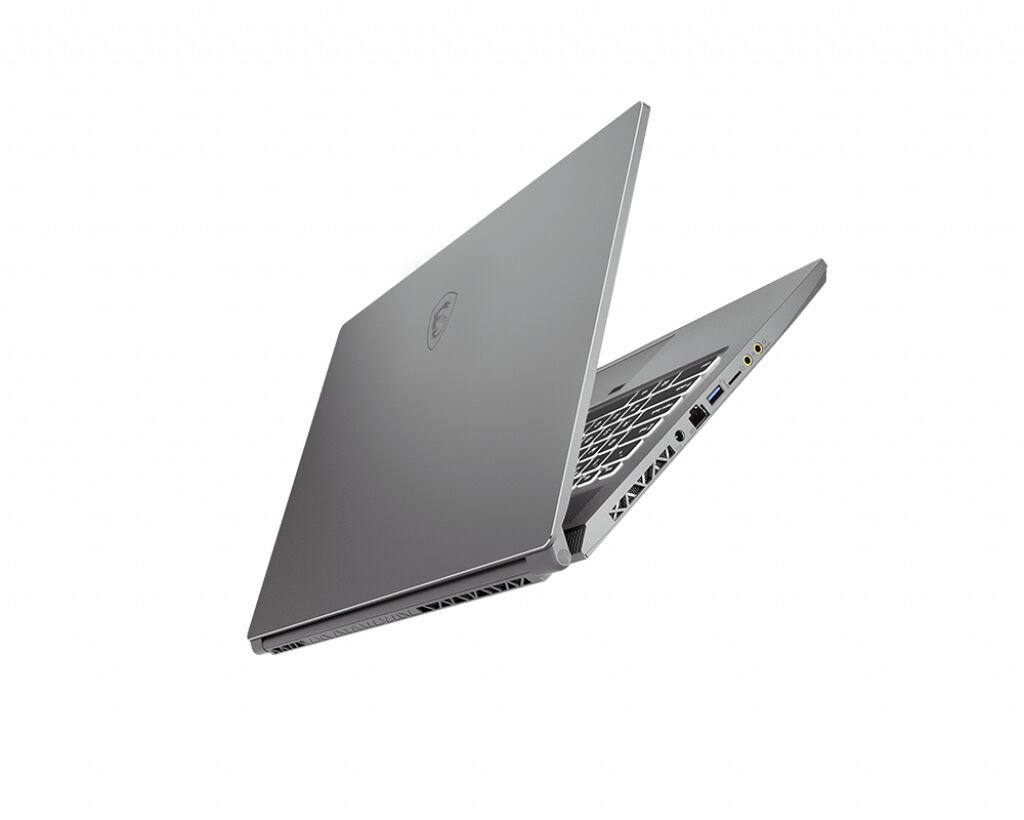

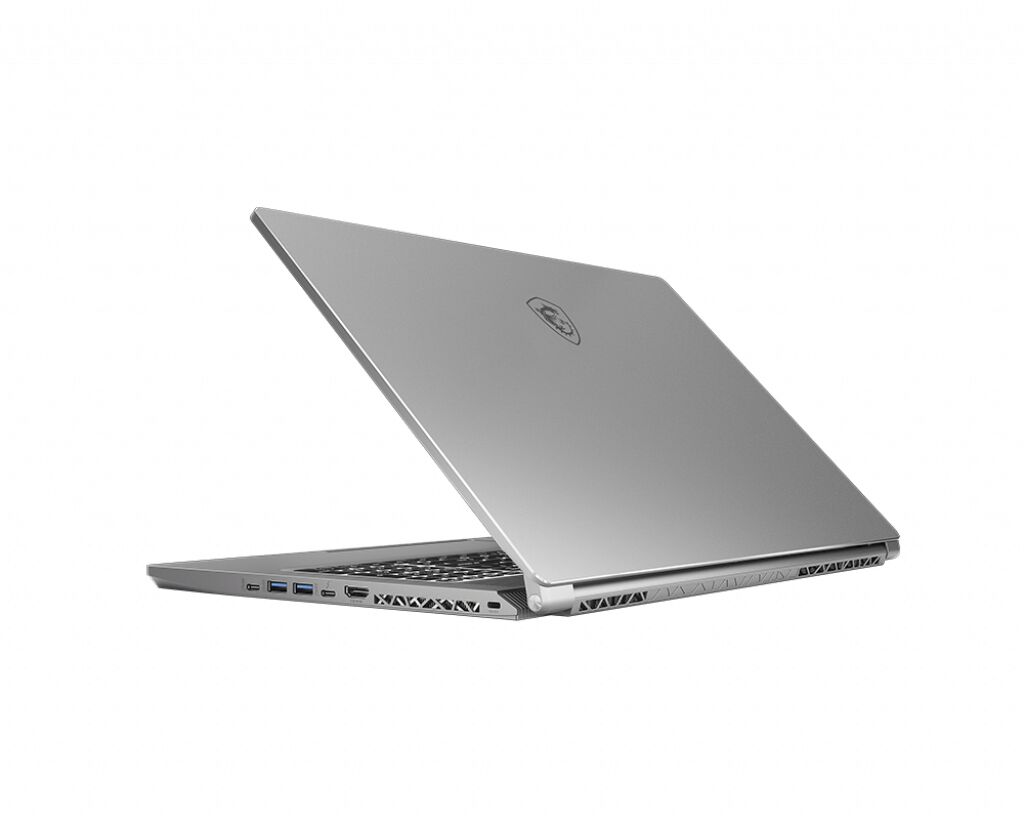

MSI Workstation WS75 10TK-469 RAM upgrade specifications

The MSI WS75 10TK-469 workstation series features two SO-DIMM memory slots supporting DDR4-SDRAM upgrade capacity. Maximum RAM capacity reaches 64 GB with compatible DDR4-2666 MHz modules. Specifications indicate SO-DIMM form factor memory for portable workstation configurations. RAM upgrade compatibility requires DDR4-SDRAM modules matching the specified frequency and form factor specifications for the WS75 series platform.

Additional Notes

• The motherboard architecture of the MSI WS75 10TK-469 requires a flipped motherboard design which necessitates a total disassembly of the cooling solution and internal components to access the memory slots.
• Dual channel memory configurations are strictly limited to 2 modules as the system lacks additional expansion banks for further scaling beyond 64 GB.
• Installing modules with frequencies higher than 2666 MHz results in automatic downclocking to match the hardware controller limitations of the 10th Gen chipset.
• Thermal management remains a critical concern during upgrades because the RAM modules reside on the underside of the PCB where airflow is restricted compared to the primary intake zones.
• Standard voltage 1.2V DDR4 is required to maintain system stability and prevent overheating within the thin workstation chassis.
• Non ECC unbuffered memory is the primary compatibility standard for this specific mobile workstation series which precludes the use of enterprise grade error correcting code modules.
• Achieving 64 GB capacity requires the removal of all factory installed memory since no vacant slots exist for incremental additions.
